TT5375ATB3500

  1. High load capacity
  2. Robust chassis
  3. Foldable side panels

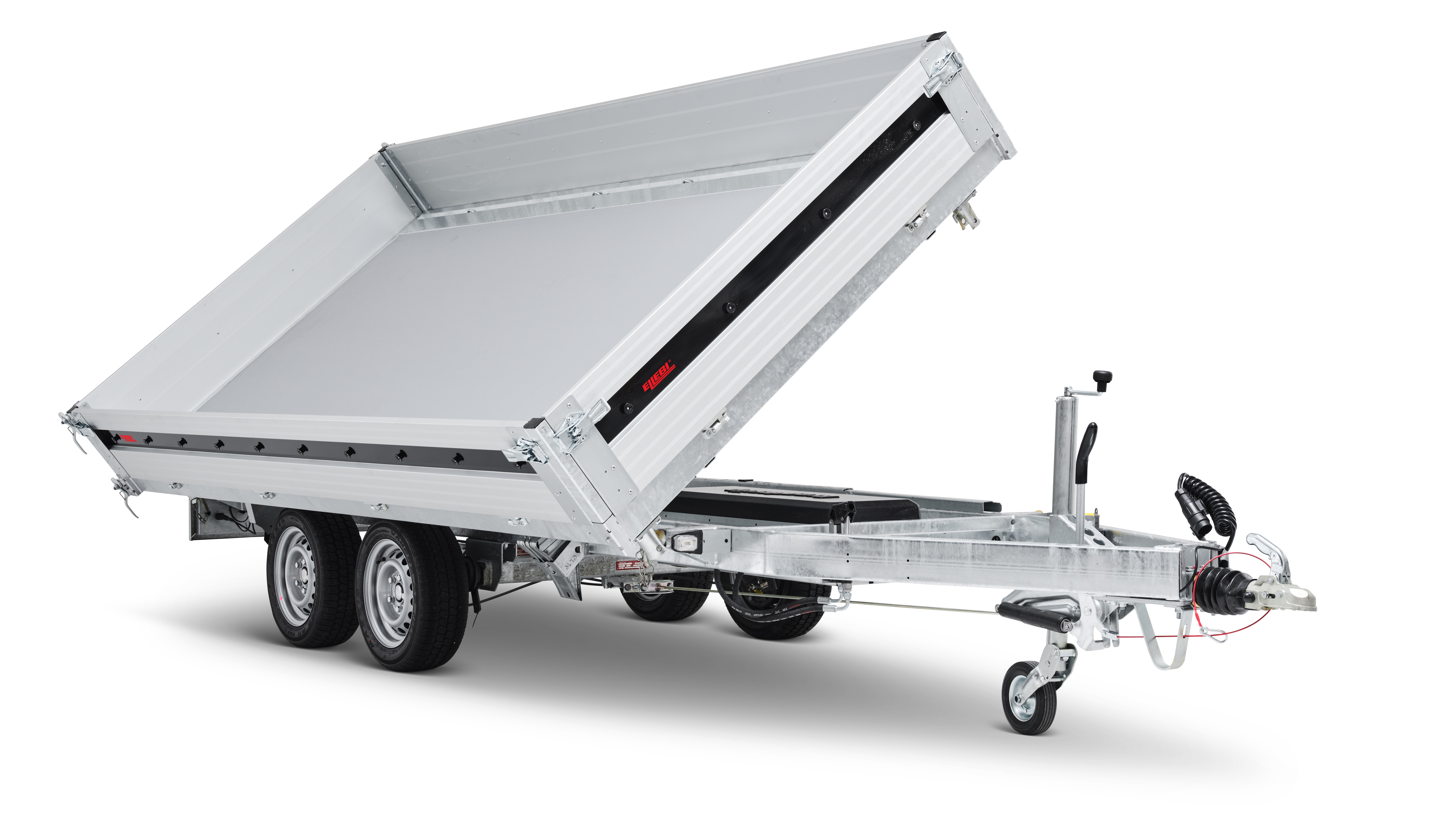

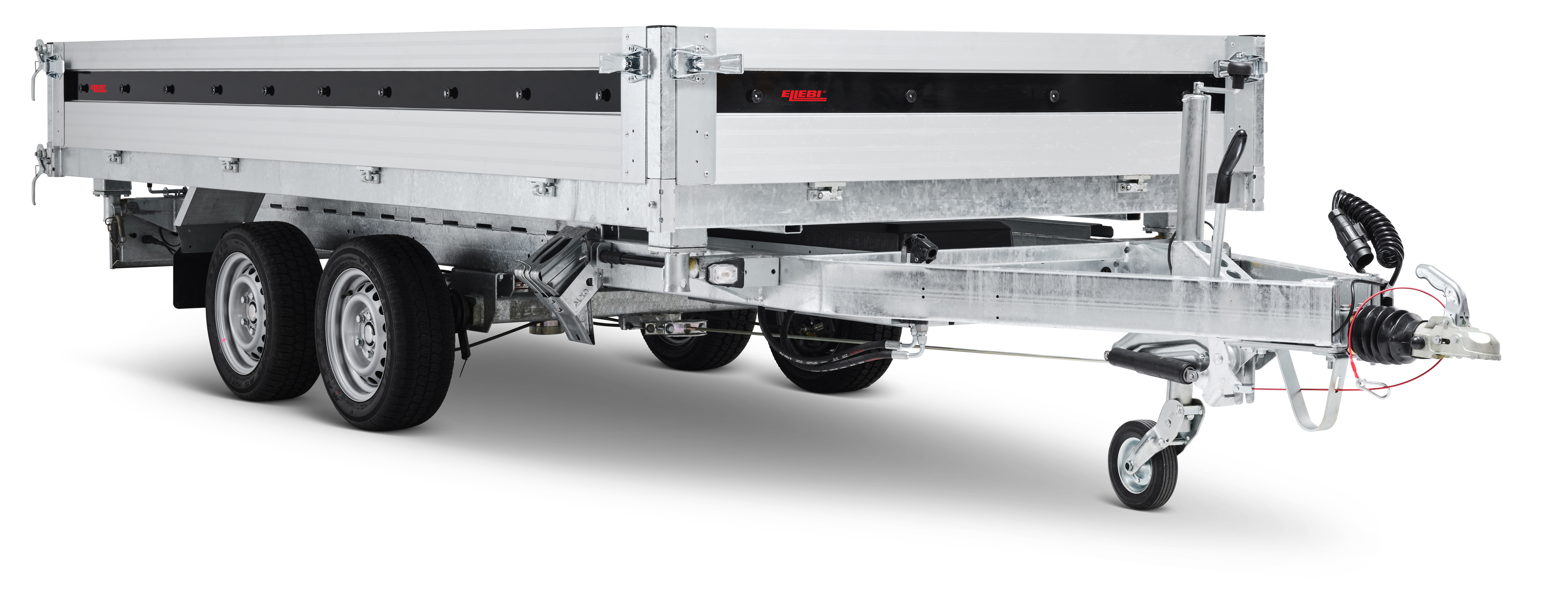

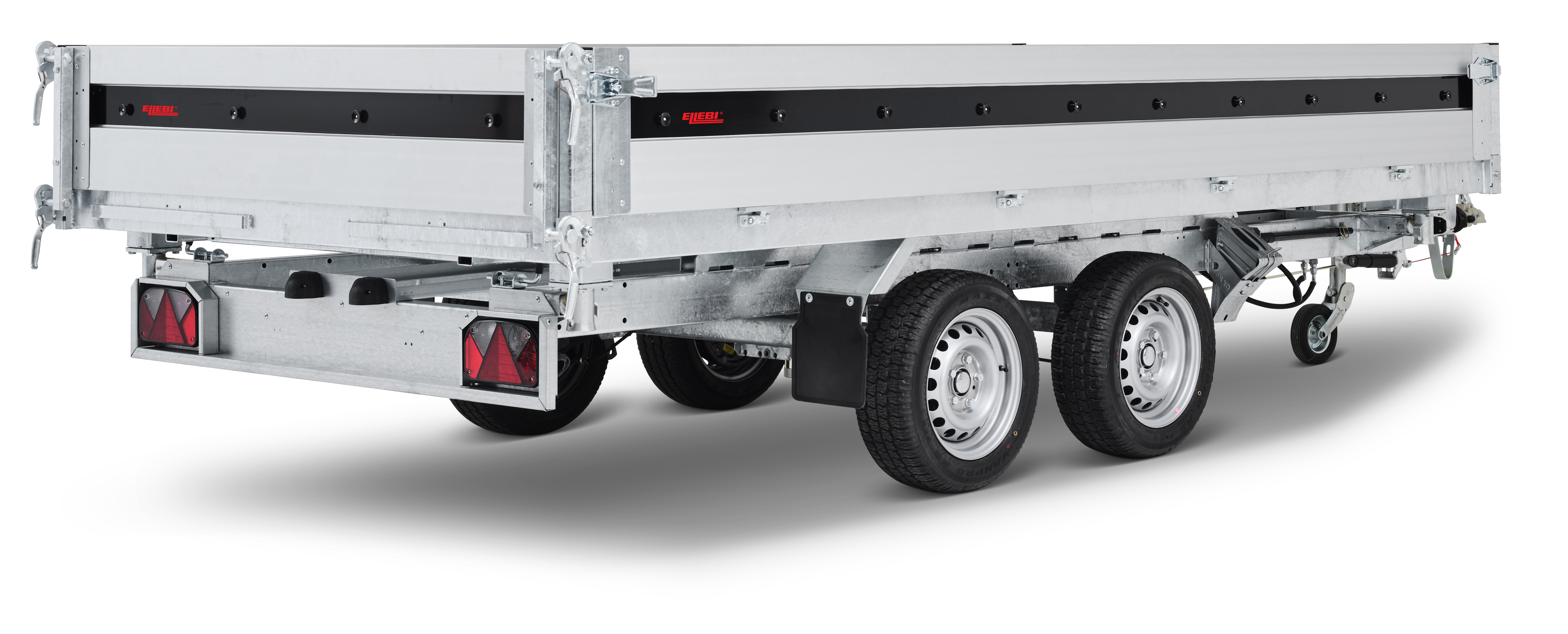

A robust 3-way trailer, perfect for the contractor with high demands on user-friendliness and multifunction. A unique light weight design gives you an extra loading weight up to 2700 kg. Its high tipping angle makes it easy to unload goods such as gravel and soil. TT5375 is prepared for ramps and come with 8 recessed lashing eyes capable of 800 kg each. You can easily load the machines and equipment that the work requires. Aluminum sides and rear hatch that function as a spreading board is standard. Simplify maneuvering by equipping your trailer with wireless-or Bluetooth remote. Many accessories from Serie 5000 can be used and there are also specially developed accessories for Serie TT5000.

Features and benefits

Foldable and removable aluminum side panels

All sides and corner posts are removable which makes it easier to load or onload goods from the trailer. Hight on panels: 350 mm.

Low loading height

740 mm low loading height with 13 inch compact wheels.

Prepared for wireless-and Bluetooth remote

The TT5000 is prepared for wireless remote and Bluetooth (an app on your phone) to control the electric tipping.

Tempo 100

Tempo 100 available as upgrade. Speed regulation approved when equiped with original accessory shockabsorbers.

Back panel as spreader

Back panel kan be used as a spreader

Stop wedges

Stop wedges are included as standard equipment, when storing your trailer for a long period of time the stop wedges permits you block the trailer from moving without using the trailers brakes

Strong side locks

High quality side locks which firmly locks the panels

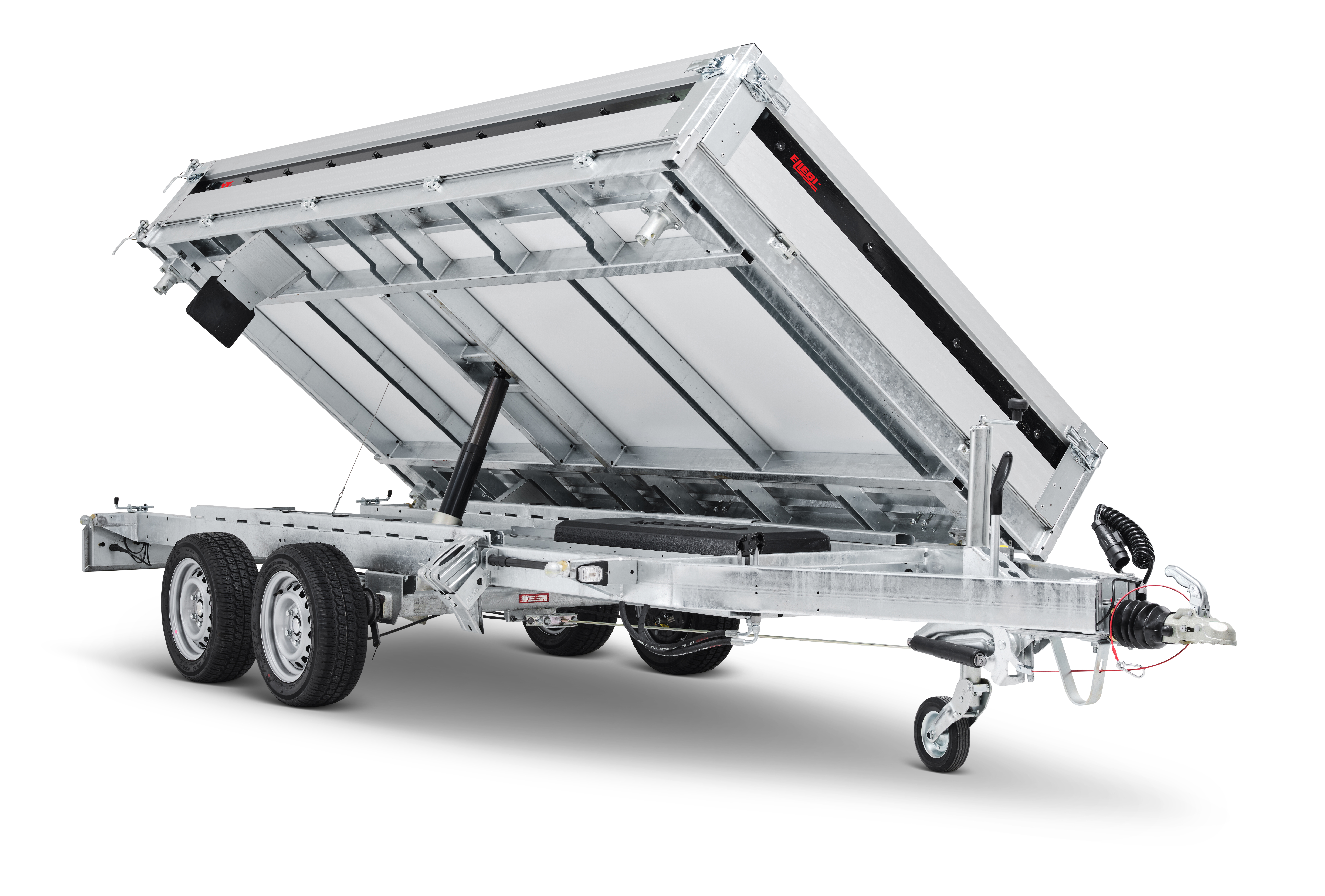

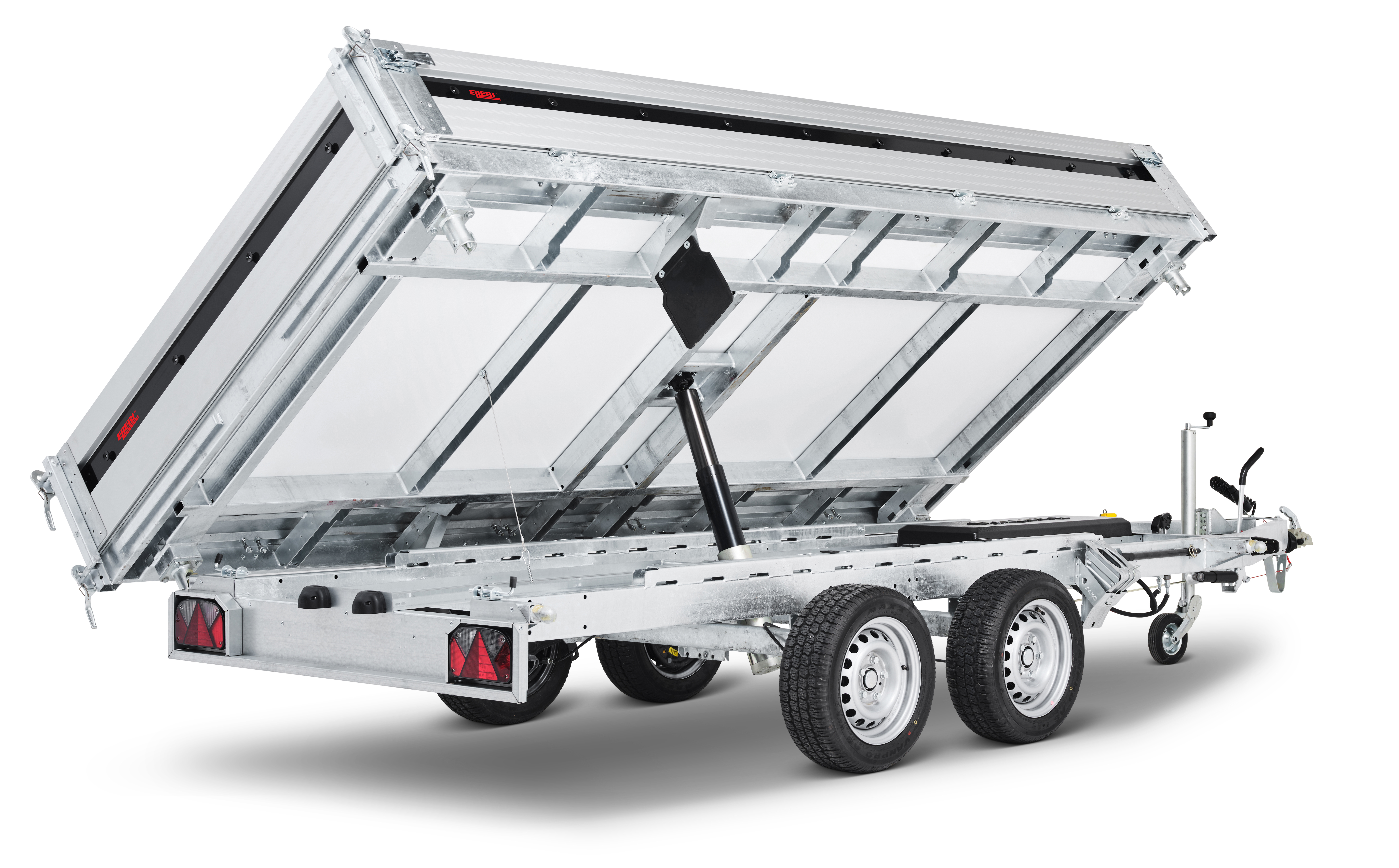

Electric hydraulic tip

Electric hydraulic tip in 3 directions with a four step hydraulic cylinder as standard with manual emergency pump.

Tested & Approved

Designed and tested on different loading and road conditions, and approved to Brenderups high quality standards.

Cover buttons

The trailer is prepared for flat and high covers, attachment for covers pre-assembled

Battery included

80Ah battery included as standard.

Internal heavy duty lashing eyes

6 inset lashing eyes in the steel bed which easily helps you to secure your load.

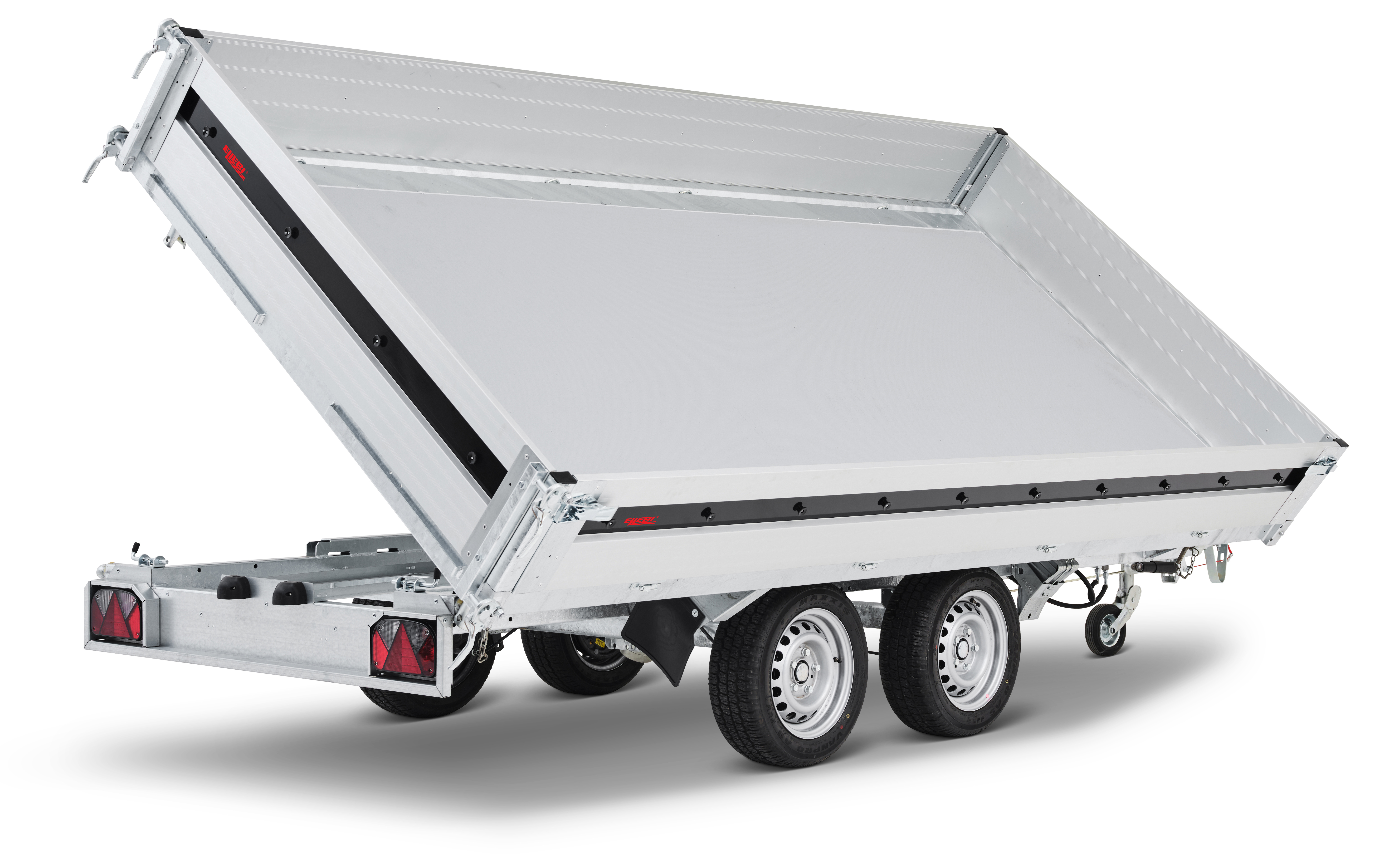

High tilt angle

The 45 degree tilting angle makes tipping easy for any load or cargo.

Protected electric cables

Electric cables inside the frame as standard.

Automatic jockey wheel

Automatic jockey wheel as standard

Prepared for ramps

Holder for ramps included in all models.

High tilt angle

The tipping angle makes tipping easy from all 3 sides.

Stop wedges

Stop wedges are included as standard equipment, when storing your trailer for a long period of time the stop wedges permits you block the trailer from moving without using the trailers brakes

Foldable and removable side panels

All sides and corner posts are removable which makes it easier to load or onload goods from the trailer (driving without corner posts not allowed).

Loading weight

The TT5000 comes in 3 different designs and can load up to 2740 kg.

Easy maintenance

Rear light panel replaceable for easy maintenance.

Robust chassis

Welded hot dipped galvanized full frame steel chassis as standard

Specifications Accessories Document Features and benefits

Specifications

TT5375ATB3500
Article number 315832
Gross weight (kg) ? 3500
Load (kg) ? 2670
Unladen weight (kg) 830
Int dimensions (cm) ? 375x180x35
Ext dimensions (cm) ? 538x195x109
Loading height (mm) 740
Type of sidepanel Aluminum
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels Yes
Tip Yes
Type of tip Hydraul-electric
Tip-protection Yes
Tilt angle backwards 45
Tilt angle side 42
Loading angle (°) 44
Brakes Yes
Number of axels 2
Tyre dimension 195/50R13
No of wheelbolts 5
Rim type Steel
Plug connection type ? Spiral
Adaptercable 13
Coupling Steel sheet
Jockey wheel Yes
Max. vertical load (kg) 250
Internal lashing eyes 8
Premounted cover buttons Yes
Battery included Yes

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Aluminum ramp (mount.)

    Aluminum ramp for series TT5000, 2 ramps, 2.4 meters, 300 mm wide and maximum load of a total of 2650 kg.
    Art nr316472M

  • Wireless remote

    Easy wireless control of the electric tipping. For TT5325
    Art nr314992

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Bluetooth remote

    Control the electric tipping from your phone. For TT5325
    Art nr314993

  • Mounting kit

    For coverstand (5000, 6000, RT)
    Art nr101321

  • High cover 100 cm

    1858x3808x1000mm dark grey for 5375 and TT5375
    Art nr316081

  • Flat cover kit

    1950x3885mm, including buttons and mounting material, for TT5375 and 5000-series
    Art nr315569

  • Tempo100 shock absorber kit

    2.7-3.5T. Tempo 100 available as upgrade. Speed regulation approved when equipped with original accessory shock absorbers.
    Art nr314913

  • Transparts trailer lock

    Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
    Art nr312519

  • Aluminum ramp

    Aluminum ramp for series TT5000, 2 ramps, 2.4 meters, 300 mm wide and maximum load of a total of 2650 kg.
    Art nr316472

  • Propstand kit

    Perfect when you want to load your trailer without having the car connected. For serie TT5000
    Art nr314911

  • High cover 150 cm

    1858x3808x1500mm dark grey for 5375 and TT5375
    Art nr316082

  • Front stand

    Ladder rack 1850x770mm, for 3-way tip (2002-), S-5000
    Art nr113509

  • Tempo100 shock absorber kit

    2.7-3.5T. Tempo 100 available as upgrade. Speed regulation approved when equipped with original accessory shock absorbers. Mounted on TT5325 trailer
    Art nr314913M

  • Spare wheel holder

    For smooth transport of spare wheel, for TT5325 (2021-)
    Art nr314914

  • Toolbox BT4260, TT5325 kit

    Black plastic toolbox, 520x220x280mm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. For BT4000-series.
    Art nr313194

  • Propstand kit (mount.)

    Perfect when you want to load your trailer without having the car connected. Mountred on serie TT5000 trailer
    Art nr314911M
