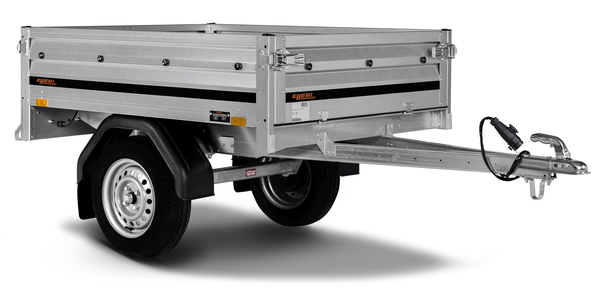

3150SUB500
| Art nr | 310980 |
| Gross weight (kg)? | 500 |
| Load (kg)? | 380 |
| Int dimensions (cm)? | 144x116x35 |
| Brakes | No |
| Tip | No |
High built trailers – mobile work platform
Serie 3000
- Foldable front and back panels
- Internal lashing eyes
- Premounted buttons for covers
Series 3000 is a high built trailer with the wheels positioned under the flatbed to allow a wide bed while keeping the width of the trailer to minimum. The trailers have drop down front and rear panels as standard. Some have the ability to drop down all four sides. Accessories are available. Images are for illustrative purposes only and may show optional equipment.
3150SUB750
Art nr 310981 Gross weight (kg)? 750 Load (kg)? 630 Int dimensions (cm)? 144x116x35 Brakes No Tip No
3150SUB750
Art nr 311296 Gross weight (kg)? 750 Load (kg)? 630 Int dimensions (cm)? 144x116x35 Brakes No Tip No 3150SUB750
Art nr 311395 Gross weight (kg)? 750 Load (kg)? 630 Int dimensions (cm)? 144x116x35 Brakes No Tip No

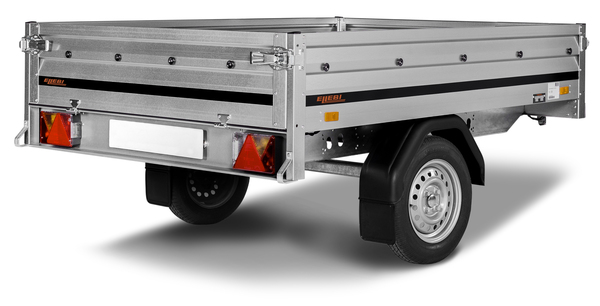

3205SUB500
Art nr 310983 Gross weight (kg)? 500 Load (kg)? 355 Int dimensions (cm)? 205x142x35 Brakes No Tip No 3205SUB750
Art nr 310984 Gross weight (kg)? 750 Load (kg)? 605 Int dimensions (cm)? 205x142x35 Brakes No Tip No
3205SUB750
Art nr 311297 Gross weight (kg)? 750 Load (kg)? 605 Int dimensions (cm)? 205x142x35 Brakes No Tip No 3205SUB750
Art nr 311396 Gross weight (kg)? 750 Load (kg)? 605 Int dimensions (cm)? 205x142x35 Brakes No Tip No 3205SB750
Art nr 313129 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 204x142x35 Brakes Yes Tip No

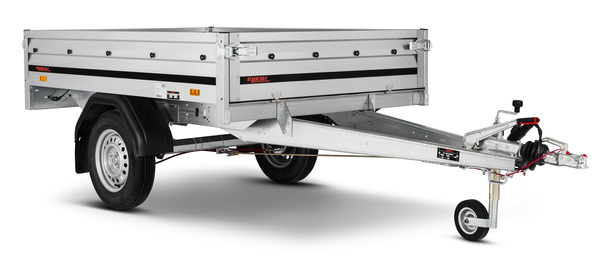

3205SB1000
Art nr 311298 Gross weight (kg)? 1000 Load (kg)? 780 Int dimensions (cm)? 205x142x35 Brakes Yes Tip No
3250SUB750
Art nr 310992 Gross weight (kg)? 750 Load (kg)? 590 Int dimensions (cm)? 250x142x35 Brakes No Tip No 3250SUB750
Art nr 311397 Gross weight (kg)? 750 Load (kg)? 605 Int dimensions (cm)? 205x142x35 Brakes No Tip No

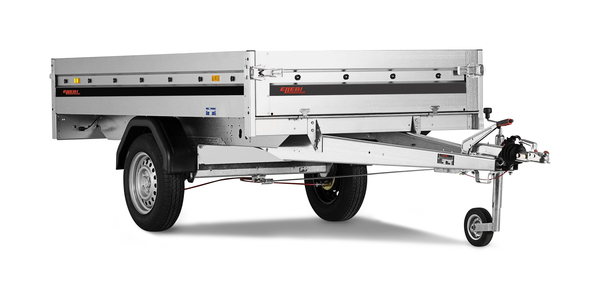

3250SB750
Art nr 316906 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No
3253SUB750
Art nr 317134 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 250x142x35 Brakes No Tip No
3250SB750
Art nr 316919 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No 3250SB1000
Art nr 311299 Gross weight (kg)? 1000 Load (kg)? 760 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No

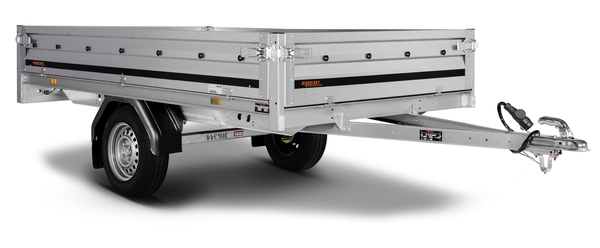

3251SUB750
Art nr 310991 Gross weight (kg)? 750 Load (kg)? 590 Int dimensions (cm)? 250x142x35 Brakes No Tip No

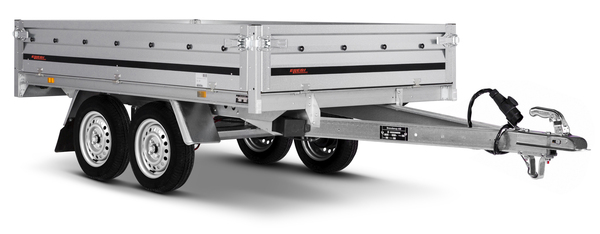

3251STUB750
Art nr 310995 Gross weight (kg)? 750 Load (kg)? 550 Int dimensions (cm)? 250x142x35 Brakes No Tip No
3251SUB750
Art nr 311300 Gross weight (kg)? 750 Load (kg)? 590 Int dimensions (cm)? 250x142x35 Brakes No Tip No 3251STUB750
Art nr 311301 Gross weight (kg)? 750 Load (kg)? 550 Int dimensions (cm)? 250x142x35 Brakes No Tip No

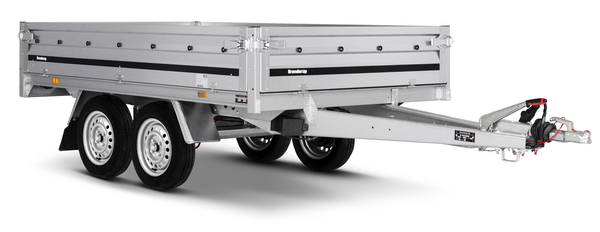

3251STB1000
Art nr 310998 Gross weight (kg)? 1000 Load (kg)? 750 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No 3251STB1000
Art nr 311302 Gross weight (kg)? 1000 Load (kg)? 750 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No
3251STB1000
Art nr 311398 Gross weight (kg)? 1000 Load (kg)? 750 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No
3251STB1300
Art nr 310999 Gross weight (kg)? 1300 Load (kg)? 1050 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No 3251STB1300
Art nr 311399 Gross weight (kg)? 1300 Load (kg)? 1050 Int dimensions (cm)? 250x142x35 Brakes Yes Tip No
Serie 4000
- All sides removable
- Flexible options to secure load
- Side panels in steel or aluminium
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All sides are foldable and removable to allow great access and increased functionality. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.
4260SUB750
Art nr 311033 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260STUB750
Art nr 311035 Gross weight (kg)? 750 Load (kg)? 465 Int dimensions (cm)? 259x143x35 Brakes No Tip No 4260SUB750
Art nr 311058 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260SUB750
Art nr 311303 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No 4260SUB750
Art nr 311400 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260SB750
Art nr 316908 Gross weight (kg)? 750 Load (kg)? 495 Int dimensions (cm)? 259x143x35 Brakes Yes Tip
4260SB750
Art nr 316920 Gross weight (kg)? 750 Load (kg)? 495 Int dimensions (cm)? 259x143x35 Brakes Yes Tip 4260SB1000
Art nr 311054 Gross weight (kg)? 1000 Load (kg)? 705 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260SB1200
Art nr 311038 Gross weight (kg)? 1200 Load (kg)? 905 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260SB1200
Art nr 311059 Gross weight (kg)? 1200 Load (kg)? 905 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260SB1200
Art nr 311305 Gross weight (kg)? 1200 Load (kg)? 945 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB1000
Art nr 311041 Gross weight (kg)? 1000 Load (kg)? 670 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB1200
Art nr 311077 Gross weight (kg)? 1200 Load (kg)? 870 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB1300
Art nr 311043 Gross weight (kg)? 1300 Load (kg)? 970 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1300
Art nr 311062 Gross weight (kg)? 1300 Load (kg)? 970 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1400
Art nr 311064 Gross weight (kg)? 1400 Load (kg)? 1045 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1500
Art nr 311045 Gross weight (kg)? 1500 Load (kg)? 1145 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1990
Art nr 311065 Gross weight (kg)? 1990 Load (kg)? 1635 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB2000
Art nr 311047 Gross weight (kg)? 2000 Load (kg)? 1645 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB2000
Art nr 311307 Gross weight (kg)? 2000 Load (kg)? 1645 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB2000
Art nr 311401 Gross weight (kg)? 2000 Load (kg)? 1645 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260AUB750
Art nr 311034 Gross weight (kg)? 750 Load (kg)? 530 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260ATUB750
Art nr 311036 Gross weight (kg)? 750 Load (kg)? 485 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260AUB750
Art nr 311304 Gross weight (kg)? 750 Load (kg)? 530 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260AB1200
Art nr 311039 Gross weight (kg)? 1200 Load (kg)? 925 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260AB1200
Art nr 311306 Gross weight (kg)? 1200 Load (kg)? 905 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260ATB1000
Art nr 311042 Gross weight (kg)? 1000 Load (kg)? 690 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB1200
Art nr 311078 Gross weight (kg)? 1200 Load (kg)? 890 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB1300
Art nr 311044 Gross weight (kg)? 1300 Load (kg)? 990 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB1500
Art nr 311046 Gross weight (kg)? 1500 Load (kg)? 1165 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260ATB2000
Art nr 311048 Gross weight (kg)? 2000 Load (kg)? 1665 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB2000
Art nr 311308 Gross weight (kg)? 2000 Load (kg)? 1665 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4310STB1400
Art nr 311098 Gross weight (kg)? 1400 Load (kg)? 1005 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310STB1990
Art nr 311099 Gross weight (kg)? 1990 Load (kg)? 1595 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310STB2000
Art nr 311051 Gross weight (kg)? 2000 Load (kg)? 1605 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310STB2000
Art nr 311309 Gross weight (kg)? 2000 Load (kg)? 1605 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310ATB2000
Art nr 311053 Gross weight (kg)? 2000 Load (kg)? 1630 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310ATB2000
Art nr 311310 Gross weight (kg)? 2000 Load (kg)? 1630 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
5000 series
- Bed fits two EUR-pallets
- Foldable and removable sides
- Side panel in aluminum
High built professional trailer for heavy duty daily use. The side panels in aluminium are easy foldable and removable which increases the possibilities for areas of use, the trailer also works as a platform trailer. Internal lashing eyes (max load 400 kg/ties) in the platform makes it very convenient to secure the load. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.
5325ATB1800
Art nr 308388 Gross weight (kg)? 1800 Load (kg)? 1335 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB1800
Art nr 308467 Gross weight (kg)? 1800 Load (kg)? 1335 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No
5325ATB1800
Art nr 311322 Gross weight (kg)? 1800 Load (kg)? 1335 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB1990
Art nr 308389 Gross weight (kg)? 1990 Load (kg)? 1525 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB2000
Art nr 308427 Gross weight (kg)? 2000 Load (kg)? 1535 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB2500
Art nr 308390 Gross weight (kg)? 2500 Load (kg)? 2000 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB2500
Art nr 311213 Gross weight (kg)? 2500 Load (kg)? 2000 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB3000
Art nr 308339 Gross weight (kg)? 3000 Load (kg)? 2435 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB3000
Art nr 308391 Gross weight (kg)? 3000 Load (kg)? 2435 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5325ATB3000
Art nr 311313 Gross weight (kg)? 3000 Load (kg)? 2435 Int dimensions (cm)? 325x180x34 Brakes Yes Tip No 5375ATB1990
Art nr 308392 Gross weight (kg)? 1990 Load (kg)? 1495 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No 5375ATB2000
Art nr 308345 Gross weight (kg)? 2000 Load (kg)? 1505 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No
5375ATB2000
Art nr 311314 Gross weight (kg)? 2000 Load (kg)? 1505 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No 5375ATB2500
Art nr 308393 Gross weight (kg)? 2500 Load (kg)? 1970 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No 5375ATB2500
Art nr 311214 Gross weight (kg)? 2500 Load (kg)? 1970 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No 5375ATB3000
Art nr 308352 Gross weight (kg)? 3000 Load (kg)? 2395 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No 5375ATB3000
Art nr 308394 Gross weight (kg)? 3000 Load (kg)? 2395 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No 5375ATB3000
Art nr 311315 Gross weight (kg)? 3000 Load (kg)? 2395 Int dimensions (cm)? 375x180x34 Brakes Yes Tip No
5420ATB1990
Art nr 308395 Gross weight (kg)? 1990 Load (kg)? 1470 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB2000
Art nr 308353 Gross weight (kg)? 2000 Load (kg)? 1480 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB2000
Art nr 311316 Gross weight (kg)? 2000 Load (kg)? 1480 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB2500
Art nr 308396 Gross weight (kg)? 2500 Load (kg)? 1960 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB2500
Art nr 311215 Gross weight (kg)? 2500 Load (kg)? 1960 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB3000
Art nr 308355 Gross weight (kg)? 3000 Load (kg)? 2370 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB3000
Art nr 308397 Gross weight (kg)? 3000 Load (kg)? 2370 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No
5420ATB3000
Art nr 311317 Gross weight (kg)? 3000 Load (kg)? 2370 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420ATB3500
Art nr 308356 Gross weight (kg)? 3500 Load (kg)? 2845 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420WATB3500
Art nr 308357 Gross weight (kg)? 3500 Load (kg)? 2830 Int dimensions (cm)? 417x204x34 Brakes Yes Tip No 5420ATB3500
Art nr 308399 Gross weight (kg)? 3500 Load (kg)? 2845 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No
5420WATB3500
Art nr 308400 Gross weight (kg)? 3500 Load (kg)? 2830 Int dimensions (cm)? 417x203x34 Brakes Yes Tip No 5420ATB3500
Art nr 311318 Gross weight (kg)? 3500 Load (kg)? 2845 Int dimensions (cm)? 417x180x34 Brakes Yes Tip No 5420WATB3500
Art nr 311319 Gross weight (kg)? 3500 Load (kg)? 2830 Int dimensions (cm)? 417x204x34 Brakes Yes Tip No

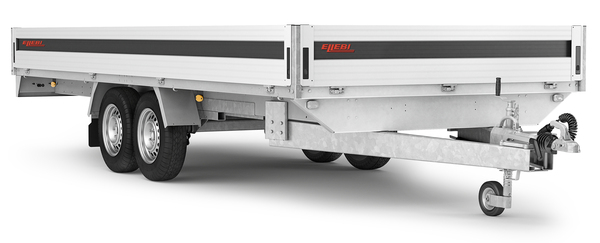

5520WATB3500
Art nr 308358 Gross weight (kg)? 3500 Load (kg)? 2730 Int dimensions (cm)? 517x204x34 Brakes Yes Tip No 5520WATB3500
Art nr 308401 Gross weight (kg)? 3500 Load (kg)? 2730 Int dimensions (cm)? 517x203x34 Brakes Yes Tip No 5520WATB3500
Art nr 311320 Gross weight (kg)? 3500 Load (kg)? 2730 Int dimensions (cm)? 517x204x34 Brakes Yes Tip No
EXPLANATION OF SIGNS
S - Steel side panel
A - Aluminum side panel
T - Tandem (double shaft)
UB - Unbraked trailer
B - Braked trailer
D - Door (CE and 7000 series)
R - Ramp (CE and 7000 series)
W - Wide
HB - Highly built
H - High (CE)
L - Low (CE)
o - Outline (S-Series)
i - Inline (S-Series)
HOW TO INTERPRET THE MODEL NAMES
Example: 5420WATB3500
5420WATB3500 = Series 5000
5420WATB3500 = 420 cm long flat surface
5420WATB3500 = Wide model
5420WATB3500 = Aluminum side panel
5420WATB3500 = Tandem (dual shaft)
5420WATB3500 = Braked trailer
5420WATB3500 = Total weight
