64203500
| Art nr | 108688 |
| Gross weight (kg)? | 3500 |
| Load (kg)? | 2710 |
| Int dimensions (cm)? | 408x204x0 |
| Brakes | Yes |
| Tip | Yes |
| Loading ramps | No |
Machine trailers that withstand heavy use
Serie 6000
- Big platform
- Ramps is standard
- Hydralic tilt and winch
Heavy duty platform trailer developed for though transportation of machines, cars and other heavy objects. Big tiltable platform with high usability. The combination of different accessories makes the trailer very flexible. Images are for illustrative purposes only and may show optional equipment.
6420TB3500
Art nr 305905 Gross weight (kg)? 3500 Load (kg)? 2610 Int dimensions (cm)? 408x204x10 Brakes Yes Tip Yes Loading ramps Yes
6420TB3500
Art nr 311289 Gross weight (kg)? 3500 Load (kg)? 2610 Int dimensions (cm)? 408x205x10 Brakes Yes Tip Yes Loading ramps Yes
65203500
Art nr 108694 Gross weight (kg)? 3500 Load (kg)? 2554 Int dimensions (cm)? 508x204x0 Brakes Yes Tip Yes Loading ramps No 6520TB3500
Art nr 305906 Gross weight (kg)? 3500 Load (kg)? 2449 Int dimensions (cm)? 508x204x10 Brakes Yes Tip Yes Loading ramps Yes 6520TB3500
Art nr 311290 Gross weight (kg)? 3500 Load (kg)? 2449 Int dimensions (cm)? 508x204x10 Brakes Yes Tip Yes Loading ramps Yes
MT-serie
- Integrated propstands on ramp
- Heavy duty ramp
- Low loading angle
MT2610STB1990s
Art nr 313675 Gross weight (kg)? 1990 Load (kg)? 1460 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB1990
Art nr 313833 Gross weight (kg)? 1990 Load (kg)? 1460 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600s
Art nr 313674 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600
Art nr 313682 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600
Art nr 313685 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes
MT2610STB2600
Art nr 313687 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600
Art nr 313832 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600s
Art nr 313841 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600s
Art nr 313844 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes MT2610STB2600s
Art nr 313845 Gross weight (kg)? 2600 Load (kg)? 2070 Int dimensions (cm)? 261x126x27 Brakes Yes Tip No Loading ramps Yes
MT3080STB2700s
Art nr 313676 Gross weight (kg)? 2700 Load (kg)? 2065 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB2700
Art nr 313679 Gross weight (kg)? 2700 Load (kg)? 2065 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes
MT3080STB2700
Art nr 313688 Gross weight (kg)? 2700 Load (kg)? 2065 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB2700
Art nr 313834 Gross weight (kg)? 2700 Load (kg)? 2065 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB2700s
Art nr 313838 Gross weight (kg)? 2700 Load (kg)? 2065 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB2700s
Art nr 313846 Gross weight (kg)? 2700 Load (kg)? 2065 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB3000s
Art nr 313677 Gross weight (kg)? 3000 Load (kg)? 2350 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB3000
Art nr 313680 Gross weight (kg)? 3000 Load (kg)? 2350 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB3000
Art nr 313683 Gross weight (kg)? 3000 Load (kg)? 2350 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB3000
Art nr 313835 Gross weight (kg)? 3000 Load (kg)? 2350 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB3000s
Art nr 313839 Gross weight (kg)? 3000 Load (kg)? 2350 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes MT3080STB3000s
Art nr 313842 Gross weight (kg)? 3000 Load (kg)? 2350 Int dimensions (cm)? 308x152x27 Brakes Yes Tip No Loading ramps Yes

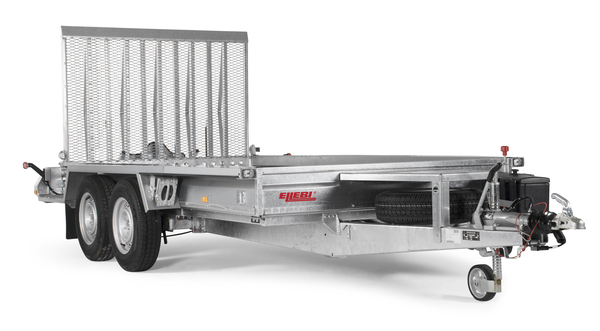

MT3651STB3500s
Art nr 313678 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes MT3651STB3500
Art nr 313681 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes MT3651STB3500
Art nr 313684 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes
MT3651STB3500
Art nr 313689 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes MT3651STB3500
Art nr 313836 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes MT3651STB3500s
Art nr 313840 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes MT3651STB3500s
Art nr 313843 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes MT3651STB3500s
Art nr 313847 Gross weight (kg)? 3500 Load (kg)? 2720 Int dimensions (cm)? 360x179x27 Brakes Yes Tip No Loading ramps Yes
Uni-transporter
- Hydralic tip is standard
- Ramp and tilt gives low loading angle
- Internal lashing eyes for securing your load
Solidly constructed, tippable trailers for professional users transporting construction equipment, cement mixers, garden equipment and the like. Reinforced back panels that works as ramp, recessed tie eyes and hydralic tilt is standard equipment. Images are for illustrative purposes only and may show optional equipment.
UT3100STB2500
Art nr 313851 Gross weight (kg)? 2500 Load (kg)? 1935 Int dimensions (cm)? 313x180x24 Brakes Yes Tip Yes Loading ramps Yes
UT3100STB2500
Art nr 313853 Gross weight (kg)? 2500 Load (kg)? 1935 Int dimensions (cm)? 313x180x24 Brakes Yes Tip Yes Loading ramps Yes
UT4000STB2500
Art nr 313850 Gross weight (kg)? 2500 Load (kg)? 1895 Int dimensions (cm)? 399x180x24 Brakes Yes Tip Yes Loading ramps Yes UT4000STB2500
Art nr 313852 Gross weight (kg)? 2500 Load (kg)? 1895 Int dimensions (cm)? 399x180x24 Brakes Yes Tip Yes Loading ramps Yes
UT4000STB2500
Art nr 313854 Gross weight (kg)? 2500 Load (kg)? 1895 Int dimensions (cm)? 399x180x24 Brakes Yes Tip Yes Loading ramps Yes
EXPLANATION OF SIGNS
S - Steel side panel
A - Aluminum side panel
T - Tandem (double shaft)
UB - Unbraked trailer
B - Braked trailer
D - Door (CE and 7000 series)
R - Ramp (CE and 7000 series)
W - Wide
HB - Highly built
H - High (CE)
L - Low (CE)
o - Outline (S-Series)
i - Inline (S-Series)
HOW TO INTERPRET THE MODEL NAMES
Example: 5420WATB3500
5420WATB3500 = Series 5000
5420WATB3500 = 420 cm long flat surface
5420WATB3500 = Wide model
5420WATB3500 = Aluminum side panel
5420WATB3500 = Tandem (dual shaft)
5420WATB3500 = Braked trailer
5420WATB3500 = Total weight
