FS1425750B

Features and benefits

Bedsize fits wood board

Bedsize fits construction size boards (120x260 cm)

Foldable front panel

Foldable front panel to easier load the trailer and also enable you to transport longer goods.

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Welded corner posts

Welded corner posts for a more robust trailer

Steel profile protects the platform

Better protection when loading goods on the trailer

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Tiltable

Helps you to easier unload your garden waste or load your lawn mover or bicycle to the trailer

Cables protected

Closed V-shape drawbar for protection of cables

External hooks

External hooks for securing your load

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Strong side locks

High quality side locks which firmly locks the panels

Specifications Accessories Features and benefits

Specifications

FS1425750B
Article number 106914
Gross weight (kg) ? 750
Load (kg) ? 535
Unladen weight (kg) 215
Int dimensions (cm) ? 250x138x26
Ext dimensions (cm) ? 386x184x81
Loading height (mm) 550
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip Yes
Type of tip Manual
Loading angle (°) 15
Tip-protection No
Brakes Yes
Number of axels 1
Tyre dimension 145/80R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 6
External hooks 12
Premounted cover buttons No
EAN 5702621069149

Useful with

  • Wheel alu rim

    155/R13", 4 holes, 500kg, with black aluminium rim
    Art nr108847

  • Cover netframe 80 cm

    1456x2580x800mm gray, with 2 adjustable support bar, for FS1425
    Art nr103847

  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741

  • Cargo net

    Black, 1610x2660mm for 2260W
    Art nr312883

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Support bar alu

    Adjustable 1000-1450mm. Price per piece
    Art nr313032

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Plastic hood 100 cm

    1370x2510x1000mm gray (mounting kit 304631 not included), for FS1425
    Art nr104441

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

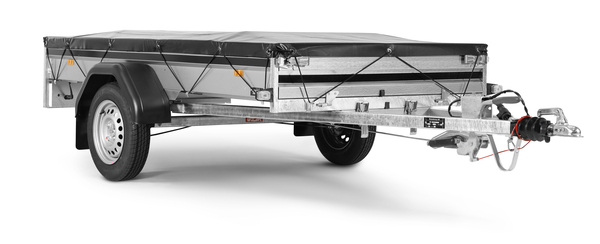

  • Flat cover

    1370x2510mm black for FS1425
    Art nr314516

  • Flat cover

    1370x2510 gray to FS1425
    Art nr302298

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Jockey wheel with mounting kit

    Jockey wheel 102200, clamp 101415, bracket 102814, screws and nuts. Max vertical load on JW 125kg
    Art nr110778
