Support bar alu
Adjustable 1400-2200mm. Price per piece, only available in 12 packs
| Art nr | 313033 |
4310STB2000

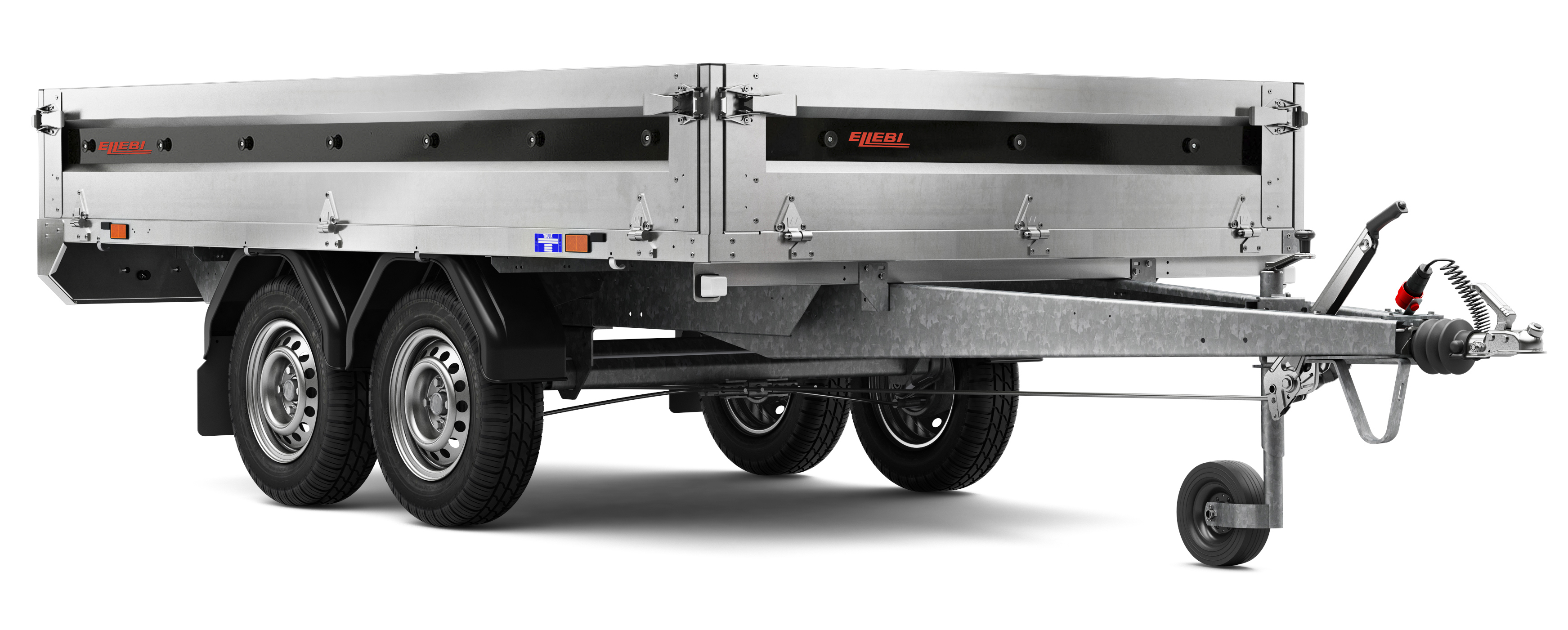

Features and benefits
Foldable and removable side panels
All sides and corner posts are removable which makes it easier to load or onload goods from the trailer (driving without corner posts not allowed).
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car
External hooks
External hooks for securing your load
Strong side locks
High quality side locks which firmly locks the panels
Strong side panel
Firm sidepanel which increases the stability of the trailer
Steel profile protects the platform
Better protection when loading goods on the trailer
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
Heavy duty lashing eyes
Internal integrated foldable lashing eyes, inserted in the steel frame. Max 400 kg
Specifications
| 4310STB2000 | |
| Article number | 311051 |
| Gross weight (kg) ? | 2000 |
| Load (kg) ? | 1605 |
| Unladen weight (kg) | 395 |
| Int dimensions (cm) ? | 309x169x35 |
| Ext dimensions (cm) ? | 466x179x104 |
| Loading height (mm) | 690 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | Yes |
| Tip | No |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Coupling | Steel sheet |
| Internal lashing eyes | 6 |
| External hooks | 8 |
| Premounted cover buttons | Yes |
| EAN | 5702623110511 |
