4260SUB750
| Art nr | 311033 |
| Gross weight (kg)? | 750 |
| Load (kg)? | 510 |
| Int dimensions (cm)? | 259x143x35 |
| Brakes | No |
| Tip | No |
Serie 4000
- All sides removable
- Flexible options to secure load
- Side panels in steel or aluminium
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All sides are foldable and removable to allow great access and increased functionality. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.
4260STUB750
Art nr 311035 Gross weight (kg)? 750 Load (kg)? 465 Int dimensions (cm)? 259x143x35 Brakes No Tip No 4260SUB750
Art nr 311058 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260SUB750
Art nr 311303 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No 4260SUB750
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. Sides in either aluminium or steel are standard and all fold down to allow great access and increase their functionality. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment. change text about sidepanel depending on marketArt nr 311400 Gross weight (kg)? 750 Load (kg)? 510 Int dimensions (cm)? 259x143x35 Brakes No Tip No

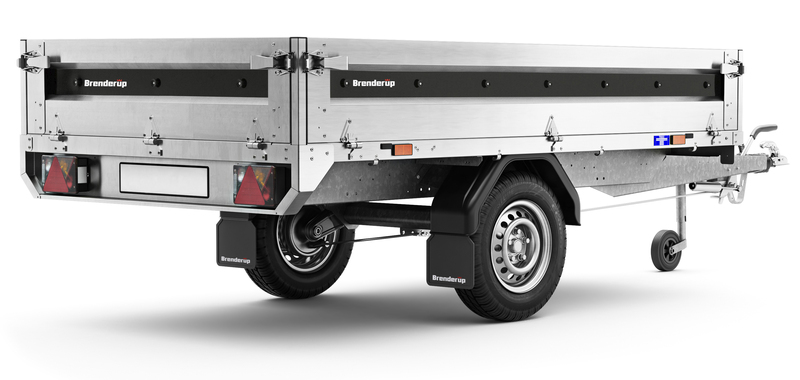

4260SB750
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 316908 Gross weight (kg)? 750 Load (kg)? 495 Int dimensions (cm)? 259x143x35 Brakes Yes Tip
4260SB750
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 316920 Gross weight (kg)? 750 Load (kg)? 495 Int dimensions (cm)? 259x143x35 Brakes Yes Tip 4260SB1000
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 311054 Gross weight (kg)? 1000 Load (kg)? 705 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260SB1200
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 311038 Gross weight (kg)? 1200 Load (kg)? 905 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260SB1200
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 311059 Gross weight (kg)? 1200 Load (kg)? 905 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260SB1200
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 311305 Gross weight (kg)? 1200 Load (kg)? 945 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No

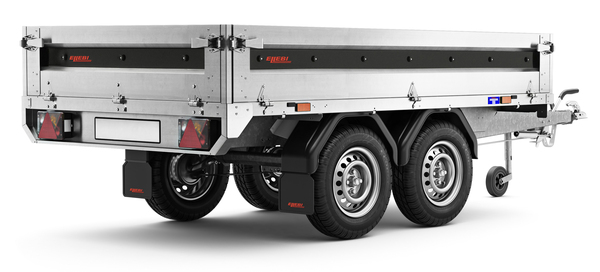

4260STB1000
Art nr 311041 Gross weight (kg)? 1000 Load (kg)? 670 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB1200
Art nr 311077 Gross weight (kg)? 1200 Load (kg)? 870 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB1300
Art nr 311043 Gross weight (kg)? 1300 Load (kg)? 970 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1300
Art nr 311062 Gross weight (kg)? 1300 Load (kg)? 970 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1400
Art nr 311064 Gross weight (kg)? 1400 Load (kg)? 1045 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1500
Art nr 311045 Gross weight (kg)? 1500 Load (kg)? 1145 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB1990
Art nr 311065 Gross weight (kg)? 1990 Load (kg)? 1635 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260STB2000
Art nr 311047 Gross weight (kg)? 2000 Load (kg)? 1645 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB2000
Art nr 311307 Gross weight (kg)? 2000 Load (kg)? 1645 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260STB2000
Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.Art nr 311401 Gross weight (kg)? 2000 Load (kg)? 1645 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No

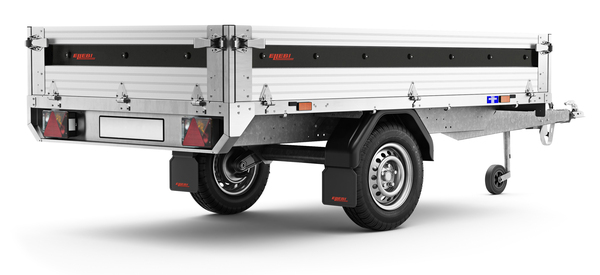

4260AUB750
Art nr 311034 Gross weight (kg)? 750 Load (kg)? 530 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260ATUB750
Art nr 311036 Gross weight (kg)? 750 Load (kg)? 485 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260AUB750
Art nr 311304 Gross weight (kg)? 750 Load (kg)? 530 Int dimensions (cm)? 259x143x35 Brakes No Tip No
4260AB1200
Art nr 311039 Gross weight (kg)? 1200 Load (kg)? 925 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260AB1200
Art nr 311306 Gross weight (kg)? 1200 Load (kg)? 905 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No

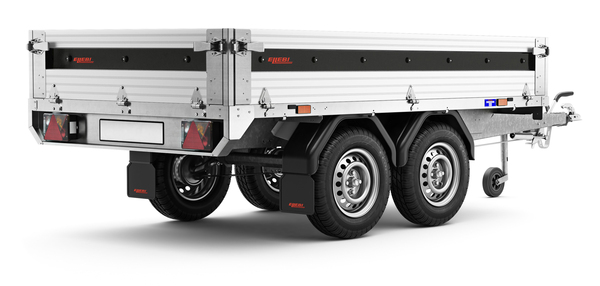

4260ATB1000
Art nr 311042 Gross weight (kg)? 1000 Load (kg)? 690 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB1200
Art nr 311078 Gross weight (kg)? 1200 Load (kg)? 890 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB1300
Art nr 311044 Gross weight (kg)? 1300 Load (kg)? 990 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB1500
Art nr 311046 Gross weight (kg)? 1500 Load (kg)? 1165 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4260ATB2000
Art nr 311048 Gross weight (kg)? 2000 Load (kg)? 1665 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No 4260ATB2000
Art nr 311308 Gross weight (kg)? 2000 Load (kg)? 1665 Int dimensions (cm)? 259x143x35 Brakes Yes Tip No
4310STB1400
Art nr 311098 Gross weight (kg)? 1400 Load (kg)? 1005 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310STB1990
Art nr 311099 Gross weight (kg)? 1990 Load (kg)? 1595 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310STB2000
Art nr 311051 Gross weight (kg)? 2000 Load (kg)? 1605 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310STB2000
Art nr 311309 Gross weight (kg)? 2000 Load (kg)? 1605 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No

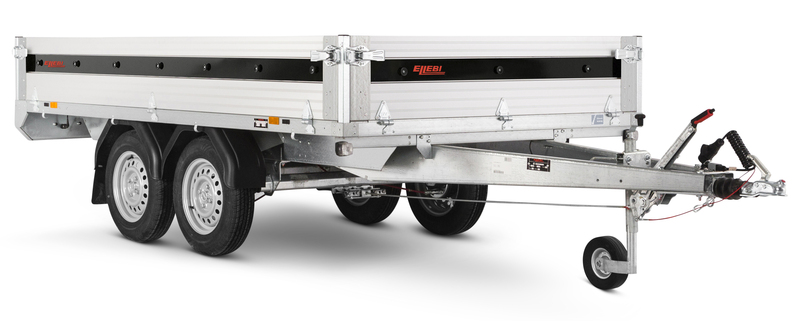

4310ATB2000
Art nr 311053 Gross weight (kg)? 2000 Load (kg)? 1630 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
4310ATB2000
Art nr 311310 Gross weight (kg)? 2000 Load (kg)? 1630 Int dimensions (cm)? 309x169x35 Brakes Yes Tip No
EXPLANATION OF SIGNS
S - Steel side panel
A - Aluminum side panel
T - Tandem (double shaft)
UB - Unbraked trailer
B - Braked trailer
D - Door (CE and 7000 series)
R - Ramp (CE and 7000 series)
W - Wide
HB - Highly built
H - High (CE)
L - Low (CE)
o - Outline (S-Series)
i - Inline (S-Series)
HOW TO INTERPRET THE MODEL NAMES
Example: 5420WATB3500
5420WATB3500 = Series 5000
5420WATB3500 = 420 cm long flat surface
5420WATB3500 = Wide model
5420WATB3500 = Aluminum side panel
5420WATB3500 = Tandem (dual shaft)
5420WATB3500 = Braked trailer
5420WATB3500 = Total weight
