4260SB750
- All sides removable
- Flexible options to secure load
- Side panels in steel

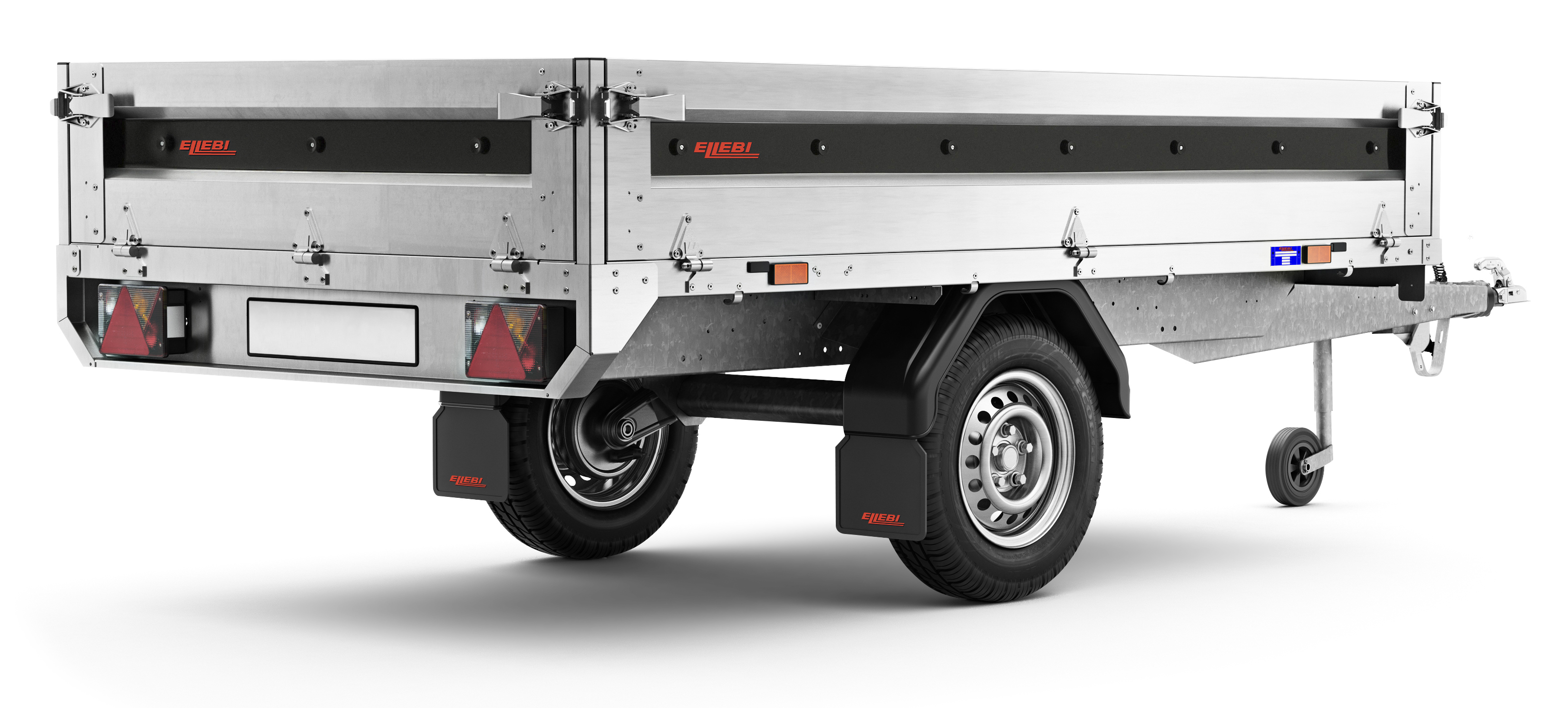

Serie 4000 has been constructed for contractors in mind due to the capacity provided by the high sides and under-mounted wheels. This model is equipped with a single axle. A reinforced steel profile around the bed protects the bed when using a forklift to load the trailer. Tiedown points located on the steel profile gives you easy access to secure your load. All side panels in steel and foldable. Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.
Features and benefits
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
External hooks
External hooks for securing your load
Strong side locks
High quality side locks which firmly locks the panels
Strong side panel
Firm sidepanel which increases the stability of the trailer
Steel profile protects the platform
Better protection when loading goods on the trailer
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
Heavy duty lashing eyes
Internal integrated foldable lashing eyes, inserted in the steel frame. Max 400 kg
Specifications
| 4260SB750 | |
| Article number | 316920 |
| Gross weight (kg) ? | 750 |
| Load (kg) ? | 495 |
| Unladen weight (kg) | 295 |
| Int dimensions (cm) ? | 259x143x35 |
| Ext dimensions (cm) ? | 417x154x103 |
| Loading height (mm) | 690 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | Yes |
| Brakes | Yes |
| Number of axels | 1 |
| Tyre dimension | 155R13C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Coupling | Steel sheet |
| Internal lashing eyes | 6 |
| External hooks | 8 |
| Premounted cover buttons | Yes |
| EAN | 5702623169205 |
