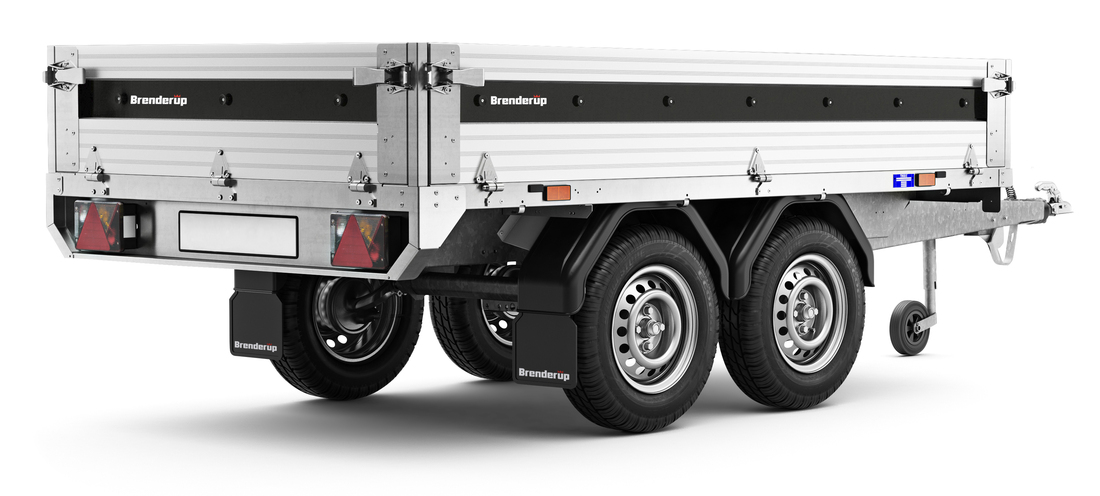

Cargo net
Black, 1510x2670mm
| Art nr | 115594 |
4260ATUB750
Features and benefits
Foldable and removable side panels
All sides and corner posts are removable which makes it easier to load or onload goods from the trailer (driving without corner posts not allowed).
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car
External hooks
External hooks for securing your load
Heavy duty lashing eyes
Internal integrated foldable lashing eyes, inserted in the steel frame. Max 400 kg
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled
Specifications
| 4260ATUB750 | |
| Article number | 311036 |
| Gross weight (kg) ? | 750 |
| Load (kg) ? | 485 |
| Unladen weight (kg) | 265 |
| Int dimensions (cm) ? | 259x143x35 |
| Ext dimensions (cm) ? | 410x149x104 |
| Loading height (mm) | 690 |
| Type of sidepanel | Aluminum |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | Yes |
| Tip | No |
| Brakes | No |
| Number of axels | 2 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Coupling | Steel sheet |
| Internal lashing eyes | 6 |
| External hooks | 8 |
| Premounted cover buttons | Yes |
| EAN | 5702623110368 |
Useful with
High cover 60 cm
1430x2580x900mm gray for cover stand (4260)Art nr 107755
Stop wedge
Black plastic 800kg (max total weight 2500kg)Art nr 306828
Support bar alu
Adjustable 1400-2200mm. Price per piece, only available in 12 packsArt nr 313033
Cover stand 100 cm
1430x2580x1000mm (4260, BT4260)
High side extension kit 35 cm
Aluminium, 1430x2580x350mm , for 4260 (2013-)
High side extension kit 35 cm
Steel, 1420x2580x350mm for 4260, BT4260 (2020-)
Front stand
1480x930mm for rear tip / 4000 -series kit
Spare wheel supporter kit
For S-4000Cover stand 150 cm
1490x2640x1500mm (4260, BT4260)
Alu X8 155/80R13
Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kgArt nr 316169 Alu X8 155/80R13 (mounted)
Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailerArt nr 316169M
High side extension kit 35 cm
Steel, 1430x2580x350mm , for 4260 (2013-)
Mesh side kit 50 cm
1430x2600x500mm with foldable sides, for 4260 (2013-)
High cover 150 cm
1430x2580x1500mm gray for cover stand (4260, BT4260)
Meshside cover 50 cm
1500x2660x520mm dark gray, to 4260 (2020-)Art nr 313288 Cover stand 60 cm
1490x2640x600mm (4260, BT4260)
High side extension kit 35 cm
1420x2580x350mm Alu for S-4000, BT4260 (2021-)
Holder for wheel chock
Black plastic, fits to 306828Art nr 306829

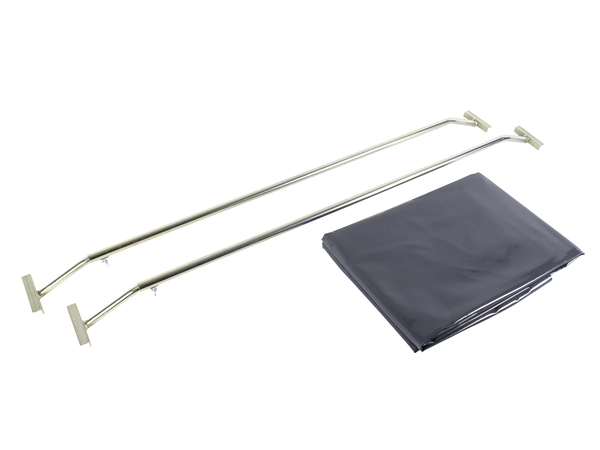

Accessory kit
For 4260W-trailer type 1. Flatcover including supportbarsHigh cover 100 cm
1430x2580x1000mm gray for cover stand (4260)Art nr 101303
Mounting kit
For cover stand, serie 4000 with cornerposts (4260)
Transparts trailer lock
Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519Art nr 313945
Flat cover
1500x2650 dark gray to 4260
