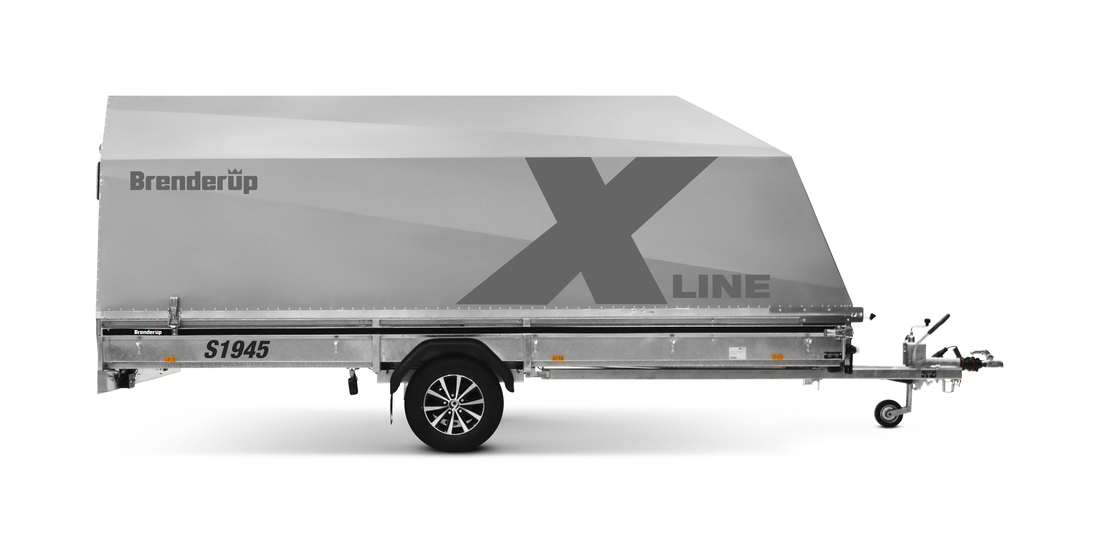

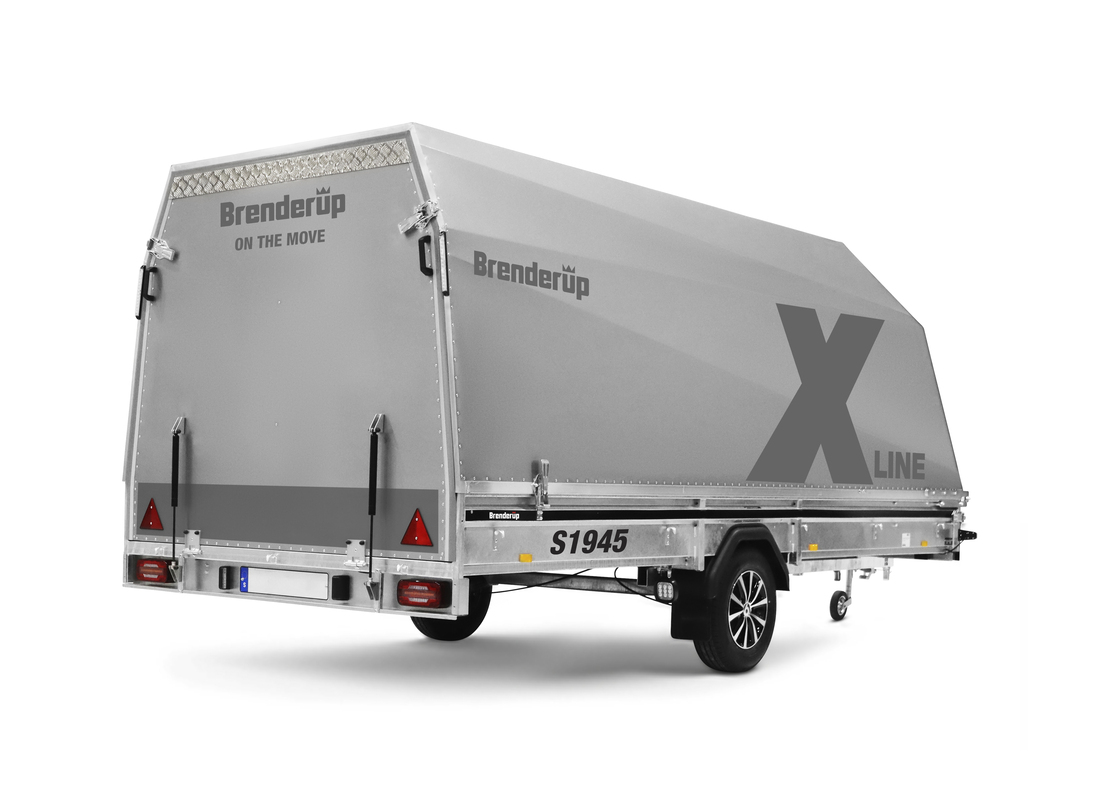

S1945B1240 i X-line Silver
Features and benefits
Bedsize
External hooks
External hooks for securing your load
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load

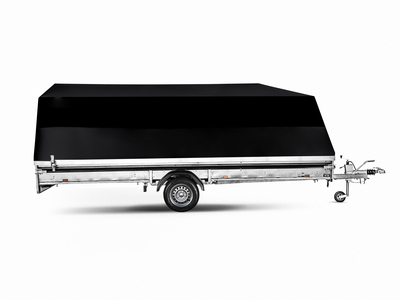

Hood as standard
Reinforced side panel
For better stability and stronger trailer
Welded chassi
A welded chassis give a more robust and steady trailer
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car
Frontcover
Plastic cover in black that protects the front panel from salt and stones.
Hot dipped chassi
The chassis is hot dipped.
Heavy duty lashing eyes
Internal integrated foldable lashing eyes, inserted in the steel frame. Max 400 kg
Aluminiumkåpa som standard
Hood as standard
Cables protected
Closed V-shape drawbar for protection of cables
Specifications
| S1945B1240 i X-line Silver | |
| Article number | 316768 |
| Gross weight (kg) ? | 1240 |
| Load (kg) ? | 690 |
| Unladen weight (kg) | 550 |
| Int dimensions (cm) ? | 450x188x26 |
| Inside measurements (cm) | 163 |
| Ext dimensions (cm) ? | 598x200x83 |
| Loading height (mm) | 560 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |

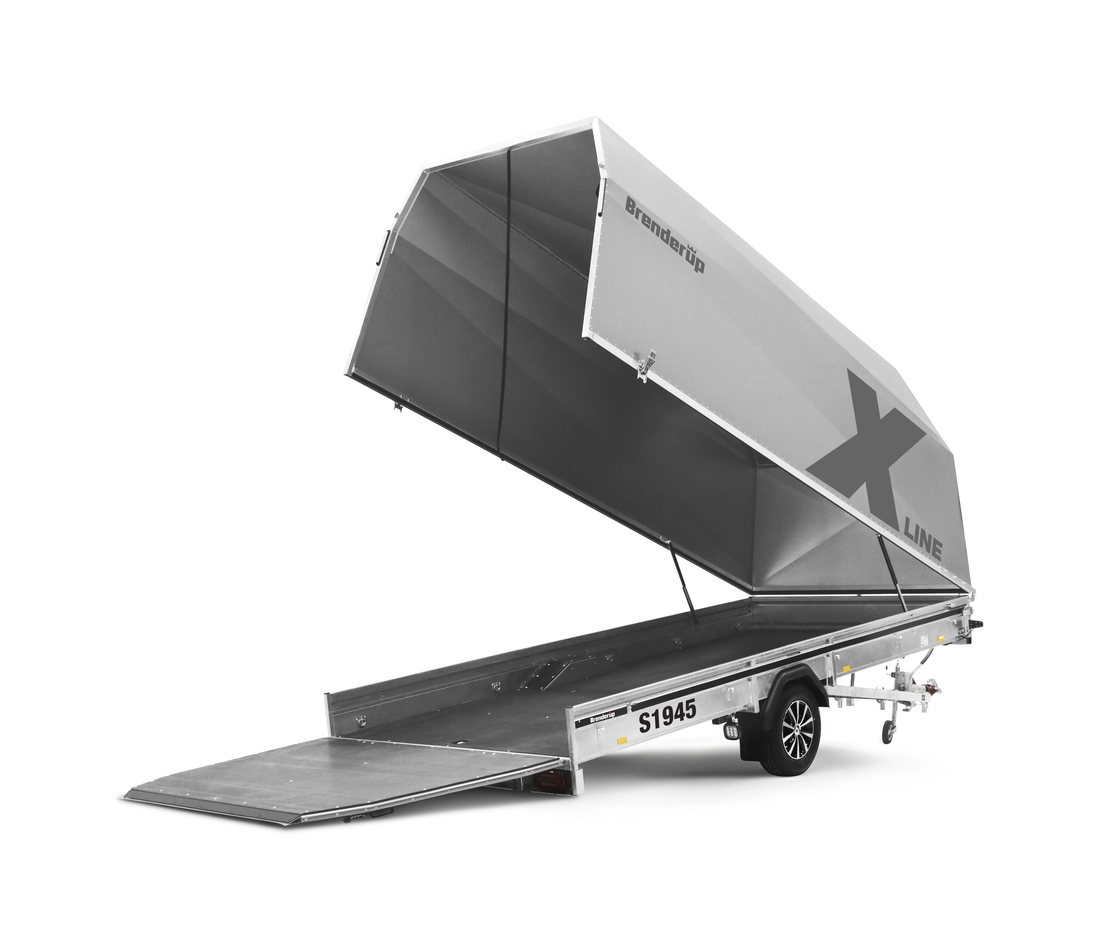

| Tip | Yes |
| Loading angle (°) | 11 |
| Type of tip | Screw |
| Tip-protection | No |

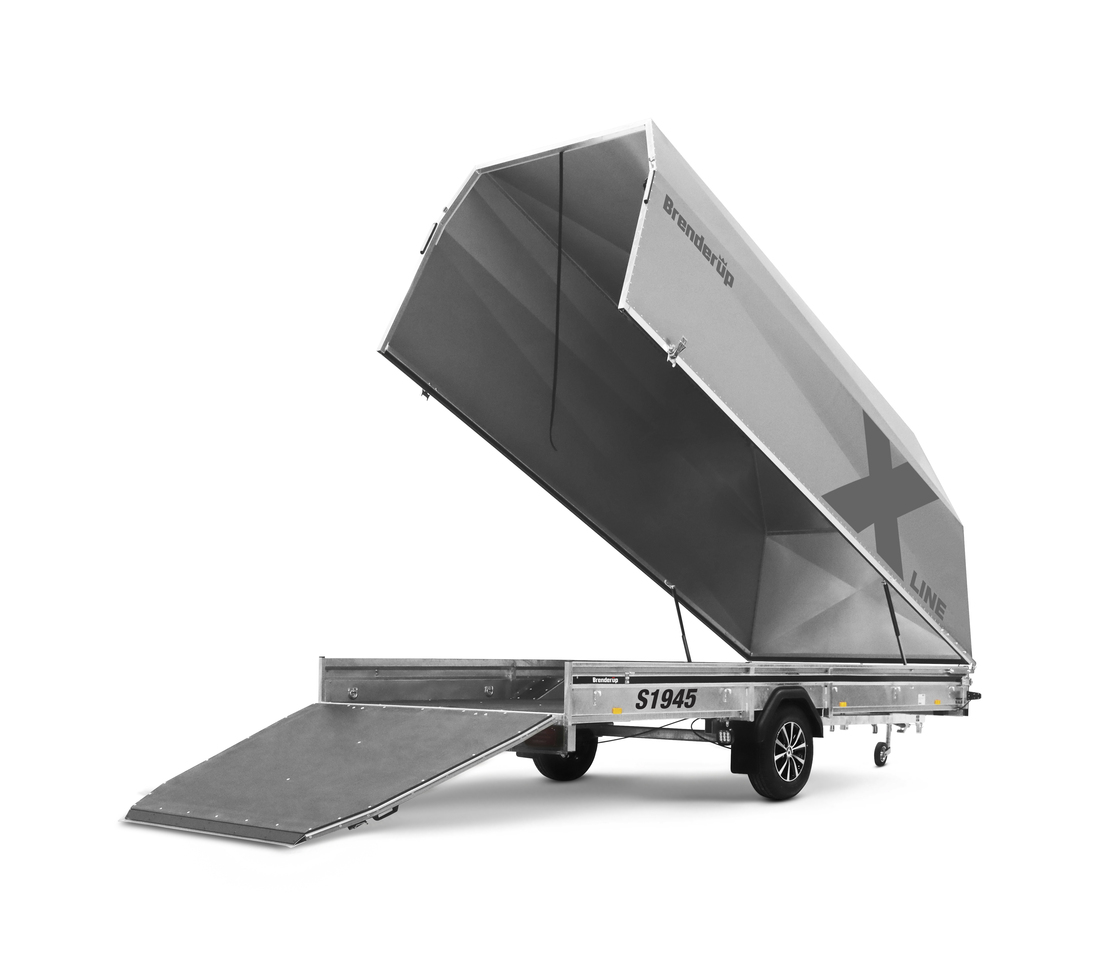

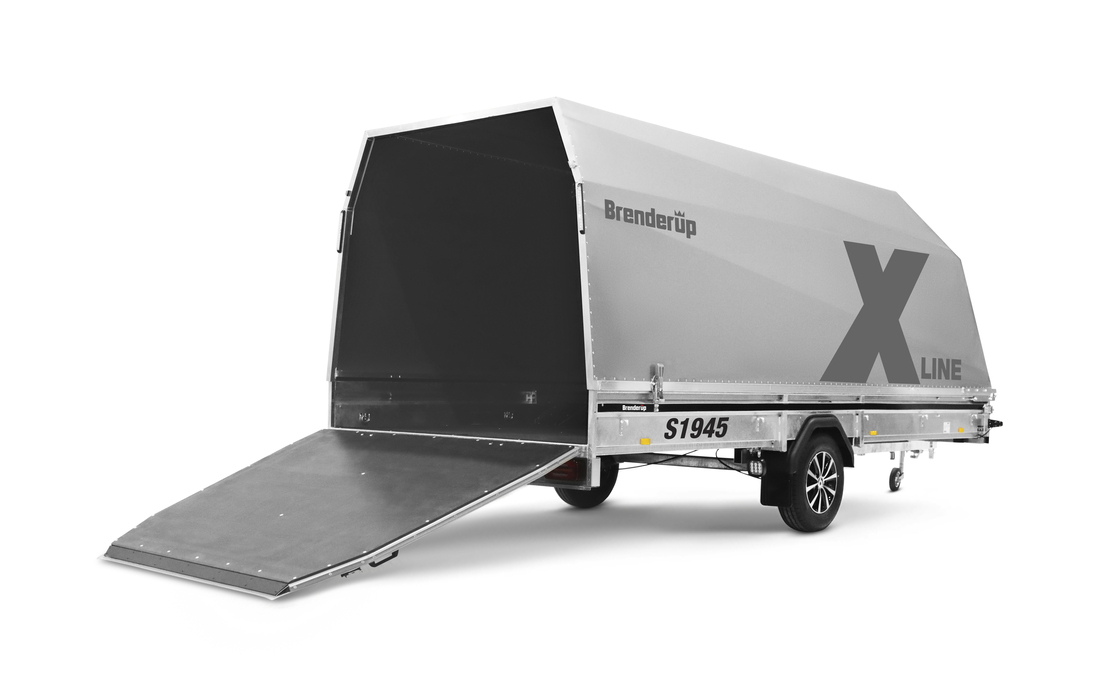

| Ramp | 1 x (1,88x1,63m) |
| Brakes | Yes |
| Number of axels | 1 |
| Tyre dimension | 165R13C |
| No of wheelbolts | 5 |
| Rim type | Aluminum |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Internal lashing eyes | 13 |
| External hooks | 13 |
