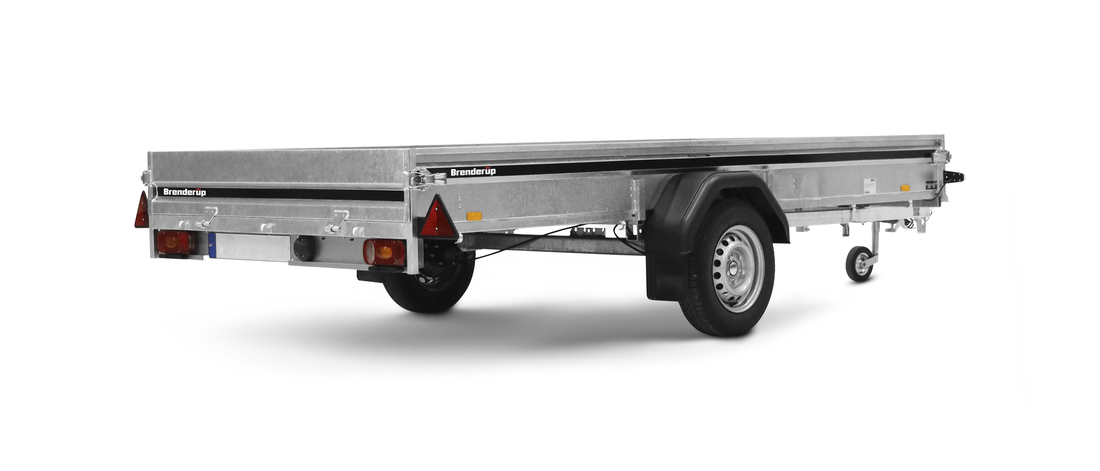

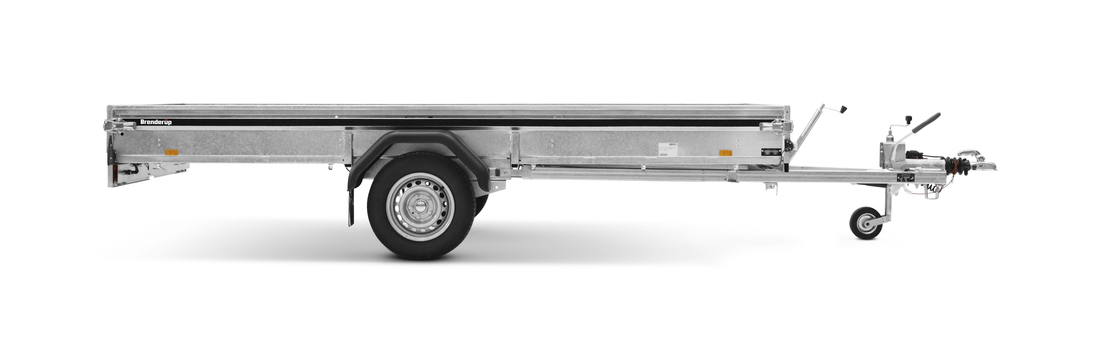

S15371000

Features and benefits

External hooks

External hooks for securing your load

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Strong side locks

High quality side locks which firmly locks the panels

Reinforced side panel

For better stability and stronger trailer

Welded chassi

A welded chassis give a more robust and steady trailer

Foldable front panel

Foldable front panel to easier load the trailer and also enable you to transport longer goods.

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Aluminium hood

Screw tip

The trailer is equipped with screw tip

Cables protected

Closed V-shape drawbar for protection of cables

Specifications Accessories Features and benefits

Specifications

S15371000
Article number 107056
Gross weight (kg) ? 1000
Load (kg) ? 670
Unladen weight (kg) 330
Int dimensions (cm) ? 365x152x26
Inside measurements (cm) 148
Ext dimensions (cm) ? 513x197x82
Loading height (mm) 550
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Tip Yes
Loading angle (°) 12
Type of tip Screw
Tip-protection No
Ramp 1 x (1,52x0,26m)
Brakes Yes
Number of axels 1
Tyre dimension 155R13
No of wheelbolts 5
Rim type Steel
Mudguards Non standable
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 8
External hooks 15
Premounted cover buttons No

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033
  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741
  • Alu X10 155/80R13

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 155/80R13, 500kg
    Art nr316172
  • Wheel alu rim

    155/80R13", 5 holes, with black aluminium rim
    Art nr308147
  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
