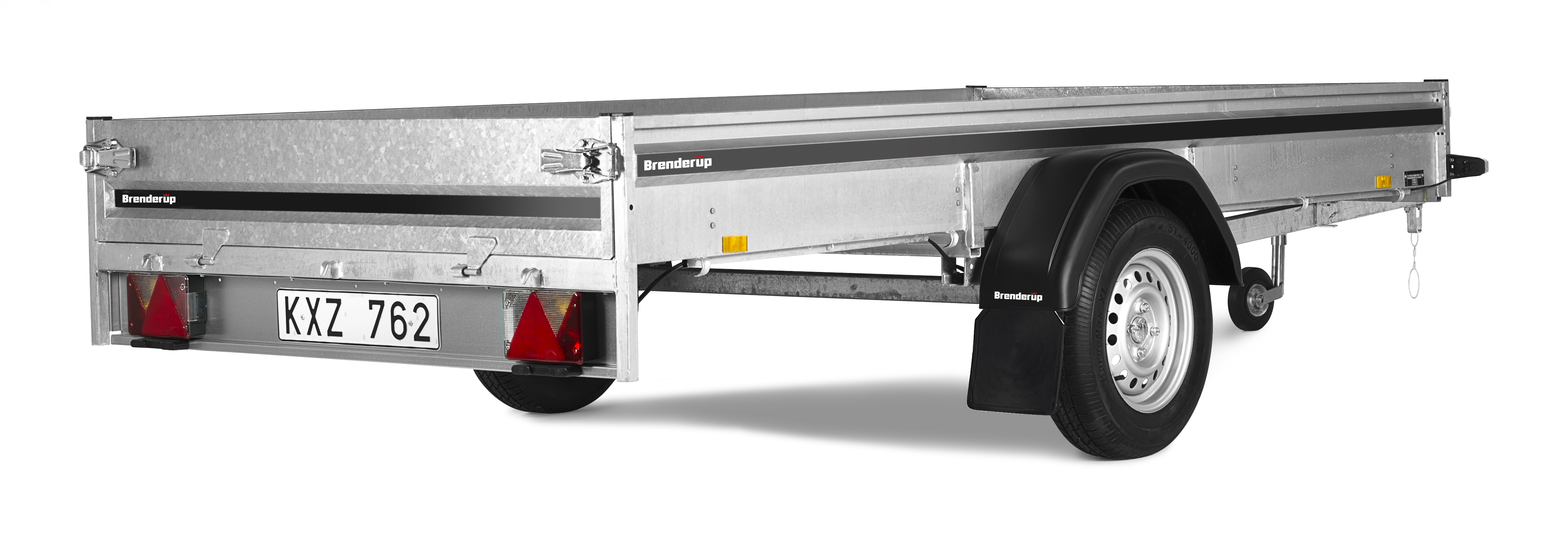

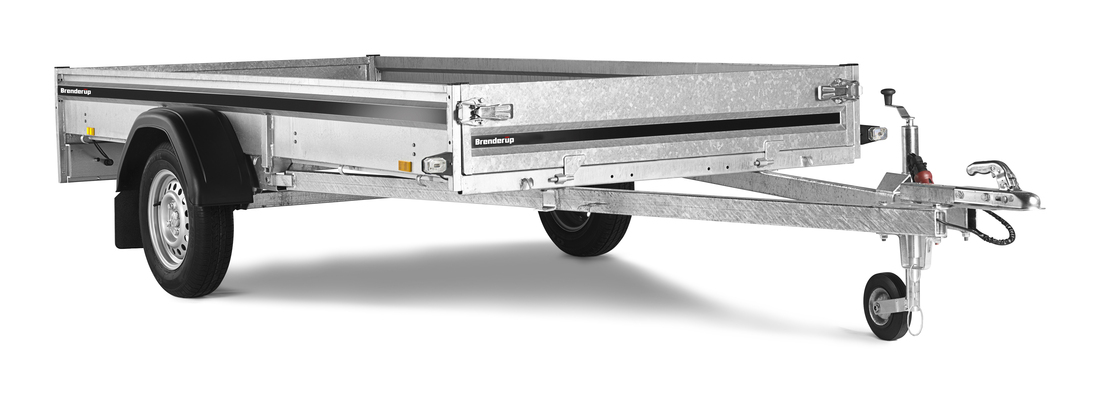

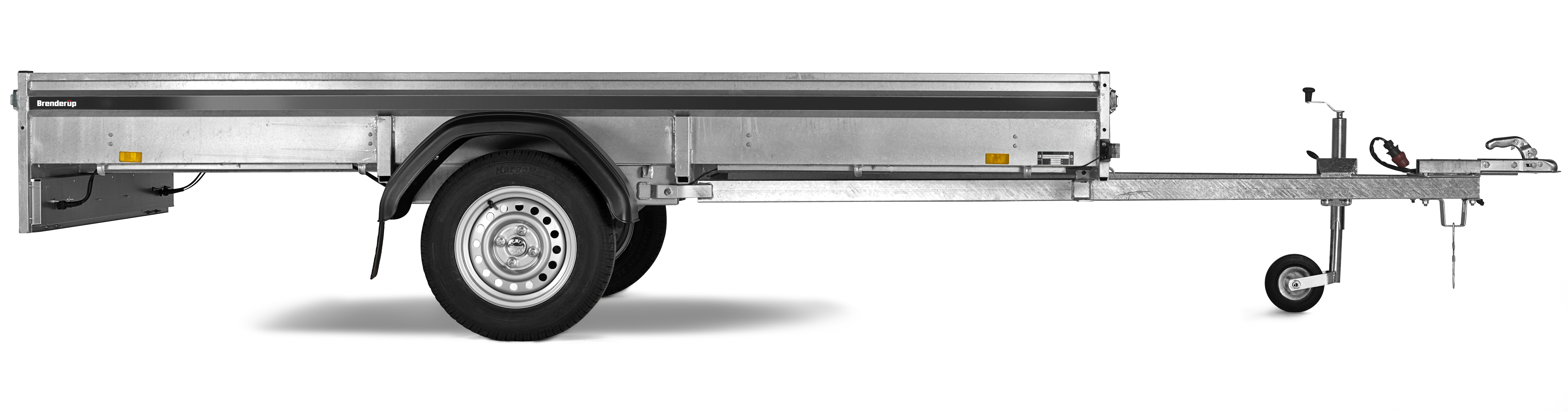

S1533UB650

Features and benefits

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Strong side locks

High quality side locks which firmly locks the panels

Reinforced side panel

For better stability and stronger trailer

Welded chassi

A welded chassis give a more robust and steady trailer

Foldable front panel

Foldable front panel to easier load the trailer and also enable you to transport longer goods.

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Aluminium hood

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Cables protected

Closed V-shape drawbar for protection of cables

Specifications Accessories Features and benefits

Specifications

S1533UB650
Article number 107054
Gross weight (kg) ? 650
Load (kg) ? 380
Unladen weight (kg) 270
Int dimensions (cm) ? 325x152x26
Inside measurements (cm) 143
Ext dimensions (cm) ? 487x198x82
Loading height (mm) 550
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Tip No
Loading angle (°) 11
Tip-protection No
Brakes No
Number of axels 1
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Internal lashing eyes 8
External hooks 15
Premounted cover buttons No

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Flat cover

    1520x3250mm black for D, S1533
    Art nr314515

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Jockey wheel with mounting kit

    Jockey wheel 102200, clamp 101415, bracket 102814, screws and nuts. Max vertical load on JW 125kg
    Art nr110778
