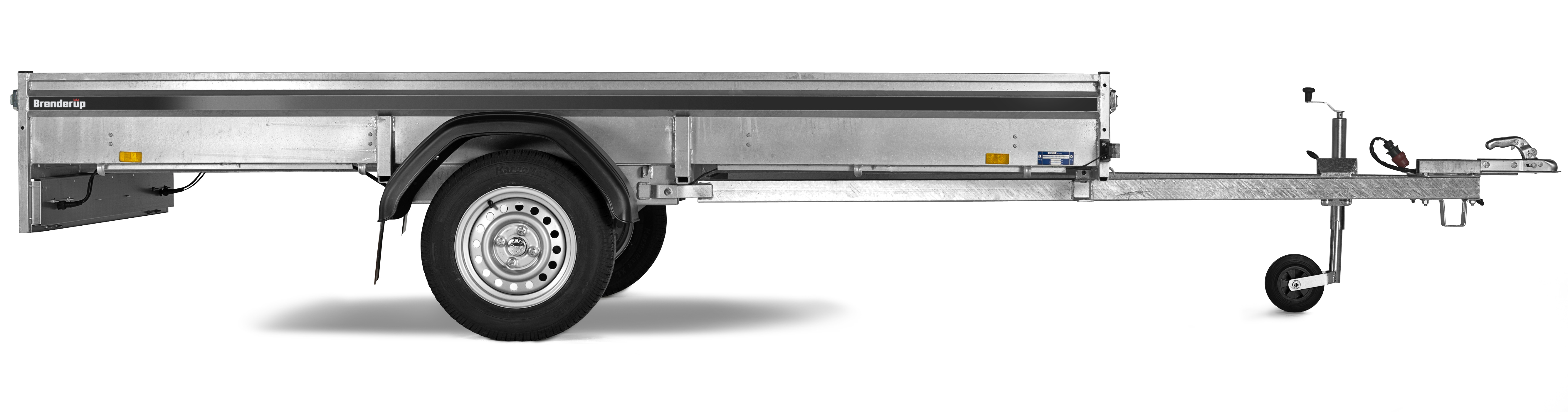

D0650U

Features and benefits

Strong side locks

High quality side locks which firmly locks the panels

Foldable front panel

Foldable front panel to easier load the trailer and also enable you to transport longer goods.

Long and wide bedsize

Adaptable for longer loads and smaller machines

External hooks

External hooks for securing your load

Welded chassi

A welded chassis give a more robust and steady trailer

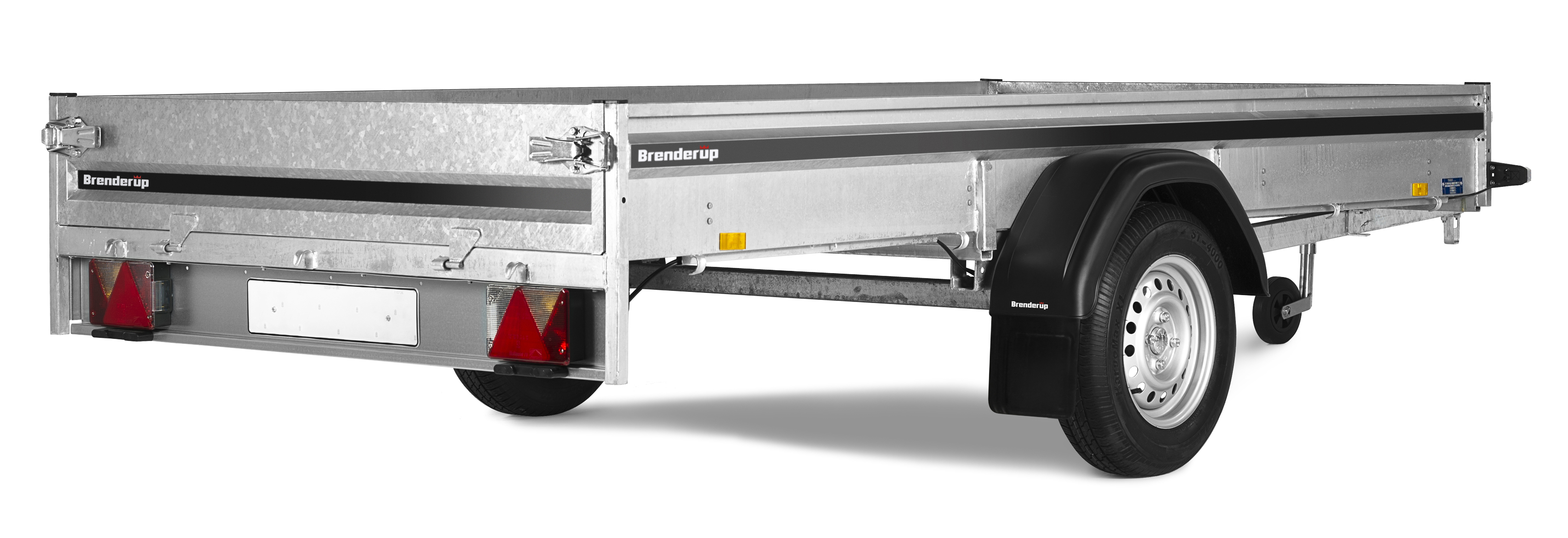

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

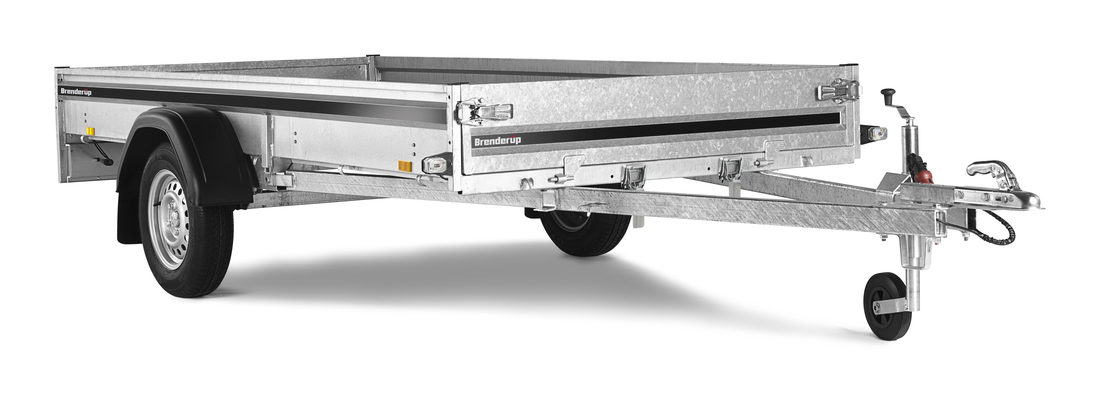

Tiltable

Helps you to easier unload your garden waste or load your lawn mover or bicycle to the trailer

Cables protected

Closed V-shape drawbar for protection of cables

Bedsize fits wood board

Bedsize fits construction size boards (120x260 cm)

Specifications Accessories Features and benefits

Specifications

D0650U
Article number 106844
Gross weight (kg) ? 650
Load (kg) ? 380
Unladen weight (kg) 270
Int dimensions (cm) ? 325x152x26
Ext dimensions (cm) ? 487x198x82
Loading height (mm) 550
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip Yes
Type of tip Manual/Screw/Gasspring
Tip-protection No
Brakes No
Number of axels 1
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 8
External hooks 15
Premounted cover buttons No
EAN 5702621068449

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

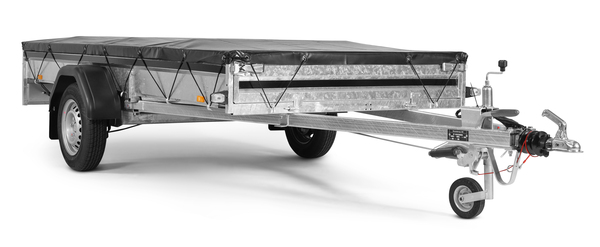

  • Flat cover

    1520x3250mm black for D, S1533
    Art nr314515

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Jockey wheel with mounting kit

    Jockey wheel 102200, clamp 101415, bracket 102814, screws and nuts. Max vertical load on JW 125kg
    Art nr110778
