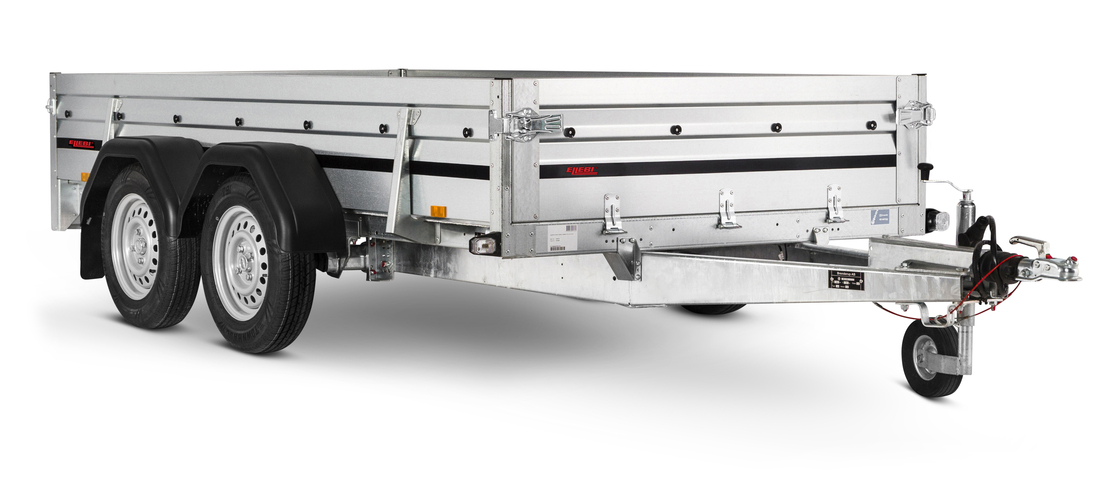

2300STB2000

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Strong drawbar

Foldable reinforced backpanel with aluminium plate

Reinforced backpanel with aluminium, can be used as a ramp

Specifications Accessories Features and benefits

Specifications

2300STB2000
Article number 311781
Gross weight (kg) ? 2000
Load (kg) ? 1620
Unladen weight (kg) 380
Int dimensions (cm) ? 302x153x40
Ext dimensions (cm) ? 449x203x102
Loading height (mm) 620
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip No
Prepared for tip No
Tip-protection No
Brakes Yes
Number of axels 2
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel Yes
Coupling Steel sheet
Internal lashing eyes 8
External hooks 4
Premounted cover buttons Yes
EAN 5702623117817

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Front stand

    Ladder rack 1580mm widht
    Art nr107775

  • Cargo net

    Black, 1630x3110mm for 2300
    Art nr312885

  • Propstand kit

    Contains support (112278), clamping bracket (101415) and mounting brackets.
    Art nr312739

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Loading ramp

    1530mm, with mounting kit, max load 300kg For 2260, 2300
    Art nr107798

  • Drive up kit

    Suitable for transportation of e.g tractors. Consists of rubber stoppers, spacers, shock absorbers, rails & chains for the backstop. For S-2000 with tip (2015-)
    Art nr308125

  • Propstand kit (mount.)

    For Series 2000. Contains support (112278), clamping bracket (101415) and mounting brackets. Mounted on S2000 trailer
    Art nr312739M

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Flat cover

    1530x3020mm dark gray to 2300
    Art nr308015
