High side extension kit 40 cm
Steel, 1530x3010mm, for 2300
2300STB2000
Features and benefits

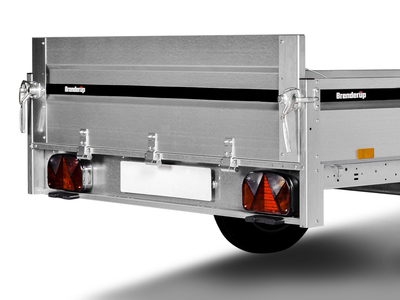

High back panel
For larger loading volume
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
13-pol cable
The trailer is delivered with a modern 13-pol connector.
Strong drawbar
Foldable reinforced backpanel with aluminium plate
Reinforced backpanel with aluminium, can be used as a ramp
Specifications
| 2300STB2000 | |
| Article number | 311780 |
| Gross weight (kg) ? | 2000 |
| Load (kg) ? | 1620 |
| Unladen weight (kg) | 380 |
| Int dimensions (cm) ? | 302x153x40 |
| Ext dimensions (cm) ? | 449x203x102 |
| Loading height (mm) | 620 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | No |
| Tip | No |
| Prepared for tip | No |
| Tip-protection | No |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Coupling | Steel sheet |
| Internal lashing eyes | 8 |
| External hooks | 4 |
| Premounted cover buttons | Yes |
| EAN | 5702623117800 |
Useful with
High cover 150 cm
3082x1622x1647mm dark grey, for 2300Art nr 315034
Support bar alu
Adjustable 1400-2200mm. Price per piece, only available in 12 packsArt nr 313033
Front stand
Ladder rack 1580mm widht
Cover stand 100 cm
1530x3010x1000mm (2300)
Jockey wheel
200x50mm, Ø48x420mm. Solid rubber with steel rimArt nr 116301
Cargo net
Black, 1630x3110mm for 2300Art nr 312885 Side rail kit
2 sides lenghtways, for 2300High cover 150 cm
1580x3070x1500mm white for cover stand 2300
Spare wheel holder
For 4 and 5-holes with bolt
Propstand kit
Contains support (112278), clamping bracket (101415) and mounting brackets.
Net frame kit 80 cm
1530x3010x800mm to 2300Cover stand 150 cm
1580x3070x1500mm (2300)
Transparts trailer lock
Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.Art nr 312519
Alu X8 155/80R13
Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kgArt nr 316169 Alu X8 155/80R13 (mounted)
Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailerArt nr 316169M
Mesh side kit 50 cm
1530x3010mm, for 2300
Loading ramp
1530mm, with mounting kit, max load 300kg For 2260, 2300
Bracket for propstand
For S-2000, 7000Art nr 113113 Propstand kit (mount.)
For Series 2000. Contains support (112278), clamping bracket (101415) and mounting brackets. Mounted on S2000 trailerArt nr 312739M
High cover 100 cm
1530x3020x1000mm gray for cover stand (2300)Art nr 308011
High cover with stand 100 cm
1580x3020x1000mm gray, stand with square profiles, to 2300
Mounting kit
For coverstand (2260)
Cover stand 150 cm
1500mm (1530x3020mm) for 2300 trailer
High side extension kit
Aluminium, 3010x1530mm , for serie 2000
Transparts trailer lock
Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519Art nr 313945
Meshside cover 50 cm
1530x3010x500mm gray, to 2300Art nr 308019
Jockey wheel
220x65mm Ø48mmx400mm, solid rubber with steel rim. Max vertical load 125kgArt nr 312229
Flat cover
1530x3020mm dark gray to 2300Art nr 308015
