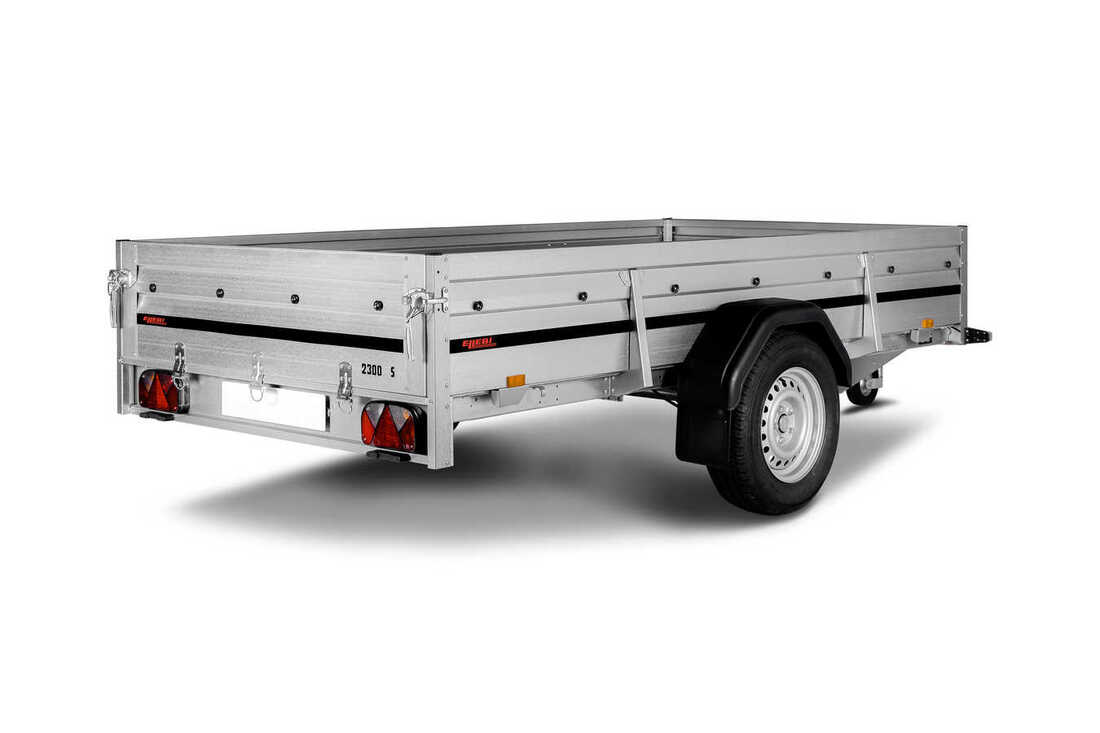

2300SB1300

Features and benefits

External hooks

External hooks for securing your load

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

High sides 40 cm

40 cm high sides provides larger loading volume

13-pol cable

The trailer is delivered with a modern 13-pol connector.

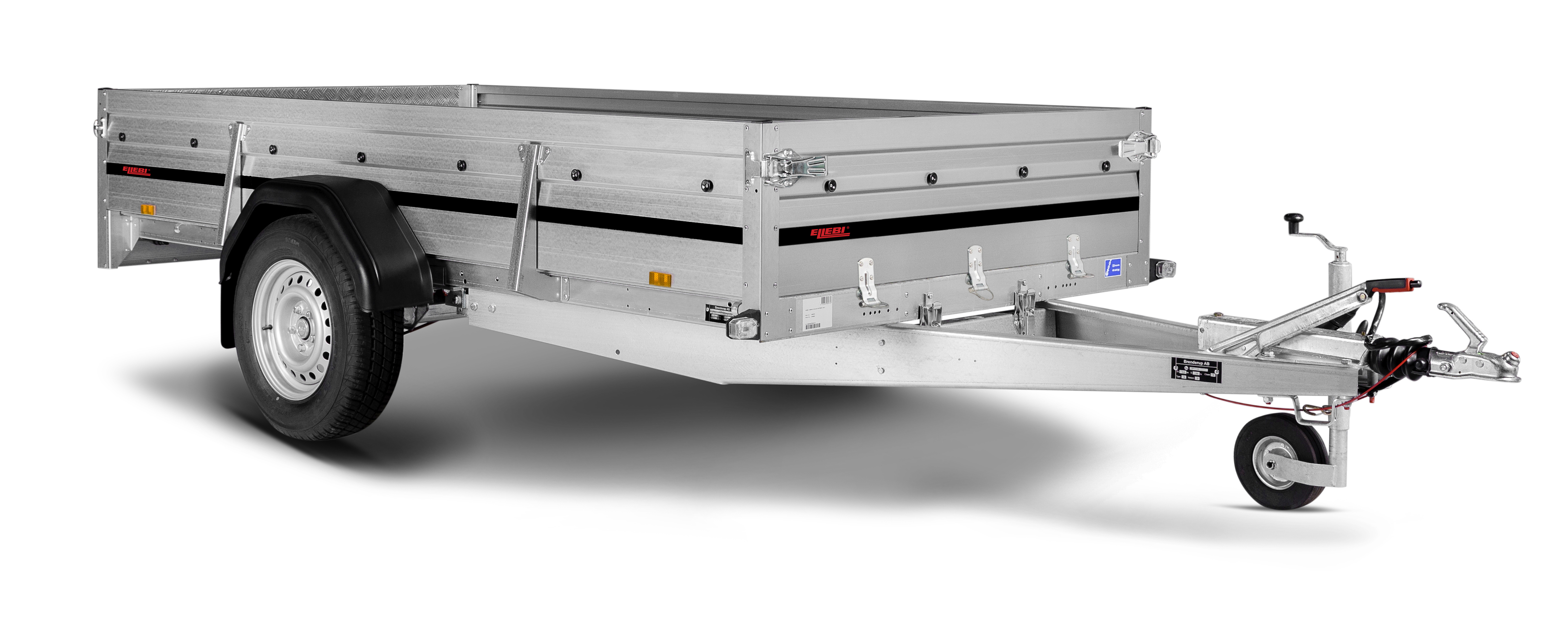

Gas spring tilt

Gas spring tilt as standard equipment

Strong drawbar

Reinforced side panel

For better stability and stronger trailer

Foldable front panel

Foldable front panel to easier load the trailer and also enable you to transport longer goods.

Strong side locks

High quality side locks which firmly locks the panels

Foldable reinforced backpanel with aluminium plate

Reinforced backpanel with aluminium, can be used as a ramp

Specifications Accessories Features and benefits

Specifications

2300SB1300
Article number 311776
Gross weight (kg) ? 1300
Load (kg) ? 985
Unladen weight (kg) 315
Int dimensions (cm) ? 302x153x40
Ext dimensions (cm) ? 449x203x94
Loading height (mm) 620
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip No
Prepared for tip No
Tip-protection No
Brakes Yes
Number of axels 1
Tyre dimension 195/70R14
No of wheelbolts 5
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel Yes
Coupling Steel sheet
Internal lashing eyes 8
External hooks 4
Premounted cover buttons Yes
EAN 5702623117763

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Front stand

    Ladder rack 1580mm widht
    Art nr107775

  • Cargo net

    Black, 1630x3110mm for 2300
    Art nr312885

  • Propstand kit

    Contains support (112278), clamping bracket (101415) and mounting brackets.
    Art nr312739

  • Alu X10 195/70R14 (mounted)

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg, mounted on trailer
    Art nr316170M

  • Loading ramp

    1530mm, with mounting kit, max load 300kg For 2260, 2300
    Art nr107798

  • Drive up kit

    Suitable for transportation of e.g tractors. Consists of rubber stoppers, spacers, shock absorbers, rails & chains for the backstop. For S-2000 with tip (2015-)
    Art nr308125

  • Propstand kit (mount.)

    For Series 2000. Contains support (112278), clamping bracket (101415) and mounting brackets. Mounted on S2000 trailer
    Art nr312739M

  • Alu X10 195/70R14

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg
    Art nr316170

  • Shock absorber kit

    2 pieces. Up to 1350kg for single axle and 2700kg for boogi axles. For S-2000
    Art nr304947

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Flat cover

    1530x3020mm dark gray to 2300
    Art nr308015
