New and 3 year warranty

2270SXLUB750

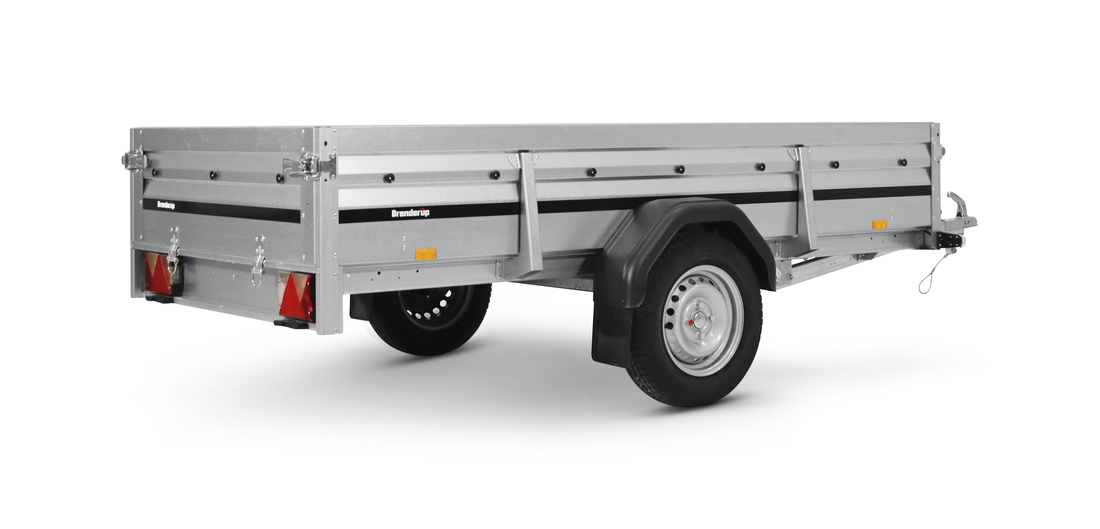

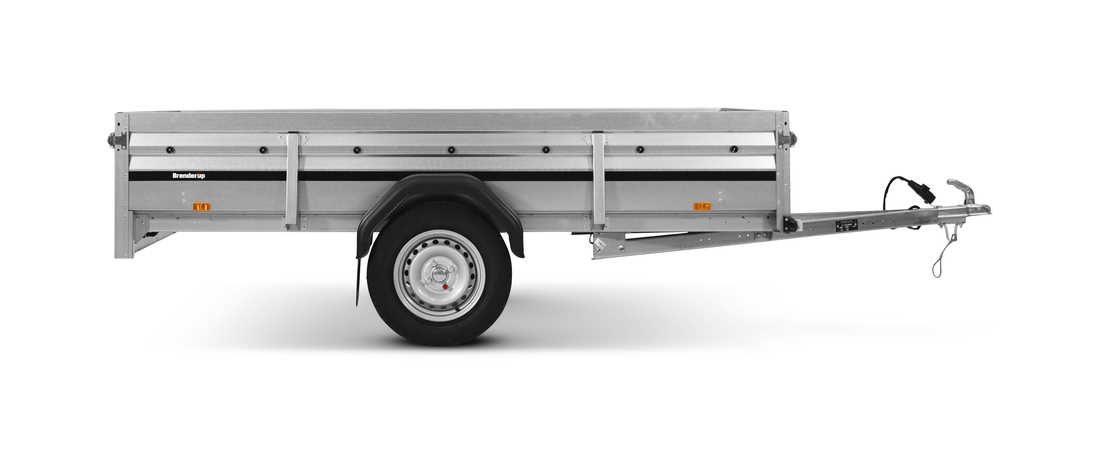

The 2270XL is a durable trailer that offers you a low loading height and 40 cm high reinforced side walls as standard. The trailer is easy to load and has a folding front and rear wall for longer goods. All versions are equipped with internal lashing eyes for safe loading of goods. As always, Brenderup offers an extensive range of accessories for our trailers. The pictures are for illustration purposes only and may contain optional equipment.

Features and benefits

High back panel

For larger loading volume

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

High sides 40 cm

40 cm high sides provides larger loading volume

Strong drawbar

Foldable front panel

Foldable front panel to easier load the trailer and also enable you to transport longer goods.

Specifications Accessories Features and benefits

Specifications

2270SXLUB750
Article number 317024
Gross weight (kg) ? 750
Load (kg) ? 535
Unladen weight (kg) 215
Int dimensions (cm) ? 270x129x40
Ext dimensions (cm) ? 388x175X93
Loading height (mm) 540
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip No
Prepared for tip No
Tip-protection No
Brakes No
Number of axels 1
Tyre dimension 145/80 R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 6
Premounted cover buttons Yes
EAN 5702623170249

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Jockey wheel

    200x50mm, Ø48x420mm. Solid rubber with steel rim
    Art nr116301

  • Support bar alu

    Adjustable 1000-1450mm. Price per piece
    Art nr313032

  • Propstand kit

    Contains support (112278), clamping bracket (101415) and mounting brackets.
    Art nr312739

  • Propstand kit (mount.)

    For Series 2000. Contains support (112278), clamping bracket (101415) and mounting brackets. Mounted on S2000 trailer
    Art nr312739M

  • Flat cover

    1350x2750x60 gray, to 2270
    Art nr104458

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Toolbox

    300x1080mm, height 330mm. Complete, including srew kit for mounting on squareprofile drawbars, black plastic. For mounting on high drawbars add 4 U-bolts M12 74 / 135mm and 8 hex nuts M12
    Art nr115873

  • High cover 84cm

    High cover, 1340x2760x840mm black with Brenderup logotyp
    Art nr317406
