New

2260WSB750 TILT

  1. Equipped with tilt and shock absorber
  2. Reinforced back panel
  3. 6 strong internal lashing eyes

Features and benefits

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Gas spring tilt

Gas spring tilt as standard equipment

Strong drawbar

High back panel

For larger loading volume

Strong side locks

High quality side locks which firmly locks the panels

Specifications Accessories Features and benefits

Specifications

2260WSB750 TILT
Article number 316918
Gross weight (kg) ? 750
Load (kg) ? 495
Unladen weight (kg) 255
Int dimensions (cm) ? 258x153x26
Ext dimensions (cm) ? 405x204x102
Loading height (mm) 530
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel No
Foldable side panels No
Tip Yes
Type of tip Gas spring
Loading angle (°) 15
Tip-protection No
Brakes Yes
Number of axels 1
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Straight
Adaptercable 13
Jockey wheel Yes
Coupling Steel sheet
Internal lashing eyes 6
External hooks 4
Premounted cover buttons Yes
EAN 5702623169182

Useful with

  • Cargo net

    Black, 1610x2660mm for 2260W
    Art nr312883

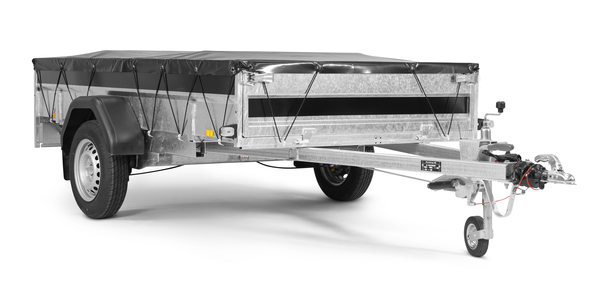

  • Flat cover

    1520x2580mm black for 2260W, RT
    Art nr314514

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Shock absorber kit

    2 pieces. Up to 1350kg for single axle and 2700kg for boogi axles. For S-2000
    Art nr304947

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
