2260WSB1000
Features and benefits

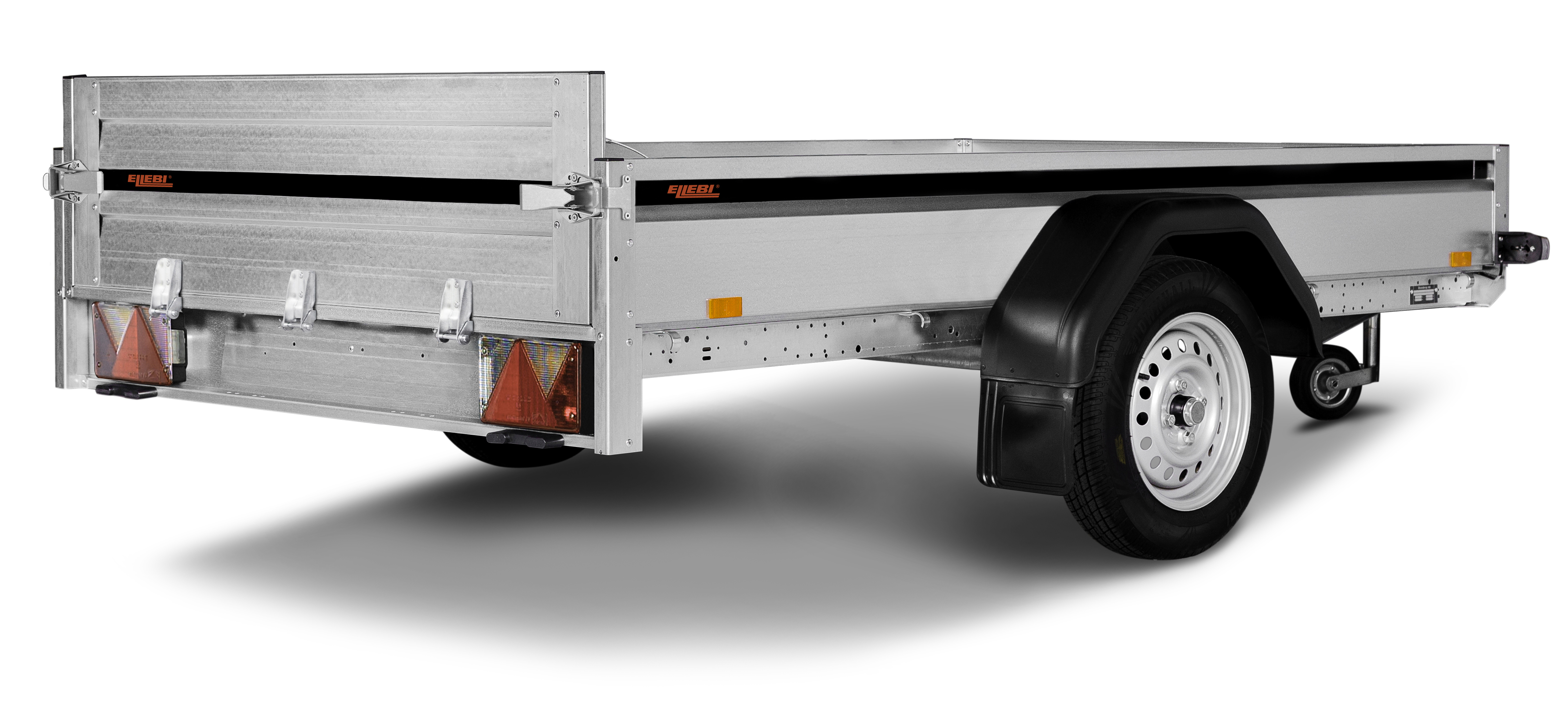

Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
13-pol cable
The trailer is delivered with a modern 13-pol connector.
Strong drawbar
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
Foldable reinforced backpanel with aluminium plate
Reinforced backpanel with aluminium, can be used as a ramp
Strong side locks
High quality side locks which firmly locks the panels
External hooks
External hooks for securing your load
Specifications
| 2260WSB1000 | |
| Article number | 311855 |
| Gross weight (kg) ? | 1000 |
| Load (kg) ? | 680 |
| Unladen weight (kg) | 320 |
| Int dimensions (cm) ? | 258x153x26 |
| Ext dimensions (cm) ? | 405x204x102 |
| Loading height (mm) | 530 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |
| Tip | Yes |
| Type of tip | Gas spring |
| Loading angle (°) | 15 |
| Tip-protection | No |
| Brakes | Yes |
| Number of axels | 1 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Coupling | Steel sheet |
| Internal lashing eyes | 6 |
| External hooks | 4 |
| Premounted cover buttons | Yes |
| EAN | 5702623118555 |
| Replaced by | 311854 |
