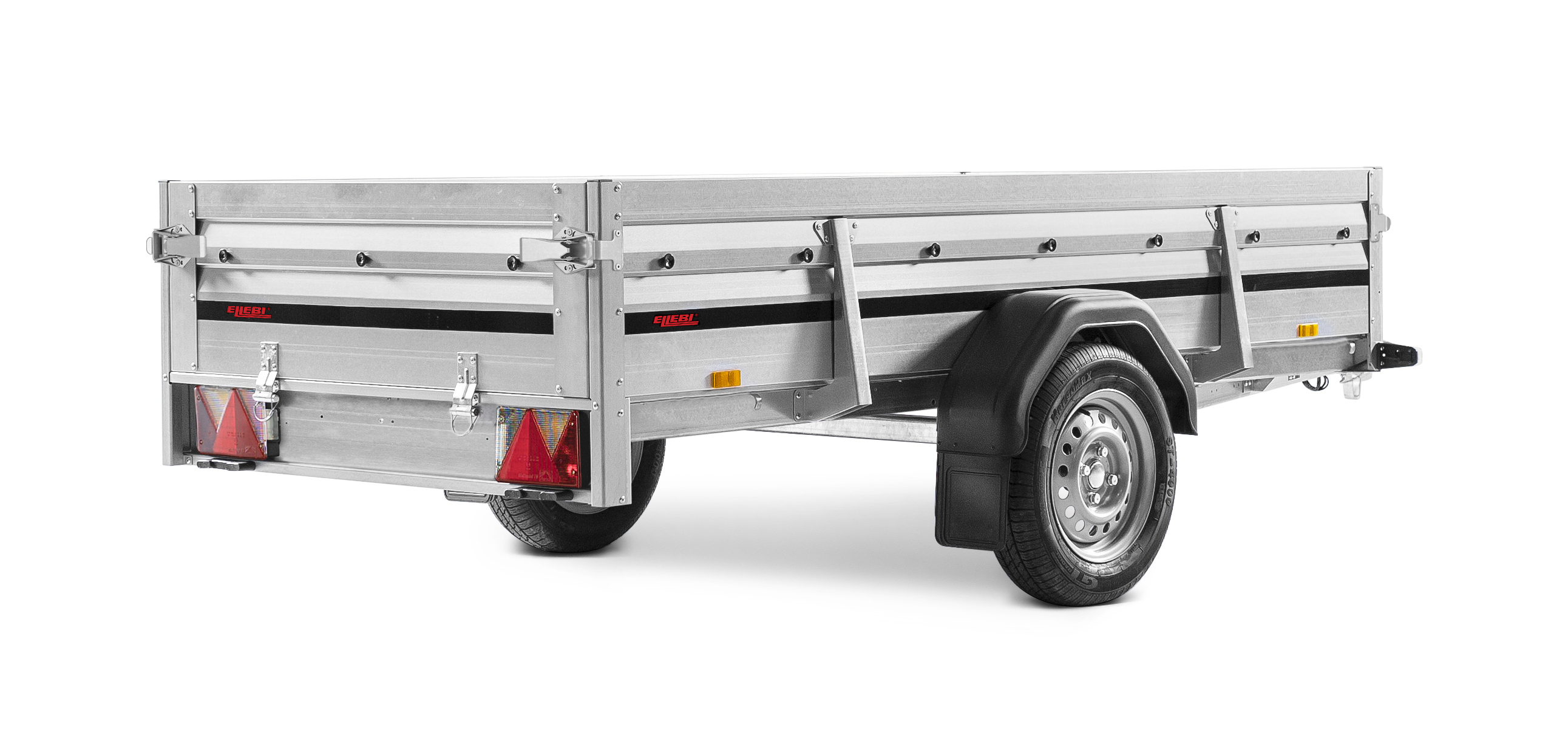

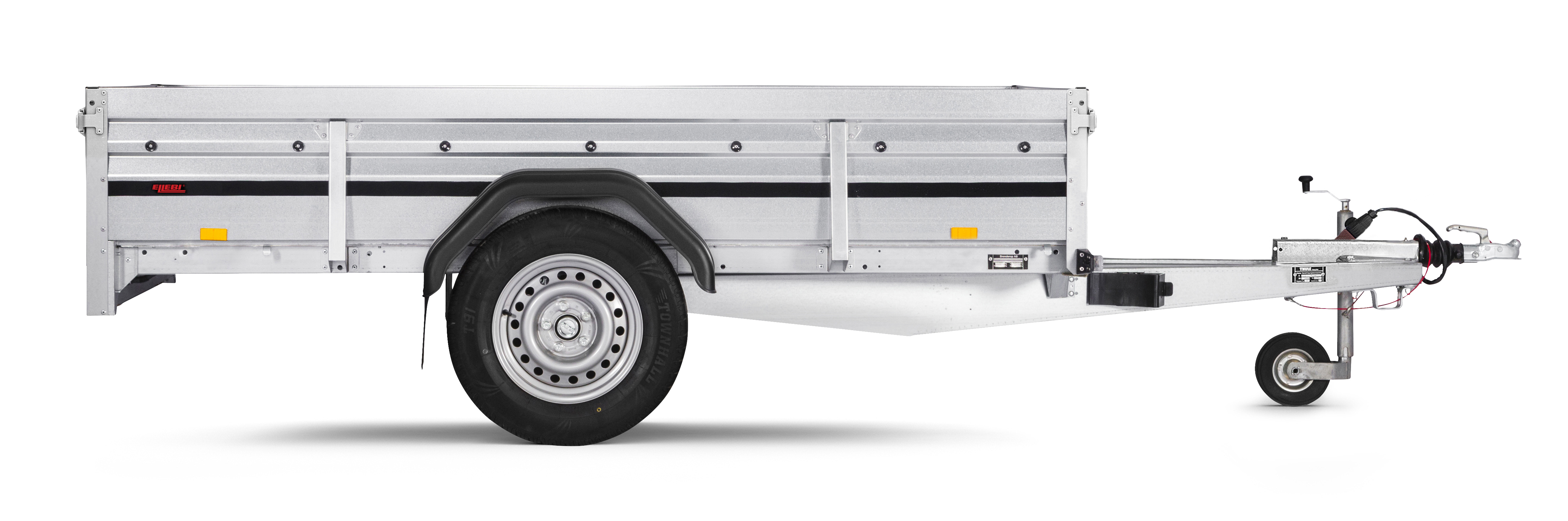

High side extension kit 40 cm
Steel, 1280x2580mm, for 2260 (2015-)
2260SUB750
Features and benefits
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
High sides 40 cm
40 cm high sides provides larger loading volume
13-pol cable
The trailer is delivered with a modern 13-pol connector.
Strong drawbar
Strong side locks
High quality side locks which firmly locks the panels
Foldable reinforced backpanel with aluminium plate
Reinforced backpanel with aluminium, can be used as a ramp
Specifications
| 2260SUB750 | |
| Article number | 311794 |
| Gross weight (kg) ? | 750 |
| Load (kg) ? | 545 |
| Unladen weight (kg) | 205 |
| Int dimensions (cm) ? | 258x128x40 |
| Ext dimensions (cm) ? | 377x175x94 |
| Loading height (mm) | 540 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | No |
| Tip | No |
| Prepared for tip | No |
| Tip-protection | No |
| Brakes | No |
| Number of axels | 1 |
| Tyre dimension | 145/80R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | No |
| Coupling | Steel sheet |
| Internal lashing eyes | 6 |
| External hooks | 4 |
| Premounted cover buttons | Yes |
| EAN | 5702623117947 |
