New

1205SUBXL750

  1. Foldable back panel
  2. Easy securing of your load

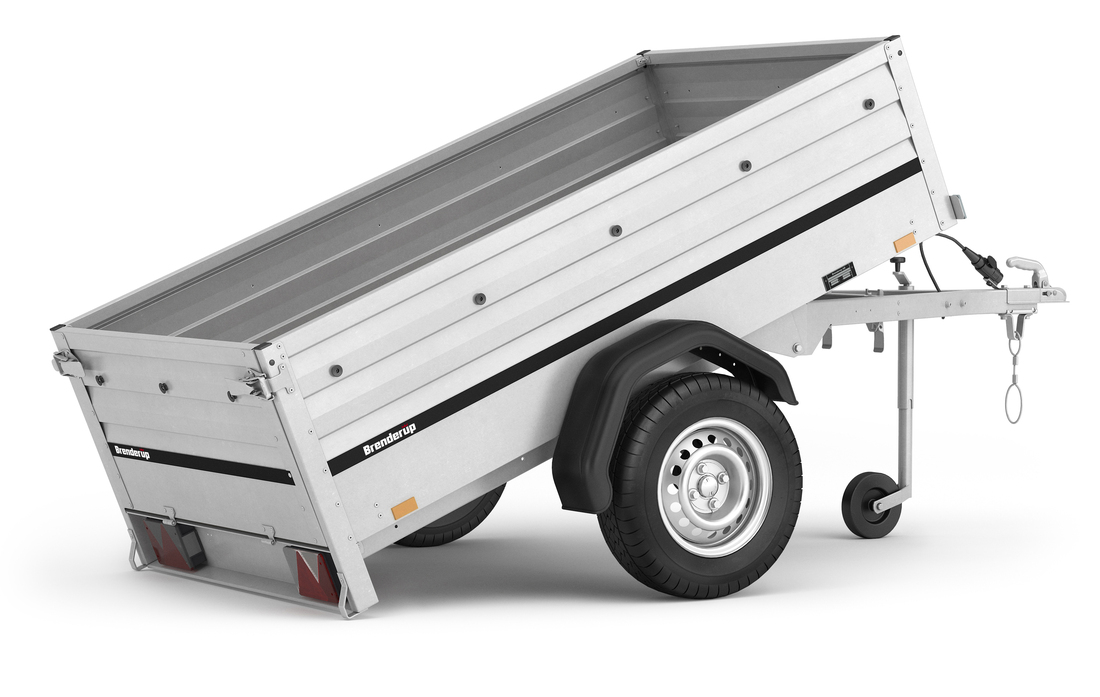

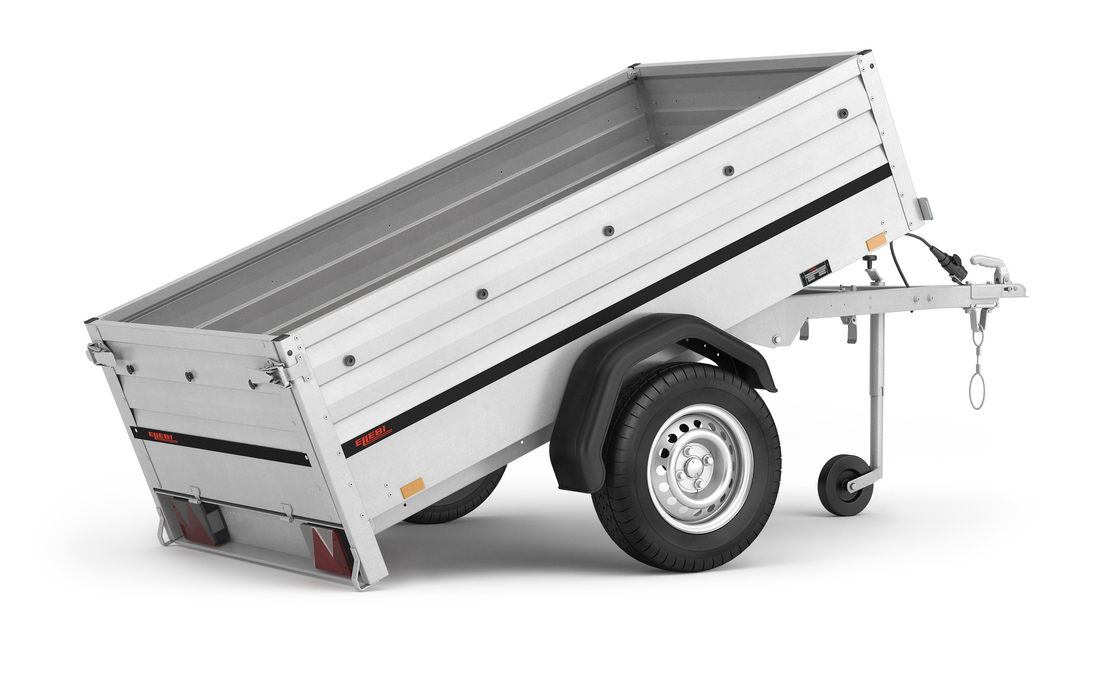

  3. All models equiped with tilt

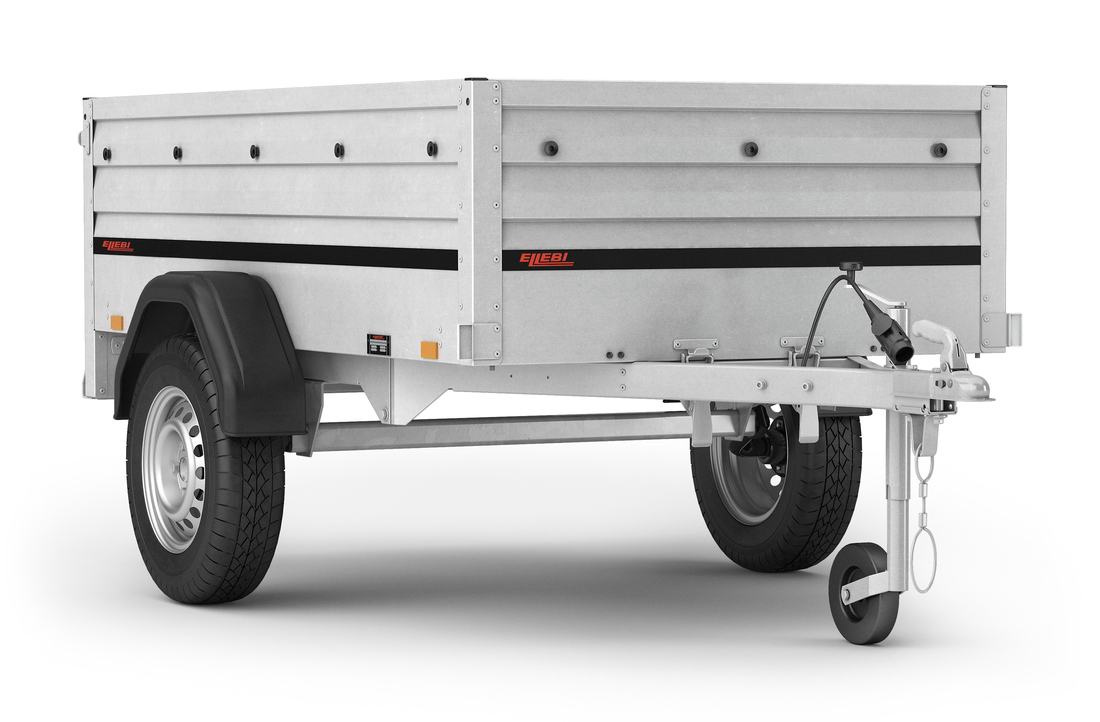

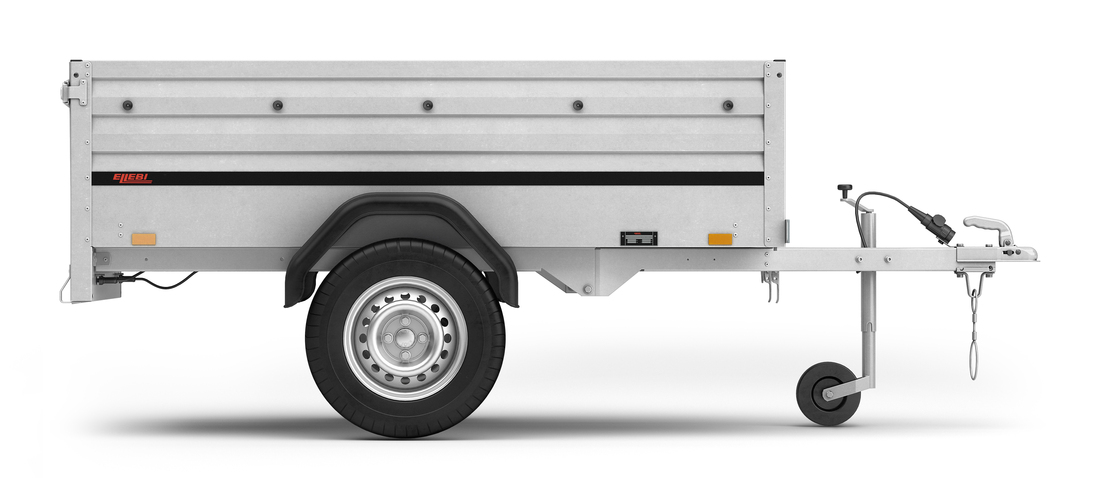

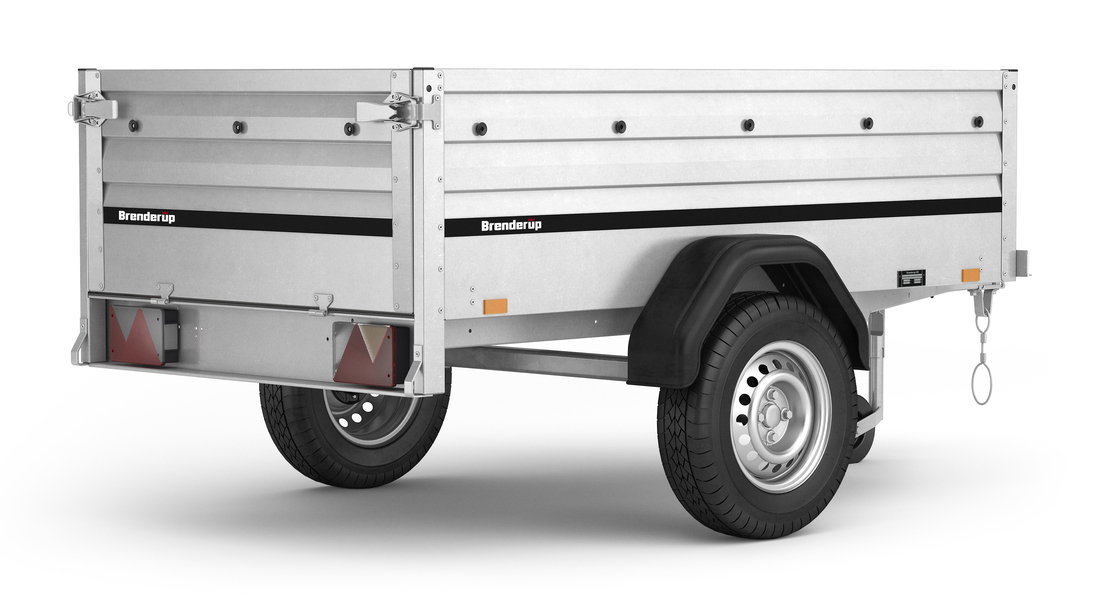

Small versatile trailer suitable for do it yourself purposes: from camping and leisure to moving garden waste and goods. This trailer has extra high sides which increases you loading capacity and areas of use. The trailer comes with a V-shaped drawbar that helps you drive safely to your destination. The trailer can be easily stored in a vertical position in order to save space. Its equipped with tilt and a foldable drawbar which is space saving when stored vertical.Wide accessory program available. Images are for illustrative purposes only and may show optional equipment.

Features and benefits

Cover buttons

The trailer is prepared for flat and high covers, attachment for covers pre-assembled

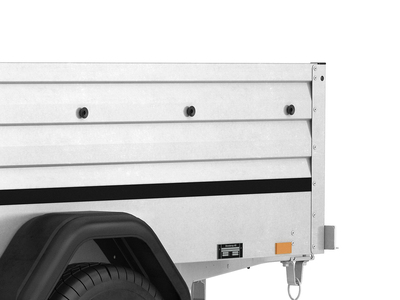

Extra high sides

55 cm high sides provides extra large volume

Foldable drawbar/Upright storage

Space saving which allows you to store your trailer in a garage or against a wall. Don't forget to secure your trailer if you store in an upright position.

13-pol cable

The trailer is delivered with a modern 13-pol connector.

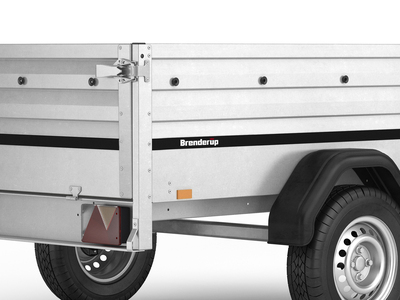

Strong side panel

Firm sidepanel which increases the stability of the trailer

Strong side locks

High quality side locks which firmly locks the panels

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Specifications Accessories Features and benefits

Specifications

1205SUBXL750
Article number 311390
Gross weight (kg) ? 750
Load (kg) ? 605
Unladen weight (kg) 145
Int dimensions (cm) ? 116x204x55
Ext dimensions (cm) ? 299x159x109
Tip Yes
Type of tip Manual
Brakes No
Tyre dimension 145/80R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Internal lashing eyes 4
EAN 5702623113901

Useful with

  • Accessory kit 1205

    Black Flatcover, Jockey wheel and clamp including bolts. For model 1205S. Max vertical load on JW 125 kg
    Art nr315935

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Railing kit

    2000x100mm steel, for 1205, 3205, ES200. Mounted on top of longitudinal sides.
    Art nr116930

  • Flat cover

    1240x2130 to 1205, 1203
    Art nr302610

  • Bracket

    For 1205, ES200 from 2018. without hole for jockeywheel
    Art nr311170

  • Mesh side kit 50 cm

    1160x2040x500mm. With loose legs, complete for 1205S (2018-)
    Art nr311519

  • Support bar alu

    Adjustable 1000-1450mm. Price per piece
    Art nr313032

  • Accessory kit 1205/ES200/ES203

    Grey Flatcover, Jockey wheel and clamp including bolts. For model 1205S, ES200. Max vertical load on JW 125 kg
    Art nr113709

  • Flat cover

    1230x2120mm black, for 1205, 1203
    Art nr312761

  • Trailer top 35 cm

    1160x2030x350 black, complete with mounting kit for 1205, ES200
    Art nr308110

  • Cargo net

    Black 1240x2120mm, flexible net with elastic outer thread. For 1205, ES200
    Art nr104014

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
