Accessory kit 1205
Black Flatcover, Jockey wheel and clamp including bolts. For model 1205S. Max vertical load on JW 125 kg

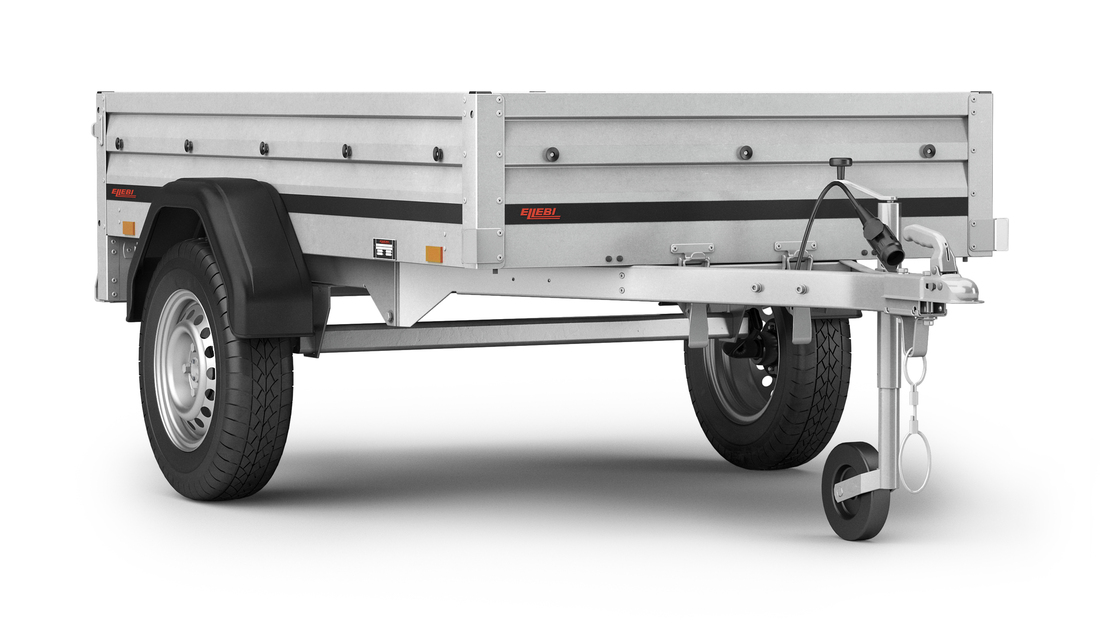

1205SUB750
Features and benefits
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
13-pol cable
The trailer is delivered with a modern 13-pol connector.
Strong side locks
High quality side locks which firmly locks the panels
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
Specifications
| 1205SUB750 | |
| Article number | 311323 |
| Gross weight (kg) ? | 750 |
| Load (kg) ? | 605 |
| Unladen weight (kg) | 145 |
| Int dimensions (cm) ? | 204x116x35 |
| Ext dimensions (cm) ? | 299x159x109 |
| Loading height (mm) | 545 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |
| Tip | Yes |
| Type of tip | Manual |
| Tip-protection | Yes |
| Brakes | No |
| Number of axels | 1 |
| Tyre dimension | 145/80R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | No |
| Coupling | Steel sheet |
| Internal lashing eyes | 4 |
| Premounted cover buttons | Yes |
| EAN | 5702623113239 |
