New

1205SUB500

Features and benefits

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

Foldable drawbar/Upright storage

Space saving which allows you to store your trailer in a garage or against a wall. Don't forget to secure your trailer if you store in an upright position.

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Strong side panel

Firm sidepanel which increases the stability of the trailer

Strong side locks

High quality side locks which firmly locks the panels

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

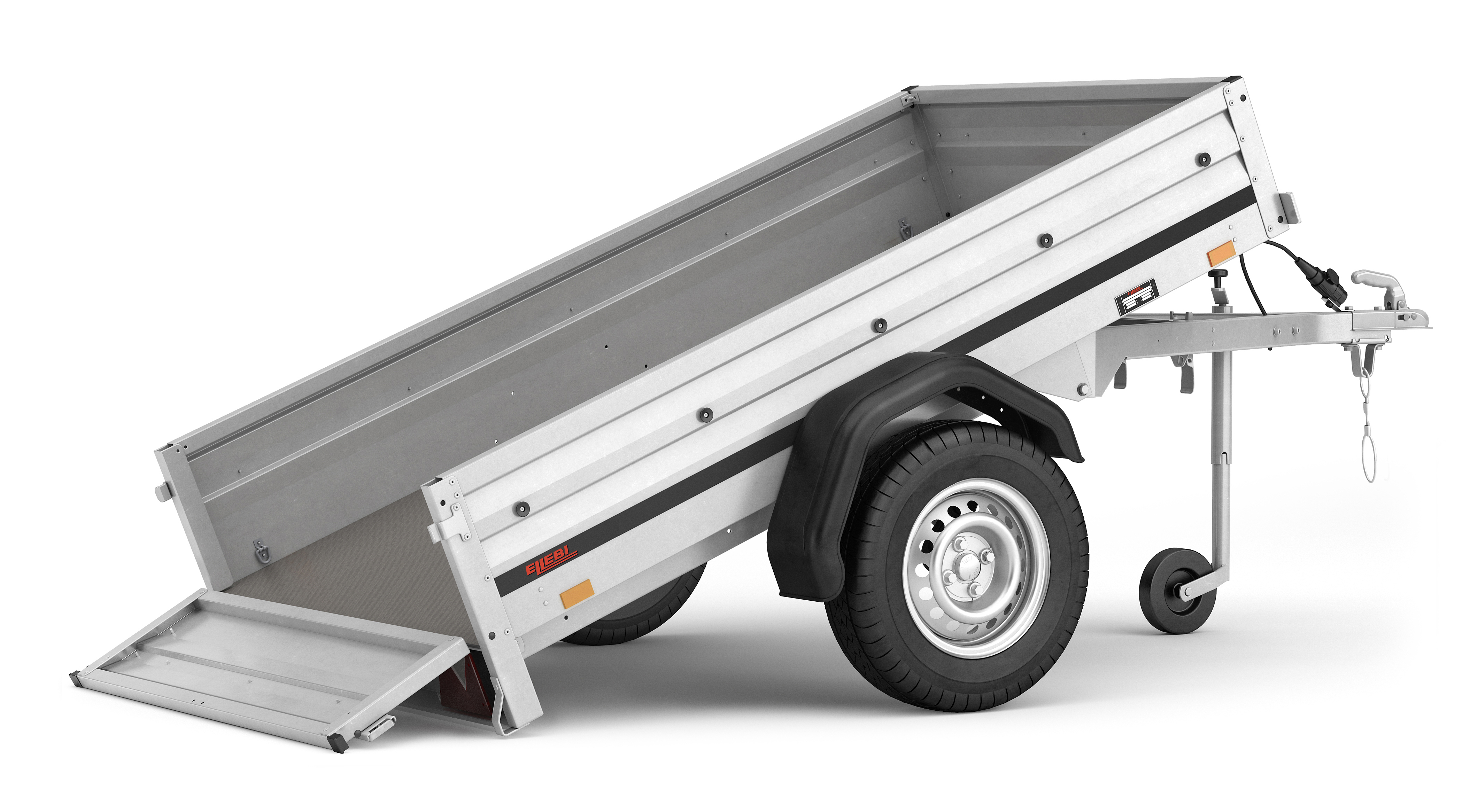

Tiltable

Helps you to easier unload your garden waste or load your lawn mover or bicycle to the trailer

Specifications Accessories Document Features and benefits

Specifications

1205SUB500
Article number 310969
Gross weight (kg) ? 500
Load (kg) ? 370
Unladen weight (kg) 130
Int dimensions (cm) ? 204x116x35
Ext dimensions (cm) ? 299x159x89
Loading height (mm) 545
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel No
Foldable side panels No
Tip Yes
Type of tip Manual
Tip-protection Yes
Brakes No
Number of axels 1
Tyre dimension 145/80R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 4
Premounted cover buttons Yes
EAN 5702623109690

Useful with

  • Accessory kit 1205

    Black Flatcover, Jockey wheel and clamp including bolts. For model 1205S. Max vertical load on JW 125 kg
    Art nr315935

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Flat cover

    1240x2130 to 1205, 1203
    Art nr302610

  • Bracket

    For 1205, ES200 from 2018. without hole for jockeywheel
    Art nr311170

  • Jockey wheel

    200x50mm, Ø48x420mm. Solid rubber with steel rim
    Art nr116301

  • Mesh side kit 50 cm

    1160x2040x500mm. With loose legs, complete for 1205S (2018-)
    Art nr311519

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Support bar alu

    Adjustable 1000-1450mm. Price per piece
    Art nr313032

  • Accessory kit 1205/ES200/ES203

    Grey Flatcover, Jockey wheel and clamp including bolts. For model 1205S, ES200. Max vertical load on JW 125 kg
    Art nr113709

  • Flat cover

    1230x2120mm black, for 1205, 1203
    Art nr312761

  • Trailer top 35 cm

    1160x2030x350 black, complete with mounting kit for 1205, ES200
    Art nr308110

  • Cargo net

    Black 1240x2120mm, flexible net with elastic outer thread. For 1205, ES200
    Art nr104014

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
