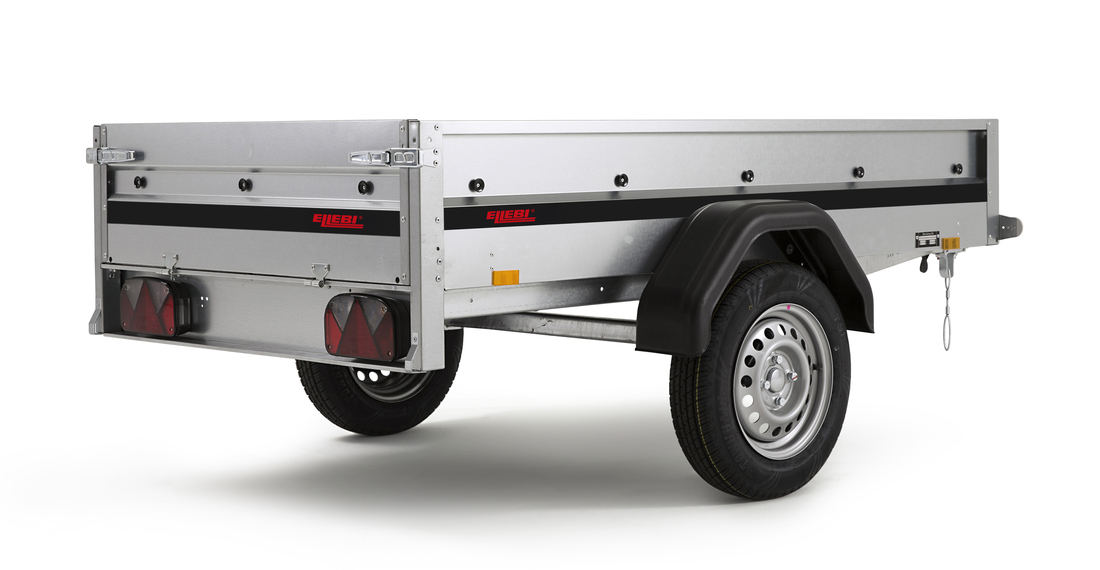

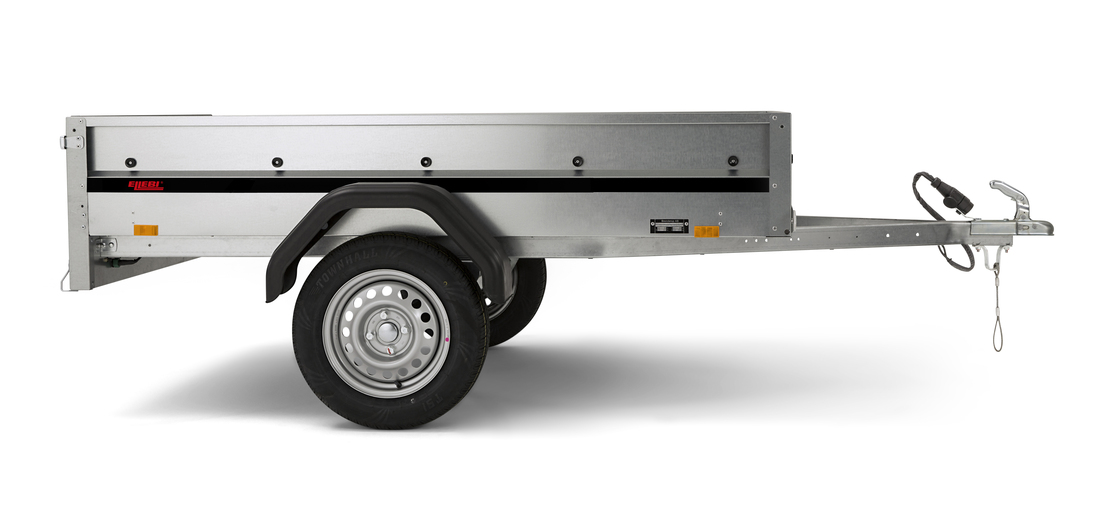

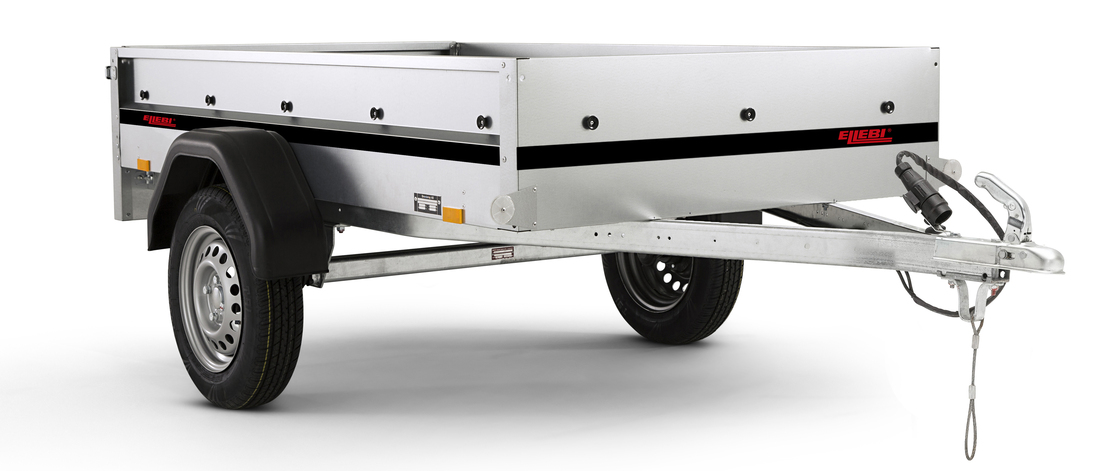

1203SUB750

Specifications Accessories

Specifications

1203SUB750
Article number 317586
Gross weight (kg) ? 750
Load (kg) ? 625
Unladen weight (kg) 125
Int dimensions (cm) ? 204x116x35
Loading height (mm) 545
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel No
Foldable side panels No
Tip No
Prepared for tip No
Tip-protection Yes
Brakes No
Number of axels 1
Tyre dimension 145/80R13
No of wheelbolts 4
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 4
Premounted cover buttons Yes
EAN 5702623175862

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Railing kit

    2000x100mm steel, for 1205, 3205, ES200. Mounted on top of longitudinal sides.
    Art nr116930

  • Flat cover

    1240x2130 to 1205, 1203
    Art nr302610

  • Bracket

    For 1205, ES200 from 2018. without hole for jockeywheel
    Art nr311170

  • Jockey wheel

    200x50mm, Ø48x420mm. Solid rubber with steel rim
    Art nr116301

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Support bar alu

    Adjustable 1000-1450mm. Price per piece
    Art nr313032

  • Accessory kit 1205/ES200/ES203

    Grey Flatcover, Jockey wheel and clamp including bolts. For model 1205S, ES200. Max vertical load on JW 125 kg
    Art nr113709

  • Flat cover

    1230x2120mm black, for 1205, 1203
    Art nr312761

  • Cargo net

    Black 1240x2120mm, flexible net with elastic outer thread. For 1205, ES200
    Art nr104014

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Toolbox

    300x1080mm, height 330mm. Complete, including srew kit for mounting on squareprofile drawbars, black plastic. For mounting on high drawbars add 4 U-bolts M12 74 / 135mm and 8 hex nuts M12
    Art nr115873
