Bracket for jockey wheel
13,5 degrees

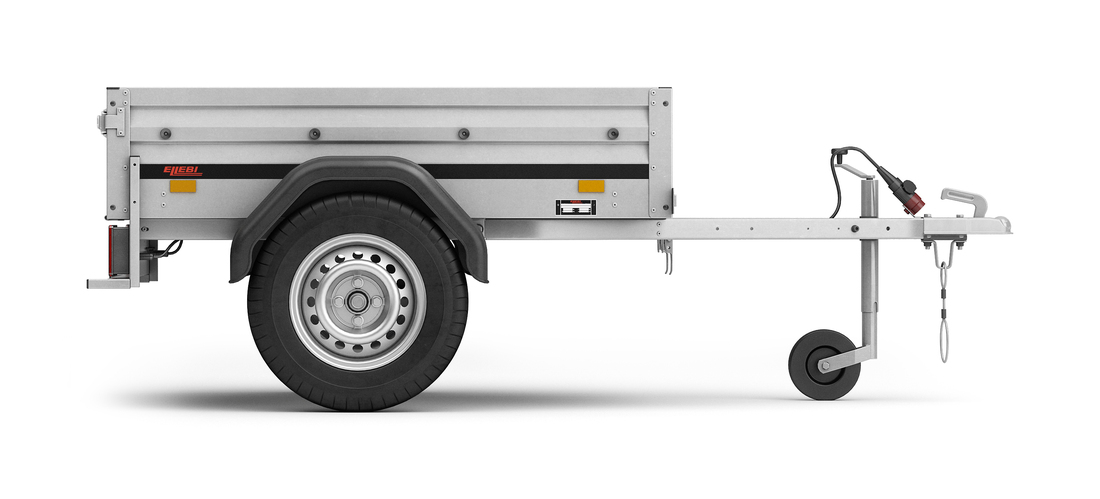

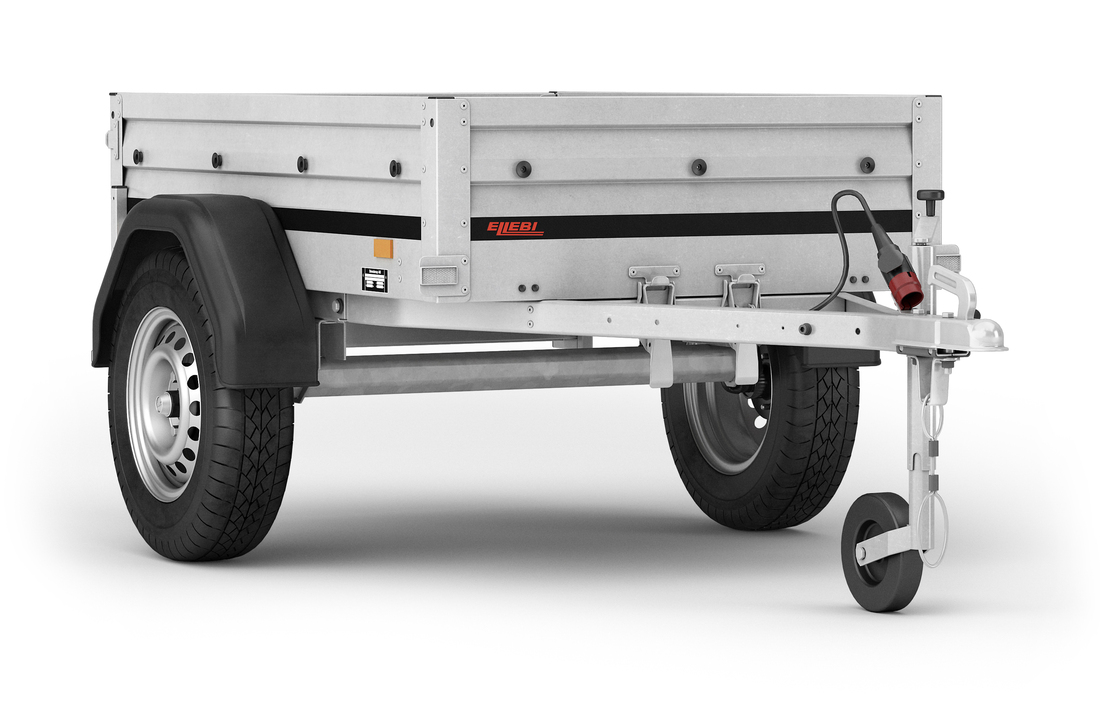

1150SUB500
Features and benefits
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled

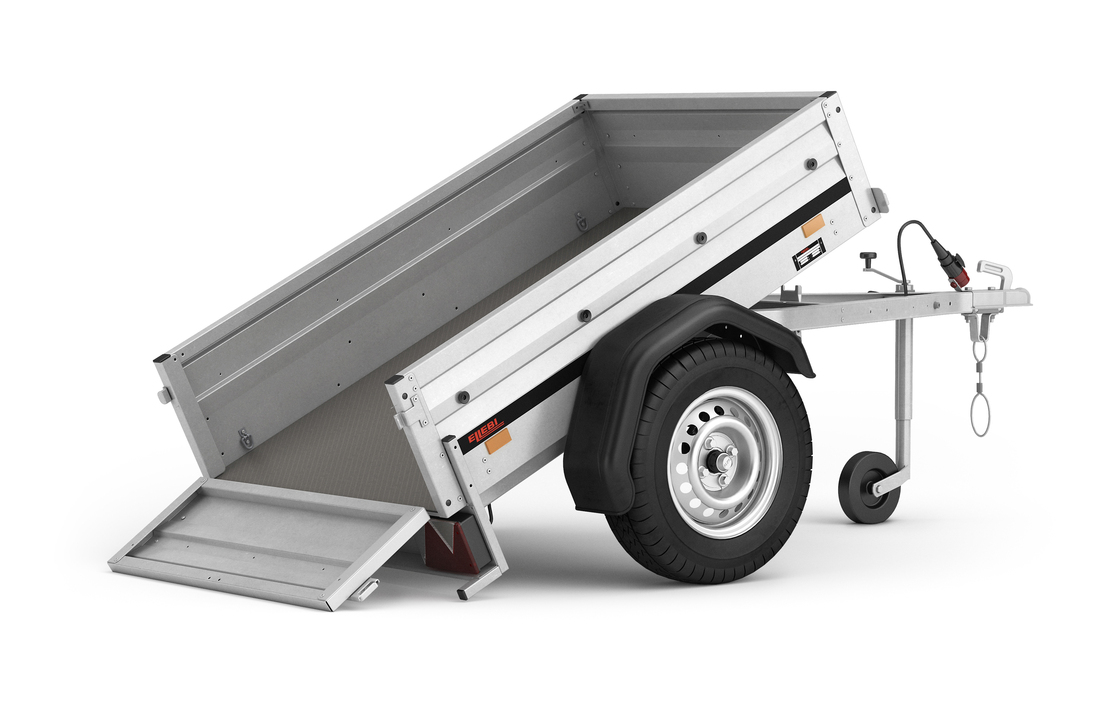

Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Strong side locks
High quality side locks which firmly locks the panels
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
Specifications
| 1150SUB500 | |
| Article number | 313144 |
| Gross weight (kg) ? | 600 |
| Load (kg) ? | 400 |
| Unladen weight (kg) | 100 |
| Int dimensions (cm) ? | 144x94x35 |
| Ext dimensions (cm) ? | 239x137x84 |
| Loading height (mm) | 545 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |
| Tip | Yes |
| Type of tip | Manual |
| Tip-protection | Yes |
| Brakes | No |
| Number of axels | 1 |
| Tyre dimension | 145/80R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | No |
| Coupling | Steel sheet |
| Internal lashing eyes | 4 |
| Premounted cover buttons | Yes |
| EAN | 5702623131448 |
Useful with
Propstand kit
For 1205S, ES200
Stop wedge
Black plastic 800kg (max total weight 2500kg)Art nr 306828
High side extension kit 35 cm
Steel, 940x1440x350mm , for 1150
Jockey wheel kit
With mounting kit and clamp. Max vertical load on JW 125kg
Mesh side kit 50 cm
950x1440x500mm loose legs, complete for 1150S (2018-)
Support bar alu
Adjustable 1000-1450mm. Price per pieceArt nr 313032
Meshside cover 45 cm
1010x1520x450mm gray, for 1150, ES150Art nr 302624
Flat cover
1010x1510mm incl. elastic cord to 1150, ES150Art nr 302678
Stand
Ladder rack 1000mm widht, for 1150
Flat cover
1520x1010 to 1150SArt nr 101538
High cover with stand 81 cm
940x1440x1170mm gray, canopy height 80 cm with square profiles, for 1150, ES150
Holder for wheel chock
Black plastic, fits to 306828Art nr 306829
Trailer top 35 cm
940x1440x450mm black, complete with mounting kit, for 1150, ES150
Transparts trailer lock
Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519Art nr 313945
High side extension kit 35 cm
Steel, 950x1440mm, for 1150 (2015-)
Spare wheel holder
For 4 holes 13" with bolt, kit and reinforcement plate for S-1000 (2015-)
