3251STB1300

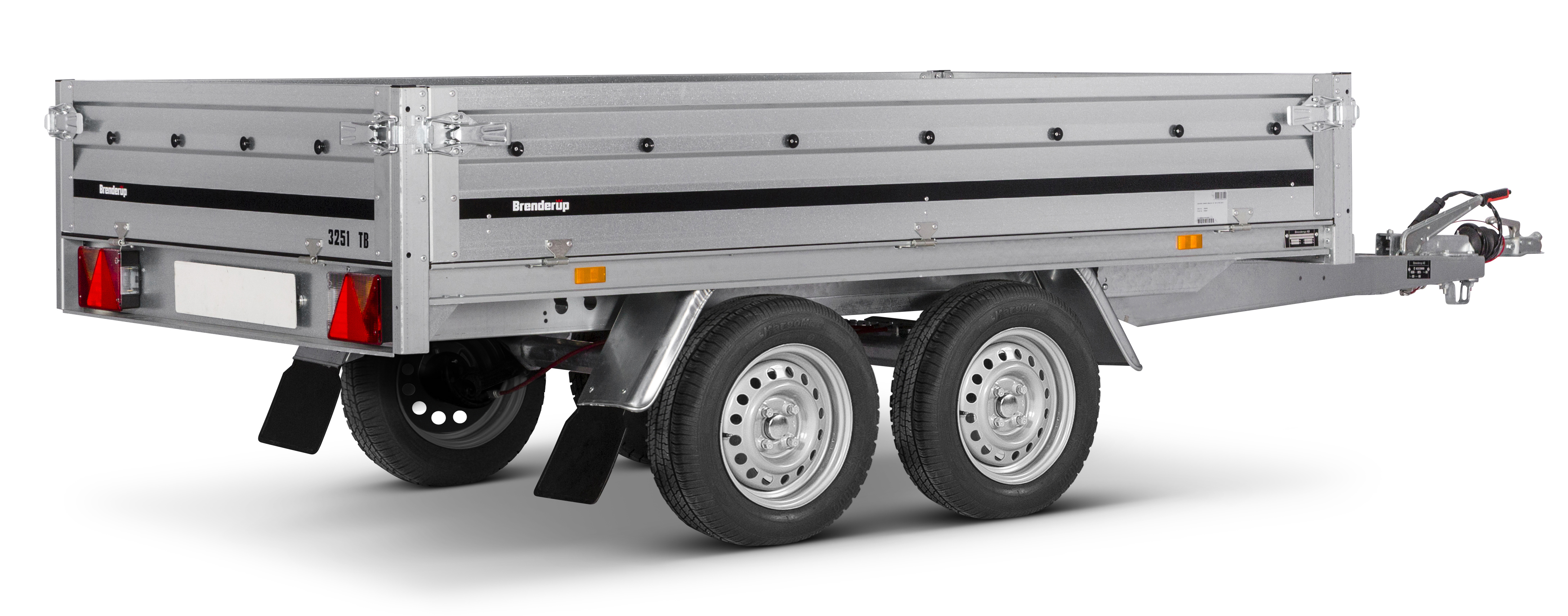

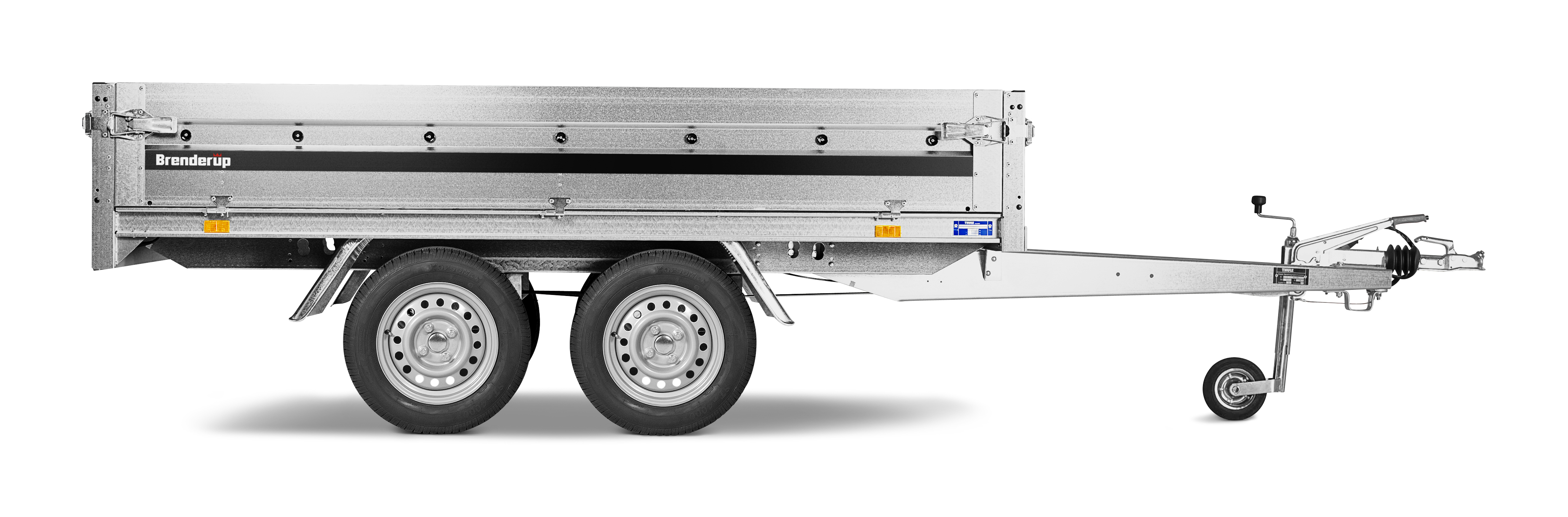

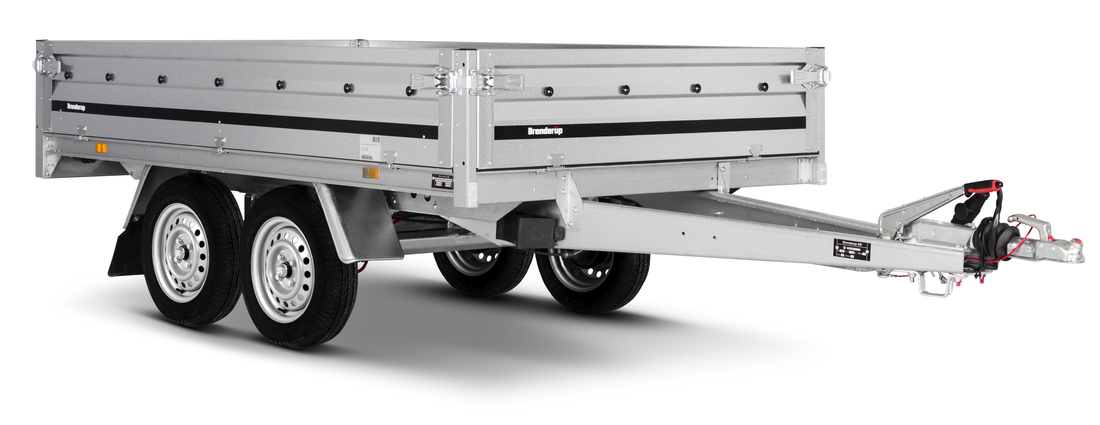

Twin axle, high built trailer with the wheels positioned under the flatbed to allow a wide bed while keeping the width of the trailer to minimum. This model have the possibility to fold front and back panels. Accessories are available. Images are for illustrative purposes only and may show optional equipment.
Features and benefits
Foldable side panels
All sides foldable for easier loading and unloading of goods of the trailer
Strong side panel
Firm sidepanel which increases the stability of the trailer
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
13-pol cable
The trailer is delivered with a modern 13-pol connector.
Strong side locks
High quality side locks which firmly locks the panels
Specifications
| 3251STB1300 | |
| Article number | 311399 |
| Gross weight (kg) ? | 1300 |
| Load (kg) ? | 1050 |
| Unladen weight (kg) | 250 |
| Int dimensions (cm) ? | 250x142x35 |
| Ext dimensions (cm) ? | 409x150x99 |
| Loading height (mm) | 690 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | Yes |
| Tip | No |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 145/80Rx13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | No |
| Coupling | Steel sheet |
| Internal lashing eyes | 6 |
| Premounted cover buttons | Yes |
