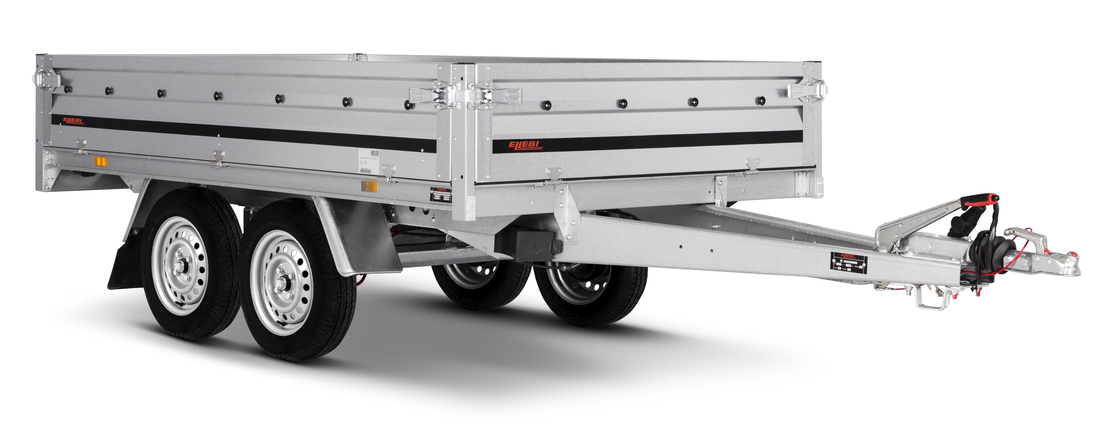

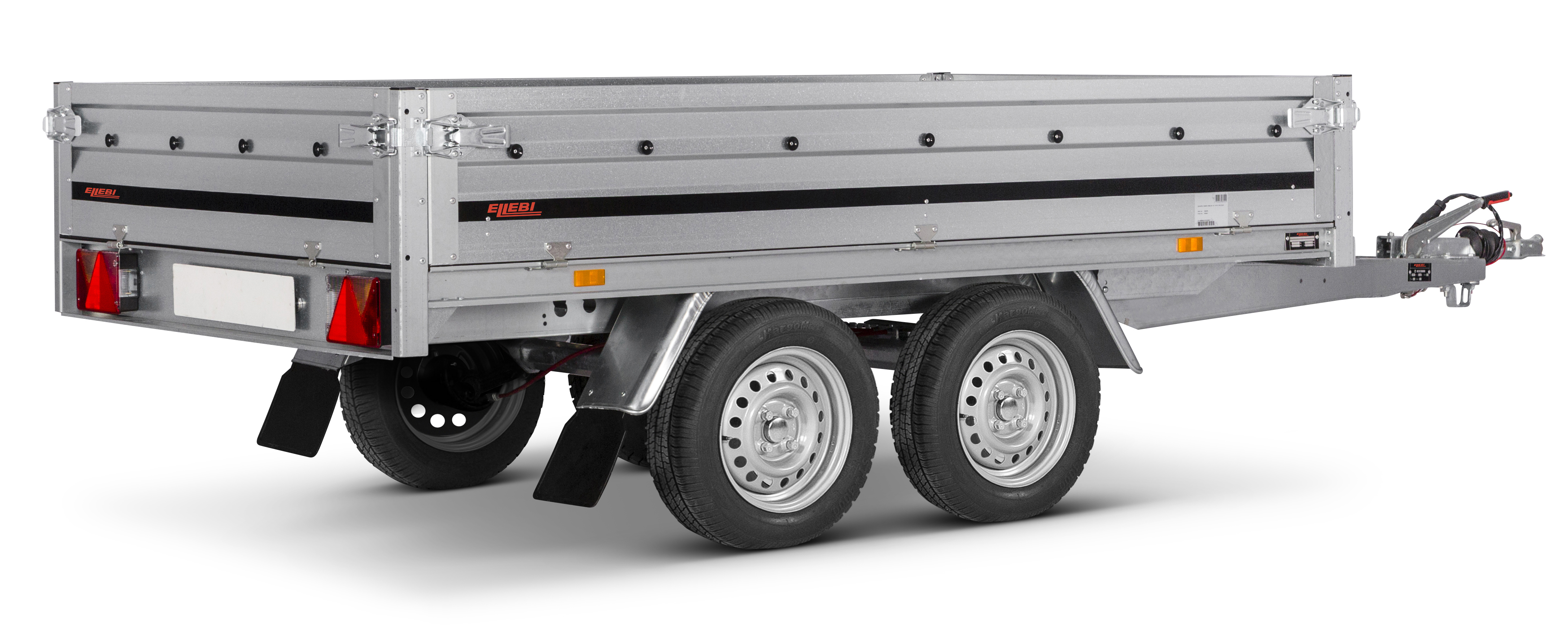

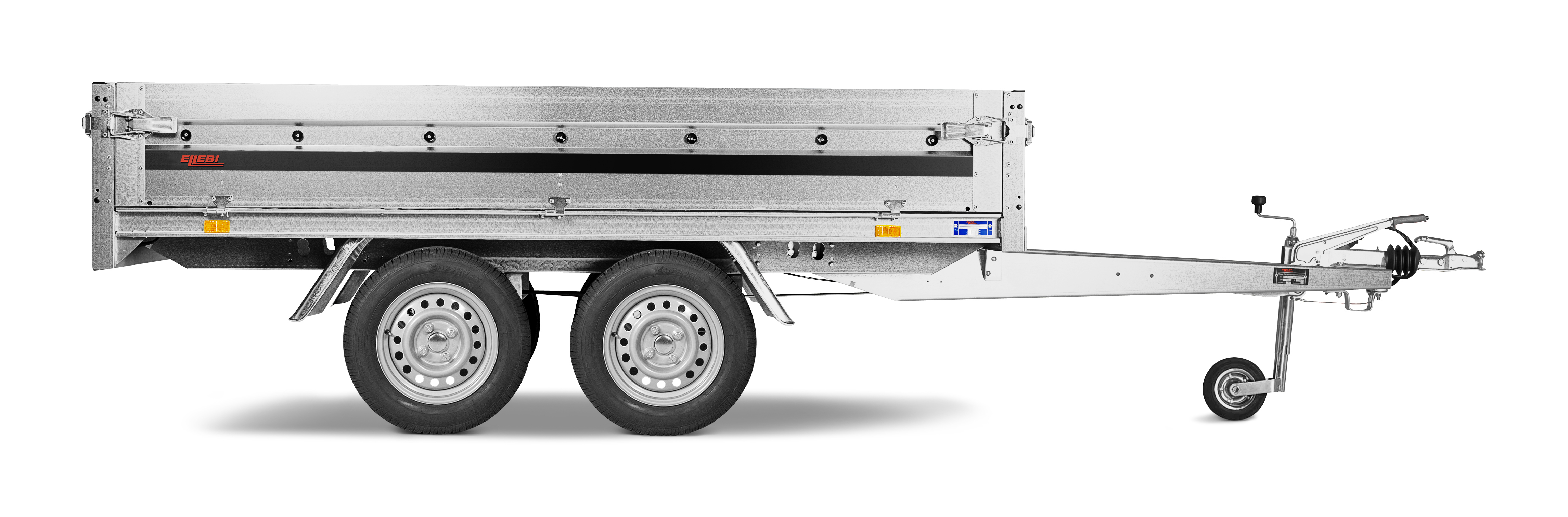

3251STB1000

Features and benefits

Foldable side panels

All sides foldable for easier loading and unloading of goods of the trailer

Cover buttons

The trailer is prepared for flat and high covers, attachment for covers pre-assembled

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Strong side locks

High quality side locks which firmly locks the panels

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Specifications Accessories Features and benefits

Specifications

3251STB1000
Article number 311302
Gross weight (kg) ? 1000
Load (kg) ? 750
Unladen weight (kg) 250
Int dimensions (cm) ? 250x142x35
Ext dimensions (cm) ? 409x150x99
Loading height (mm) 690
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels Yes
Tip No
Brakes Yes
Number of axels 2
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 6
Premounted cover buttons Yes
EAN 5702623113024

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Mesh side kit 50 cm

    1420x2500x500mm. With loose legs, complete for 3250/3251S (2018-)
    Art nr311540

  • Jockey wheel kit

    With mounting kit and clamp. Max vertical load on JW 125kg
    Art nr120328

  • Cargo net

    Black 1530x2600mm flexible net with elastic outer thread, for 3250S
    Art nr115285

  • Accessory kit 3250/ES250

    Grey Flat cover & jockey wheel including clamp and bolts, for ES250, 3250. Max vertical load on JW 125 kg
    Art nr302202

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Flat cover

    1500x2580 gray to 3250/3251, ES250
    Art nr302612

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Cargo net

    Black, 1500x2130mm for 3205S
    Art nr115284

  • Front stand

    Ladder rack 1420mm, complete for S-3000
    Art nr113770

  • Spare wheel holder

    For 4 holes 13" with bolt, kit and reinforcement plate for S-1000 (2015-)
    Art nr117275
