1. Front and back panel foldable
  2. 6 internal lashing eyes
  3. Tarpaulin buttons on side panels as standard

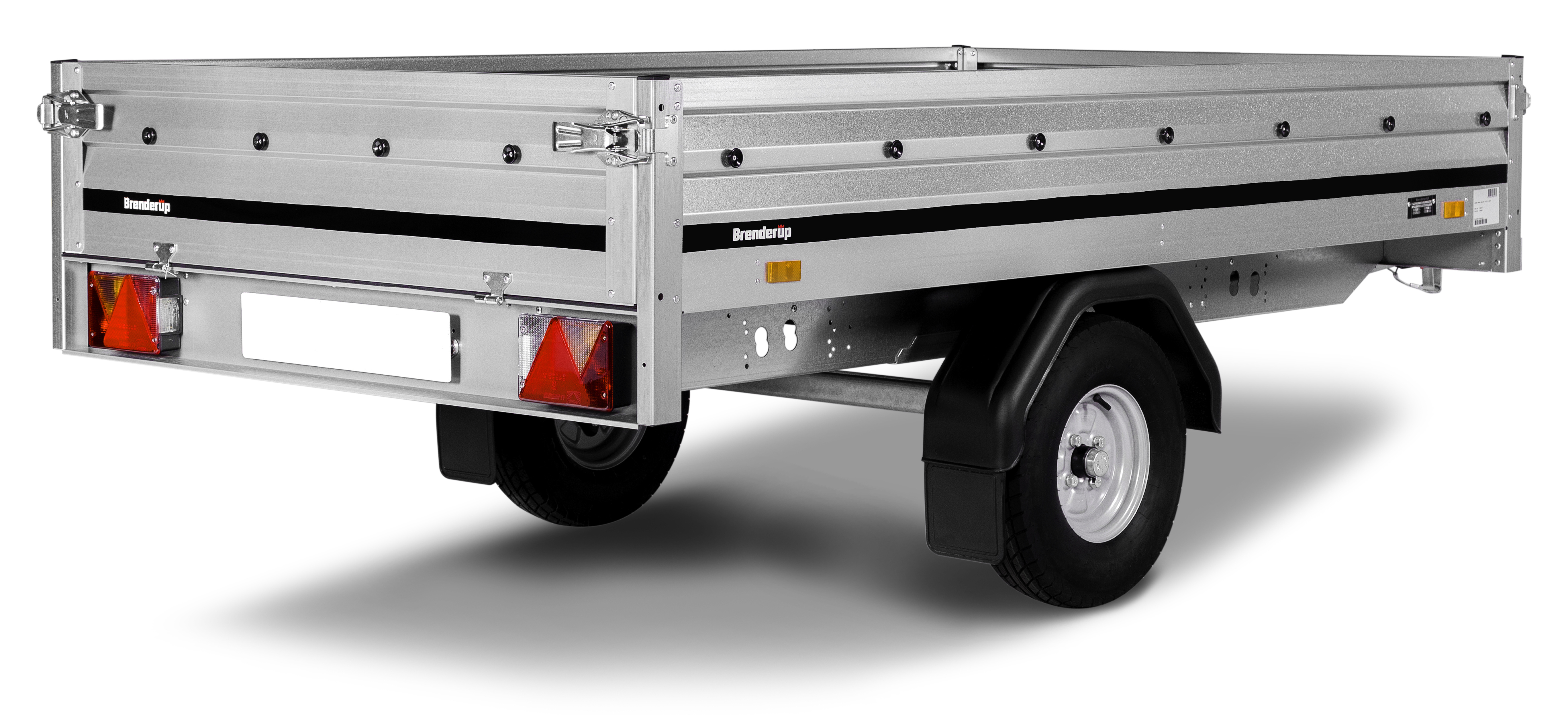

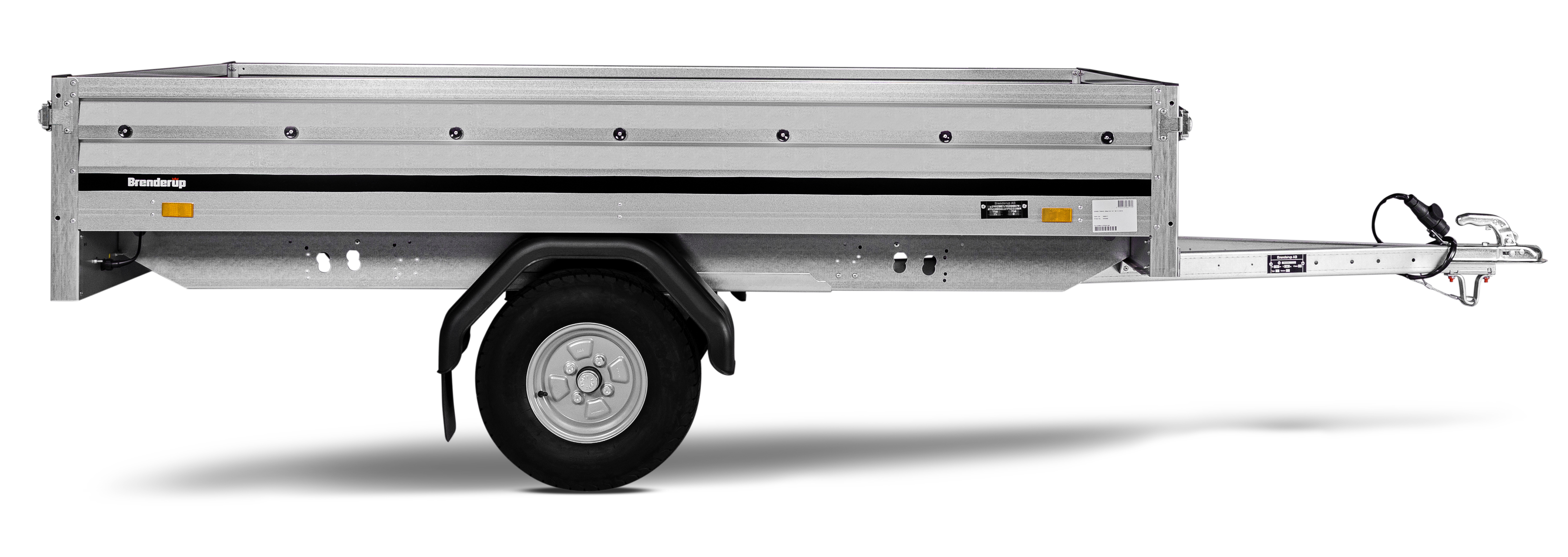

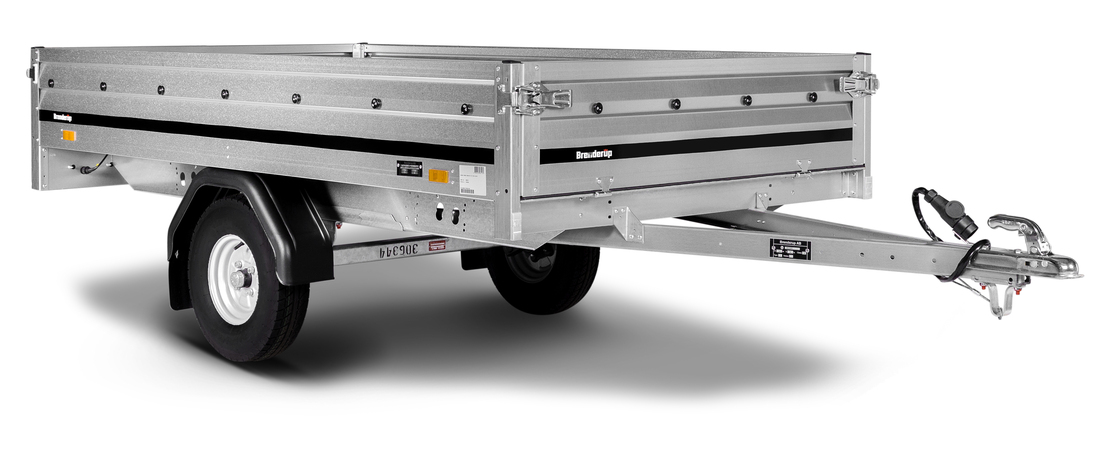

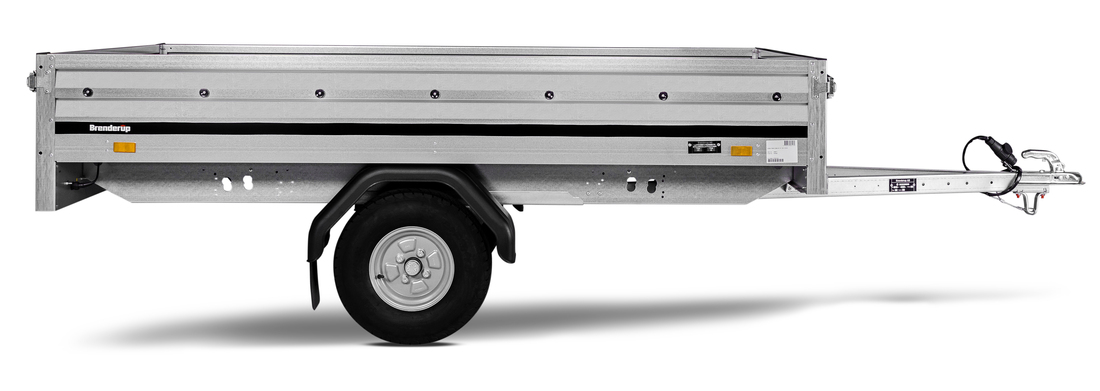

Single axle, high built trailer with the wheels positioned under the flatbed to allow a wide bed while keeping the width of the trailer to minimum. This model have the possibility to fold front and back panels. Accessories are available. Images are for illustrative purposes only and may show optional equipment.
Replaced by
Specifications Accessories


Article number 306515
Gross weight (kg) ? 750
Load (kg) ? 588
Unladen weight (kg) 162
Int dimensions (cm) ? 251x142x35
Ext dimensions (cm) ? 371x155x97
Loading height (mm) 630
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip No
Brakes No
Number of axels 1
Tyre dimension 5.00-10C
No of wheelbolts 4
Rim type Steel
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 6
Premounted cover buttons Yes
