3250SB750

  1. Front and back panel foldable
  2. 6 internal lashing eyes
  3. Tarpaulin buttons on side panels as standard

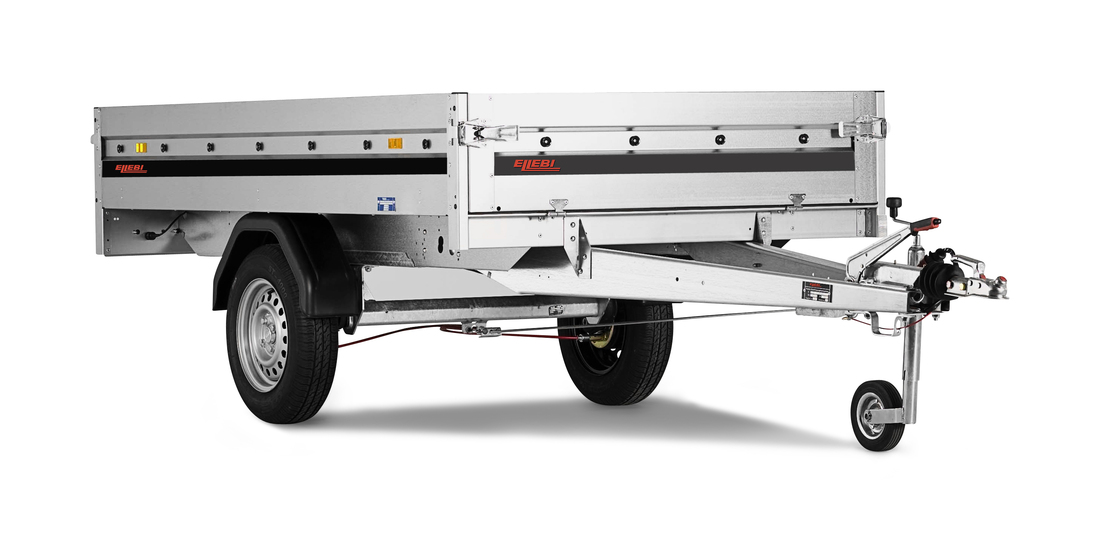

Single axle, high built trailer with the wheels positioned under the flatbed to allow a wide bed while keeping the width of the trailer to minimum. This model have the possibility to fold front and back panels. Accessories are available. Images are for illustrative purposes only and may show optional equipment.

Features and benefits

Cover buttons

The trailer is prepared for flat and high covers, attachment for covers pre-assembled

Foldable back panel

Foldable back panel to easier load the trailer and also enable you to transport longer goods.

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Strong side locks

High quality side locks which firmly locks the panels

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Specifications Accessories Features and benefits

Specifications

3250SB750
Article number 316906
Gross weight (kg) ? 750
Load (kg) ? 510
Unladen weight (kg) 240
Int dimensions (cm) ? 250x142x35
Ext dimensions (cm) ? 409x150x99
Loading height (mm) 655
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels No
Tip No
Brakes Yes
Number of axels 1
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Straight
Adaptercable 13
Jockey wheel No
Coupling Steel sheet
Internal lashing eyes 6
Premounted cover buttons Yes
EAN 5702623169069

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Mesh side kit 50 cm

    1420x2500x500mm. With loose legs, complete for 3250/3251S (2018-)
    Art nr311540

  • Jockey wheel kit

    With mounting kit and clamp. Max vertical load on JW 125kg
    Art nr120328

  • Cargo net

    Black 1530x2600mm flexible net with elastic outer thread, for 3250S
    Art nr115285

  • Accessory kit 3250/ES250

    Grey Flat cover & jockey wheel including clamp and bolts, for ES250, 3250. Max vertical load on JW 125 kg
    Art nr302202

  • Flat cover

    1500x2580 gray to 3250/3251, ES250
    Art nr302612

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Cargo net

    Black, 1500x2130mm for 3205S
    Art nr115284

  • Front stand

    Ladder rack 1420mm, complete for S-3000
    Art nr113770

  • Spare wheel holder

    For 4 holes 13" with bolt, kit and reinforcement plate for S-1000 (2015-)
    Art nr117275
