Stop wedge
Black plastic 800kg (max total weight 2500kg)
| Art nr | 306828 |

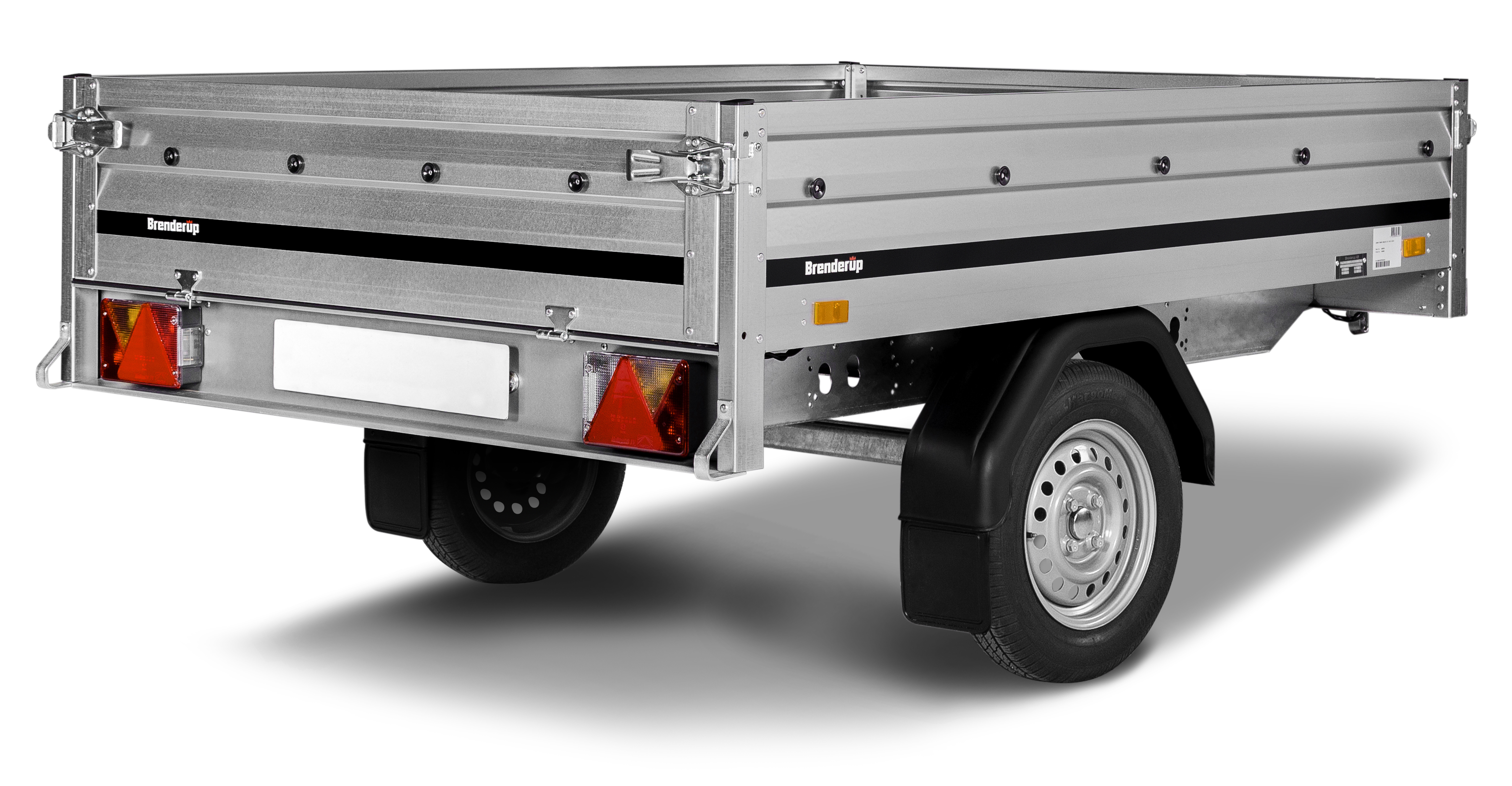

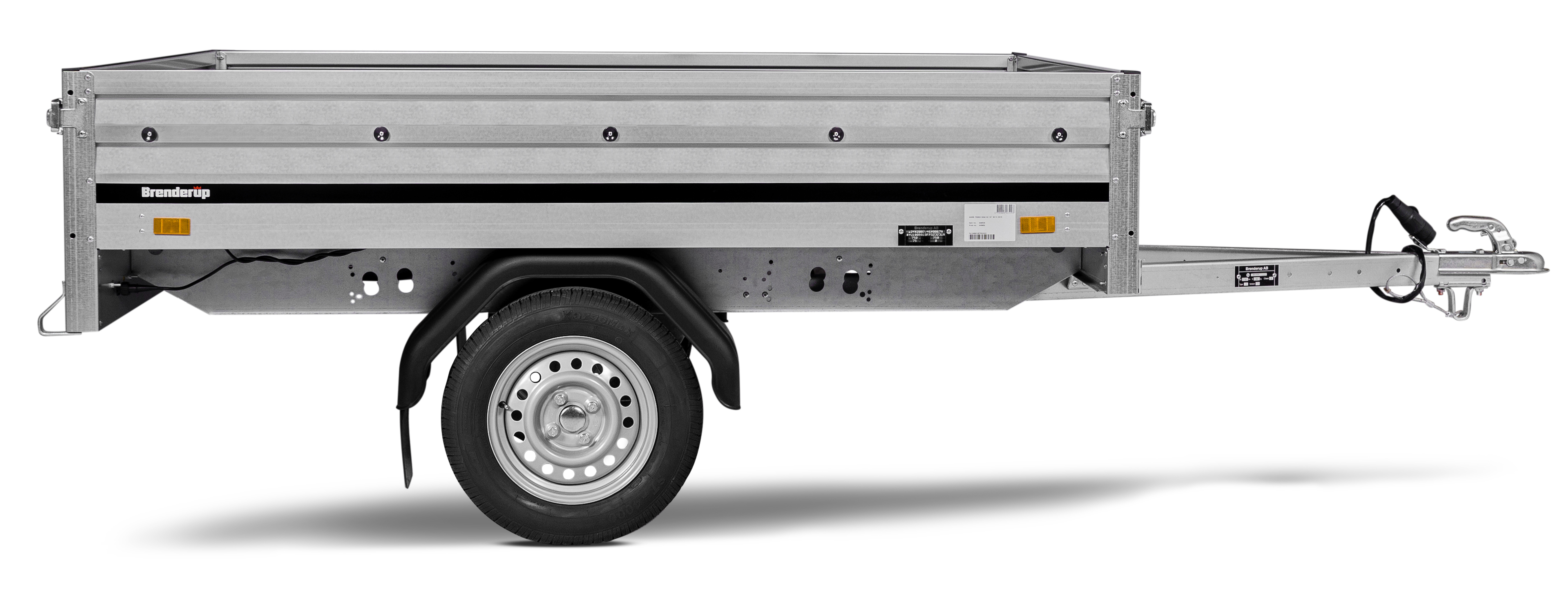

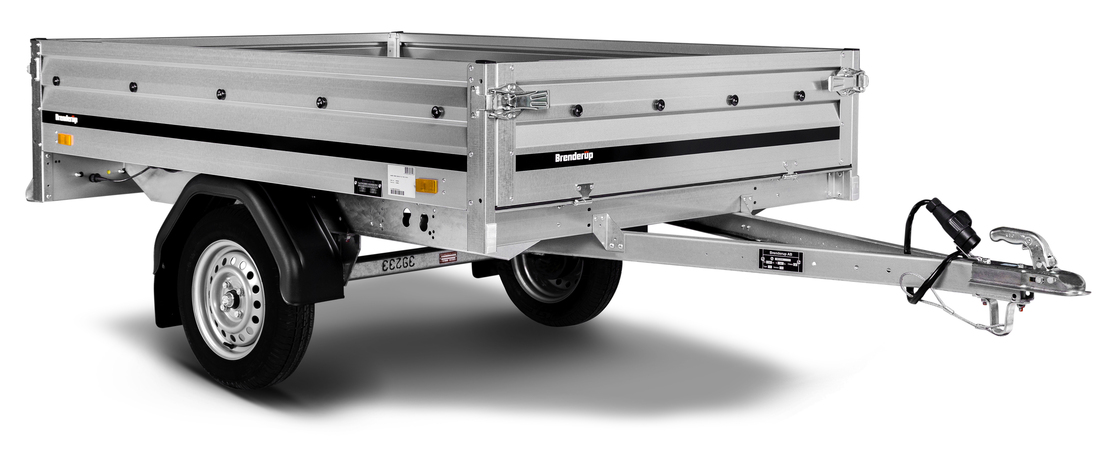

3205SUB500
Features and benefits
Strong side panel
Firm sidepanel which increases the stability of the trailer
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Strong side locks
High quality side locks which firmly locks the panels
13-pol cable
The trailer is delivered with a modern 13-pol connector.
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
Specifications
| 3205SUB500 | |
| Article number | 310983 |
| Gross weight (kg) ? | 500 |
| Load (kg) ? | 355 |
| Unladen weight (kg) | 145 |
| Int dimensions (cm) ? | 205x142x35 |
| Ext dimensions (cm) ? | 327x150x99 |
| Loading height (mm) | 690 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | No |
| Tip | No |
| Brakes | No |
| Number of axels | 1 |
| Tyre dimension | 145/80R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | No |
| Coupling | Steel sheet |
| Internal lashing eyes | 4 |
| Premounted cover buttons | Yes |
| EAN | 5702623109836 |
Useful with
Mesh side kit 50 cm
1420x2040x500mm, with loose legs, complete for 3205S (2018-)
Support bar alu
Adjustable 1400-2200mm. Price per piece, only available in 12 packsArt nr 313033
Railing kit
2000x100mm steel, for 1205, 3205, ES200. Mounted on top of longitudinal sides.
High cover with stand 83 cm
1420x2045x1170 mm gray, canopy height 80cm with square profiles, for 3205
Bracket for jockey wheel
50x6x651 F320U, ES250
Meshside cover 50 cm
1500x2120x500mm dark gray, to 3205Art nr 302617
Lashing ring
25mmArt nr 101532
Flat cover
1510x2130x75 gray to 3205Art nr 302613
Cover stand 117 cm
1481x2098x1170mm (3205)
Holder for wheel chock
Black plastic, fits to 306828Art nr 306829
Accessory kit
Grey flatcover and Jockey wheel including clamp and bolts. For 3205. Max vertical load on JW 125 kgHigh cover 83 cm
1500x2100x1170mm gray for cover stand 3205Art nr 310467
Transparts trailer lock
Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519Art nr 313945
High side extension kit 35 cm
Steel, 1420x2500x300mm complete with locks, for 3250
Toolbox
300x1080mm, height 330mm. Complete, including srew kit for mounting on squareprofile drawbars, black plastic. For mounting on high drawbars add 4 U-bolts M12 74 / 135mm and 8 hex nuts M12
High side extension kit 35 cm
Steel, 1420x2040mm, for 3205
Cargo net
Black, 1500x2130mm for 3205SArt nr 115284
Front stand
Ladder rack 1420mm, complete for S-3000
Downloadable files
3205SUB500
