Lashing eye kit
Bended with nut, for S-5000
5420ATB2000

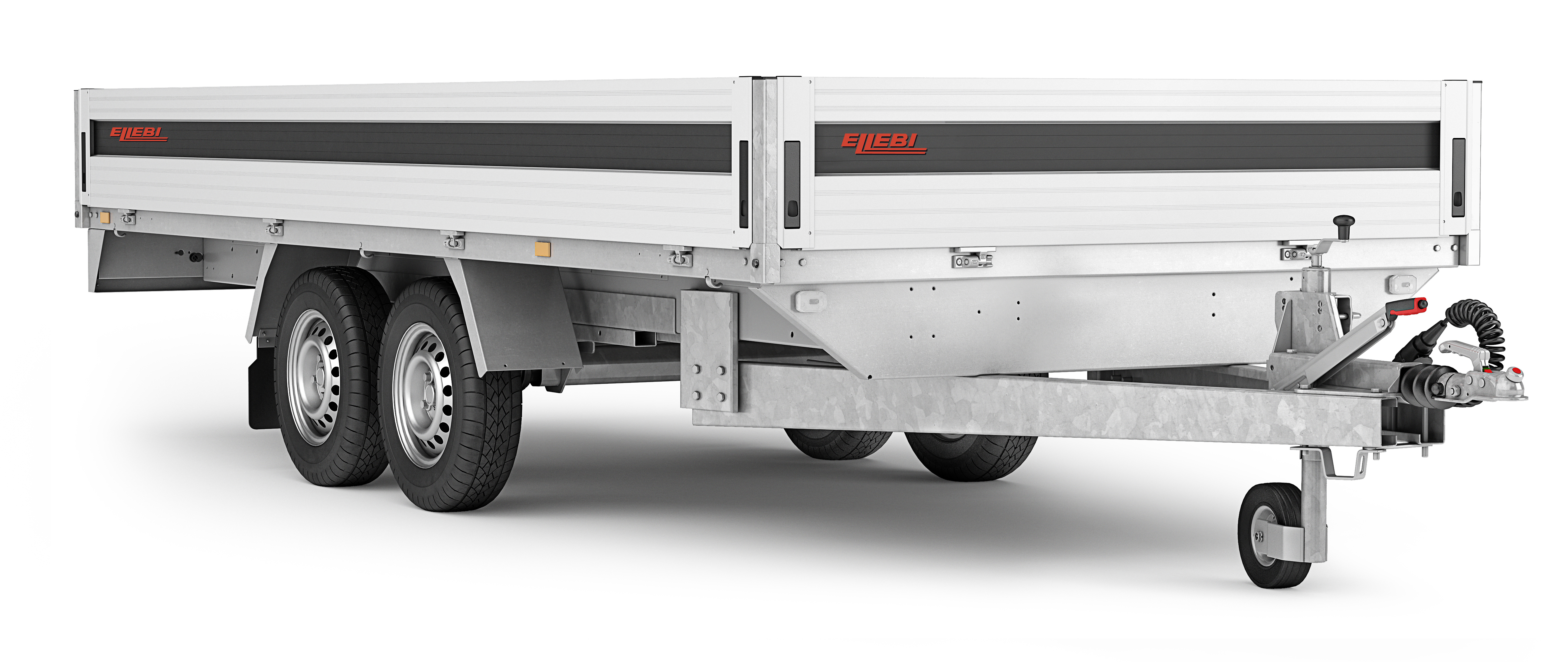

Features and benefits
Foldable side panels
All sides foldable for easier loading and unloading of goods of the trailer
External hooks
External hooks for securing your load
Steel profile protects the platform
Better protection when loading goods on the trailer
Strong side panel
Firm sidepanel which increases the stability of the trailer
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
Integrated side locks
Integrated side locks into the side panels
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Foldable front panel
Foldable front panel to easier load the trailer and also enable you to transport longer goods.
Specifications
| 5420ATB2000 | |
| Article number | 308353 |
| Gross weight (kg) ? | 2000 |
| Load (kg) ? | 1480 |
| Unladen weight (kg) | 520 |
| Int dimensions (cm) ? | 417x180x34 |
| Ext dimensions (cm) ? | 544x186x90 |
| Loading height (mm) | 714 |
| Type of sidepanel | Aluminum |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | Yes |
| Tip | No |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Coupling | Steel sheet |
| Internal lashing eyes | 8 |
| External hooks | 6 |
| Premounted cover buttons | No |
| EAN | 5702623083532 |
