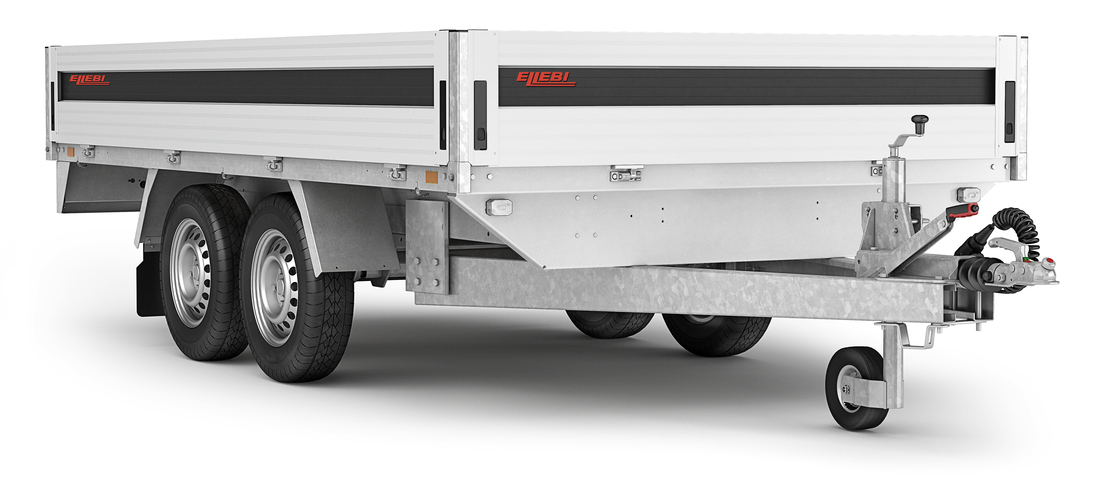

5325ATB1800

Features and benefits

Foldable side panels

All sides foldable for easier loading and unloading of goods of the trailer

External hooks

External hooks for securing your load

Steel profile protects the platform

Better protection when loading goods on the trailer

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Integrated side locks

Integrated side locks into the side panels

13-pol coil cable

A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.

Specifications Accessories Features and benefits

Specifications

5325ATB1800
Article number 311322
Gross weight (kg) ? 1800
Load (kg) ? 1335
Unladen weight (kg) 465
Int dimensions (cm) ? 325x180x34
Ext dimensions (cm) ? 451x186x90
Loading height (mm) 714
Type of sidepanel Aluminum
Foldable back panel Yes
Foldable front panel Yes
Foldable side panels Yes
Tip No
Brakes Yes
Number of axels 2
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Coupling Steel sheet
Internal lashing eyes 8
External hooks 6
Premounted cover buttons No
EAN 5702623113222

Useful with

  • Support bar alu

    Adjustable 1400-2200mm. Price per piece, only available in 12 packs
    Art nr313033

  • Flat cover

    1950x3385 mm, for TT5325 and S-5000
    Art nr315402

  • Mounting kit

    For coverstand (5000, 6000, RT)
    Art nr101321

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Toolbox

    Med plastlock. S5000 komplett
    Art nr309631

  • Front stand

    Ladder rack 1850x770mm, for 3-way tip (2002-), S-5000
    Art nr113509

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Shock absorber kit

    4 pieces. Up to 1500kg for single axle and 3000kg for boogi axles
    Art nr309626

  • Loading ramp

    Steel ramps in pair, complete with ramp storage. Max load 1400kg / ramp for S-5000
    Art nr309638

  • Loading ramp

    Aluminium, 2560mm for S-5000
    Art nr309637

  • Flat cover kit

    1950x3385mm, kit with 24 cover knobs and rivets for TT5325, 5325
    Art nr315497
