New

UT4000STB2500

  1. Winch and hydralic tip is standard
  2. Ramp and tilt gives low loading angle
  3. Internal lashing eyes to secure load

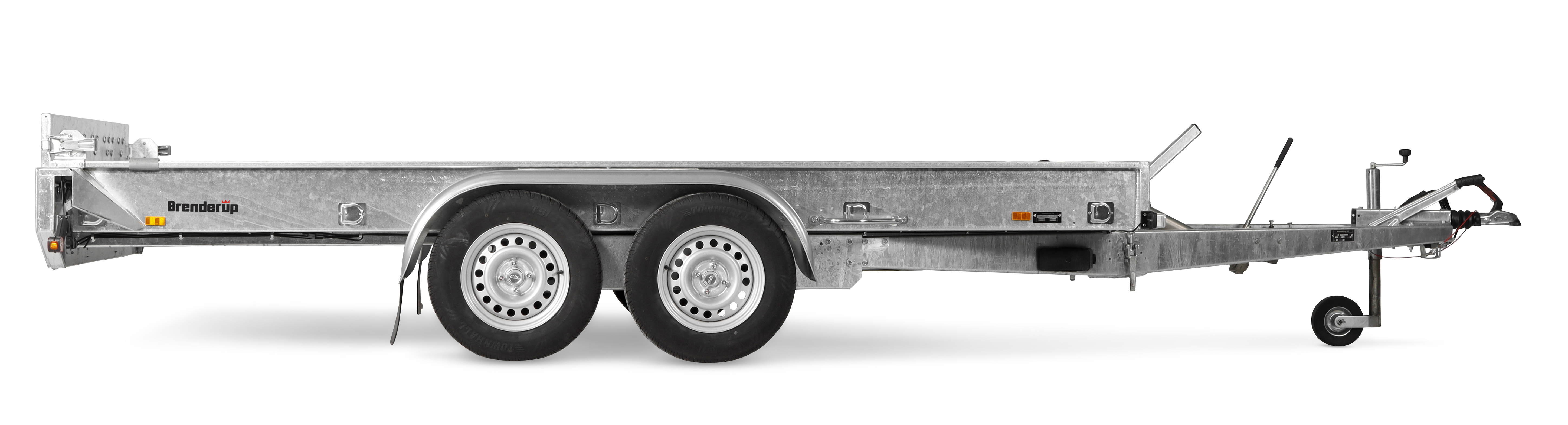

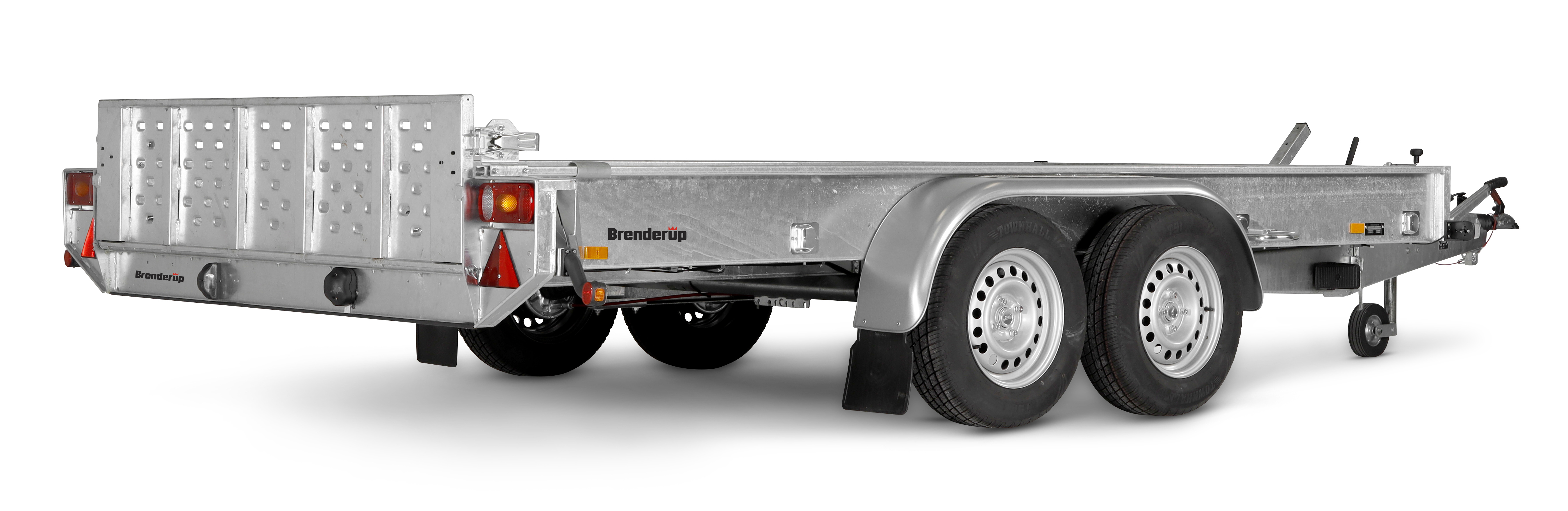

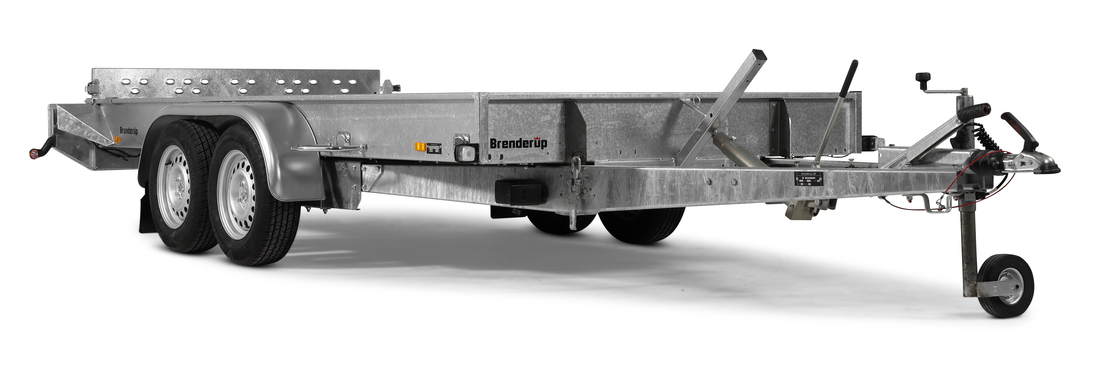

Solidly constructed, tippable trailers for professional users transporting construction equipment, cement mixers, garden equipment and the like. Tailboard with access ramp, recessed tie eyes and winch is standard equipment. Images are for illustrative purposes only and may show optional equipment.

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Prepared for winch

Prepared for winch

Robust construction

Robust construction with extra bottom stiffeners.

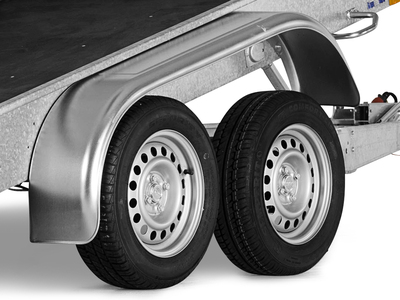

Standable mudguards

Standable mudguards and extra steps for easier access to the machine loaded on the trailer

Low loading angle

A low loading angle makes it easier to load and unload all sorts of machines, Skylifts, lawn movers etc

Tiltable

Helps you to easier unload your garden waste or load your lawn mover or bicycle to the trailer

Heavy duty lashing eyes

Internal integrated lashing eyes, inserted in the steel frame

13-pol coil cable

A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.

Specifications Accessories Features and benefits

Specifications

UT4000STB2500
Article number 313852
Gross weight (kg) ? 2500
Load (kg) ? 1895
Unladen weight (kg) 605
Int dimensions (cm) ? 399x180x24
Ext dimensions (cm) ? 595x230x104
Loading height (mm) 505
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel No
Foldable side panels No
Tip Yes
Type of tip Hydraul-manual
Tip-protection No
Loading angle (°) 15
Ramp 1 x (1,8x0,4m)
Winch No
Brakes Yes
Number of axels 2
Tyre dimension 195/70R14
No of wheelbolts 5
Rim type Steel
Mudguards Standable
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 10
Premounted cover buttons No

Useful with

  • Winch Warn electric 5000DC incl. mountingkit

    With the capacity to move heavy loads quickly and easily. With an incredible traction, the job becomes easier and more fun. Traction force 2268kg, Remote control 3.7m cable (included). Line 18.3 m. Motor: Permanent magnet. Brake: Dynamic and mechanical. Voltage: 12 volts DC. Coupling (disengagement): Via lever. Drum diameter: 7.62 cm. Gearbox: 3-stage planetary gear. Lin leader: Hawse. Exchange: 216: 1
    Art nr312765

  • Alu X10 195/70R14 (mounted)

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg, mounted on trailer
    Art nr316170M

  • Winch Warn electric 5000DC

    With the capacity to move heavy loads quickly and easily. With an incredible traction, the job becomes easier and more fun. Traction force 2268kg, Remote control 3.7m cable (included). Line 18.3 m. Motor: Permanent magnet. Brake: Dynamic and mechanical. Voltage: 12 volts DC. Coupling (disengagement): Via lever. Drum diameter: 7.62 cm. Gearbox: 3-stage planetary gear. Lin leader: Hawse. Exchange: 216: 1
    Art nr312764

  • Electric Winch Warn 5000DC incl. mounting kit (mount.)

    With the capacity to move heavy loads quickly and easily. With incredible traction, the job becomes easier and more fun. Traction 2268kg, Remote control 3.7 m cable (included). Lina 18.3 m. Engine: Permanent magnet. Brake: Dynamic and mechanical. Volt: 12 volts DC. Coupling (decoupling): Via lever. Drum diameter: 7.62 cm. Gearbox: 3 stage planetary gearbox. Line manager: Hawse. Gear: 216: 1
    Art nr312765M

  • Alu X10 195/70R14

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg
    Art nr316170
