Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

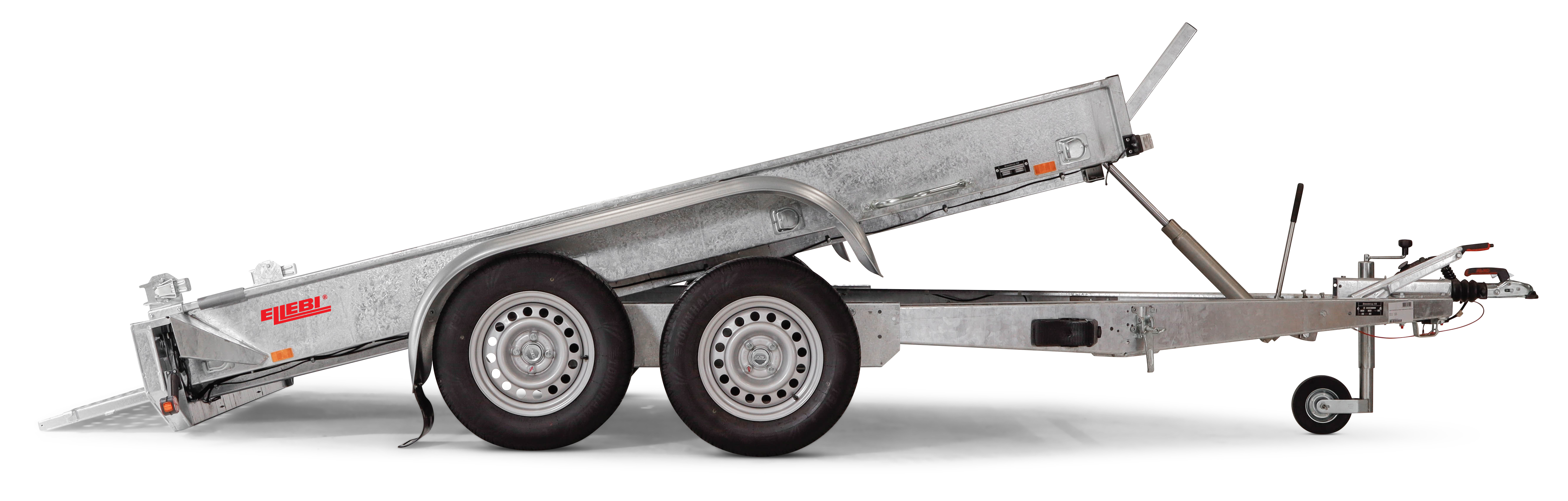

Hydraulic tip as standard equipment
Extra stiffeners on ramp that makes it secure to load the trailer with heavy objects.
Robust construction with extra bottom stiffeners.
Internal integrated lashing eyes, inserted in the steel frame
A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.
| UT3100STB2500 | |
| Article number | 313853 |
| Gross weight (kg) ? | 2500 |
| Load (kg) ? | 1935 |
| Unladen weight (kg) | 565 |
| Int dimensions (cm) ? | 313x180x24 |
| Ext dimensions (cm) ? | 478x230x104 |
| Loading height (mm) | 505 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |
| Tip | Yes |
| Type of tip | Hydraul-manual |
| Tip-protection | No |
| Loading angle (°) | 15 |
| Ramp | 1 x (1,8x0,4m) |
| Winch | No |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 195/70R14 |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Mudguards | Standable |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Internal lashing eyes | 8 |
| Premounted cover buttons | No |
| Coupling | Steel sheet |
| Art nr | 316170M |
| Art nr | 316170 |
