Two way cylinder
Double action (push & pull). For S-6000, complete
6520TB3500
Features and benefits
Hydraulic tip
Hydraulic tip as standard equipment
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

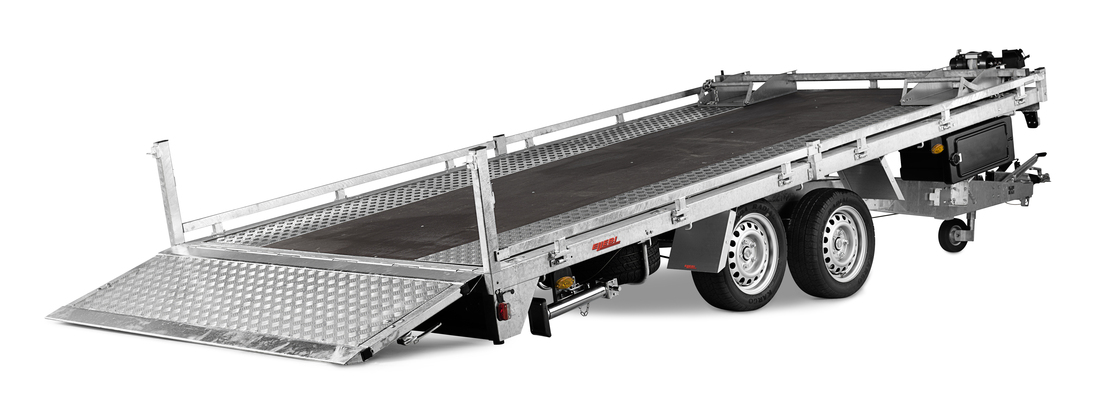

Low loading angle and ramp
Low loading angle and ramp makes it easy to load machines on the trailer
Heavy duty lashing eyes
Internal integrated foldable lashing eyes, inserted in the steel frame. Max 400 kg
13-pol coil cable
A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.
Specifications
| 6520TB3500 | |
| Article number | 311290 |
| Gross weight (kg) ? | 3500 |
| Load (kg) ? | 2449 |
| Unladen weight (kg) | 1051 |
| Int dimensions (cm) ? | 508x204x10 |
| Ext dimensions (cm) ? | 718x209x128 |
| Loading height (mm) | 630 |
| Type of sidepanel | Steel rail |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |
| Tip | Yes |
| Type of tip | Hydraul-manual |
| Tip-protection | No |
| Loading angle (°) | 8 |
| Ramp | 1 x (2x0,74m) |
| Winch | Manual |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 195/50R13C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Internal lashing eyes | 12 |
| Premounted cover buttons | No |
| Coupling | Casted |
