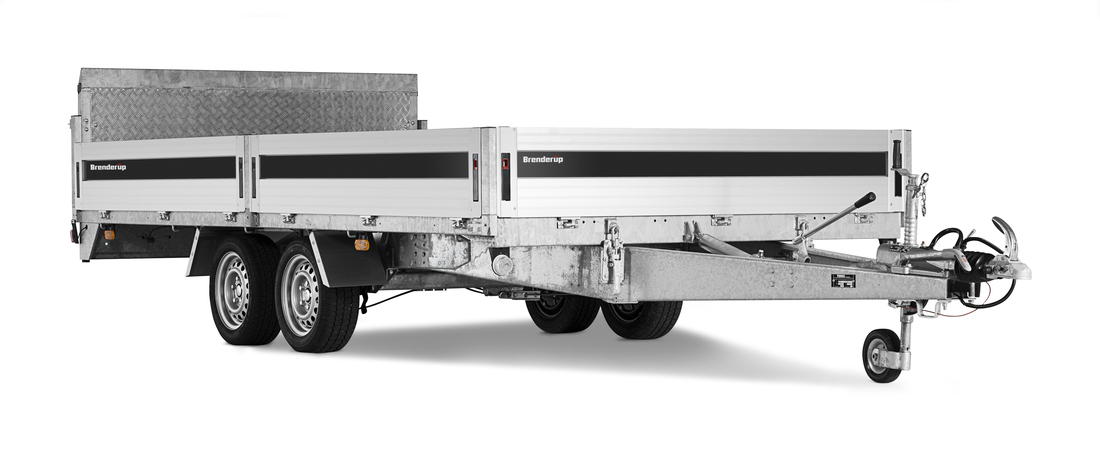

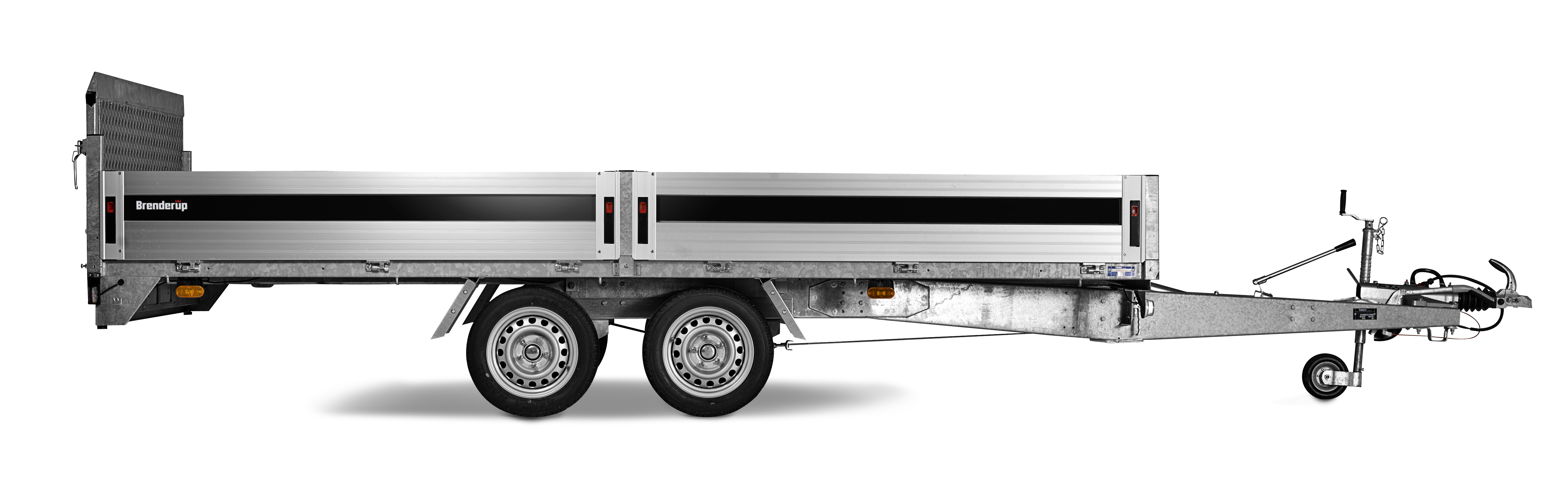

65203500

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Low loading angle and ramp

Low loading angle and ramp makes it easy to load machines on the trailer

Heavy duty lashing eyes

Internal integrated foldable lashing eyes, inserted in the steel frame. Max 400 kg

13-pol coil cable

A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.

Specifications Accessories Features and benefits

Specifications

65203500
Article number 108694
Gross weight (kg) ? 3500
Load (kg) ? 2554
Unladen weight (kg) 946
Int dimensions (cm) ? 508x204x0
Ext dimensions (cm) ? 710x209x65
Loading height (mm) 630
Tip Yes
Type of tip Manual
Tip-protection No
Loading angle (°) 8
Winch No
Brakes Yes
Number of axels 2
Tyre dimension 195/50R13C
No of wheelbolts 5
Rim type Steel
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 10
Premounted cover buttons No
Coupling Casted

Useful with

  • Two way cylinder

    Double action (push & pull). For S-6000, complete
    Art nr114365

  • High cover 150 cm

    2040x5170x1500mm grey for cover stand (5520W, 6520)
    Art nr101310

  • Mounting kit

    For coverstand (5000, 6000, RT)
    Art nr101321

  • Transparts trailer lock

    Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
    Art nr312519

  • Winch bracket

    Short for winch, mounting plate fits Warn 4700 DC. Series 6000
    Art nr104020

  • Railing kit

    2050x5200mm, 3 sides alu extension, for 6520
    Art nr102046

  • Winch stand

    For manual winch, 420-520-620 / 205 S-6000
    Art nr103998

  • Toolbox

    Black plastic W=220 mm, L=645 mm, H=300 mm to S6000
    Art nr102051
