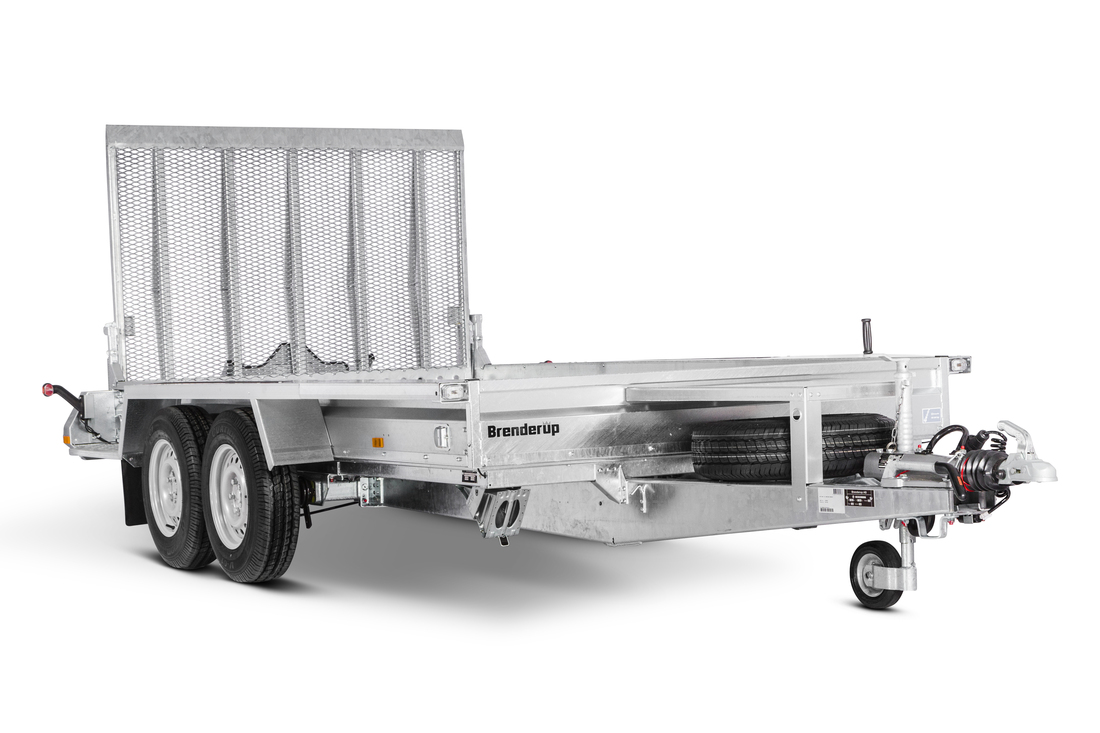

MT3651
- Spare wheel included and bucket rest is standard
- Heavy duty ramp
- Low loading angle
For contractors and plant users that need a safe solution to transport their machinery and excavators. Low loading angle thanks to the longer reinforced ramp. The long walkable mudguards makes it easy to step in and out of your vehicle. Bucket rest and heavy-duty jockey wheel is standard. Images are for illustrative purposes only and may show optional equipment.
Features and benefits
Ramp
Ramp with integrated ground support
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car
Bucket support
Bucket support included as standard equipment
Standable mudguards
Standable mudguards and extra steps for easier access to the machine loaded on the trailer
Spare wheel
Spare wheel included as standard equipment
Heavy duty lashing eyes
Internal integrated lashing eyes, inserted in the steel frame
13-pol coil cable
A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.
Ramp
Ramp with integrated ground support
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
13-pol coil cable
A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.
Specifications
| MT3651 | |
| Article number | 305975 |
| Gross weight (kg) ? | 3500 |
| Load (kg) ? | 2720 |
| Unladen weight (kg) | 780 |
| Int dimensions (cm) ? | 360x179x27 |
| Ext dimensions (cm) ? | 563x233x190 |
| Loading height (mm) | 500 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |
| Tip | No |
| Tip-protection | No |
| Loading angle (°) | 20 |
| Ramp | 1 x (1,78x1,43m) |
| Winch | No |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 185R14C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Mudguards | Standable |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Internal lashing eyes | 6 |
| Premounted cover buttons | No |
| Coupling | Casted |
