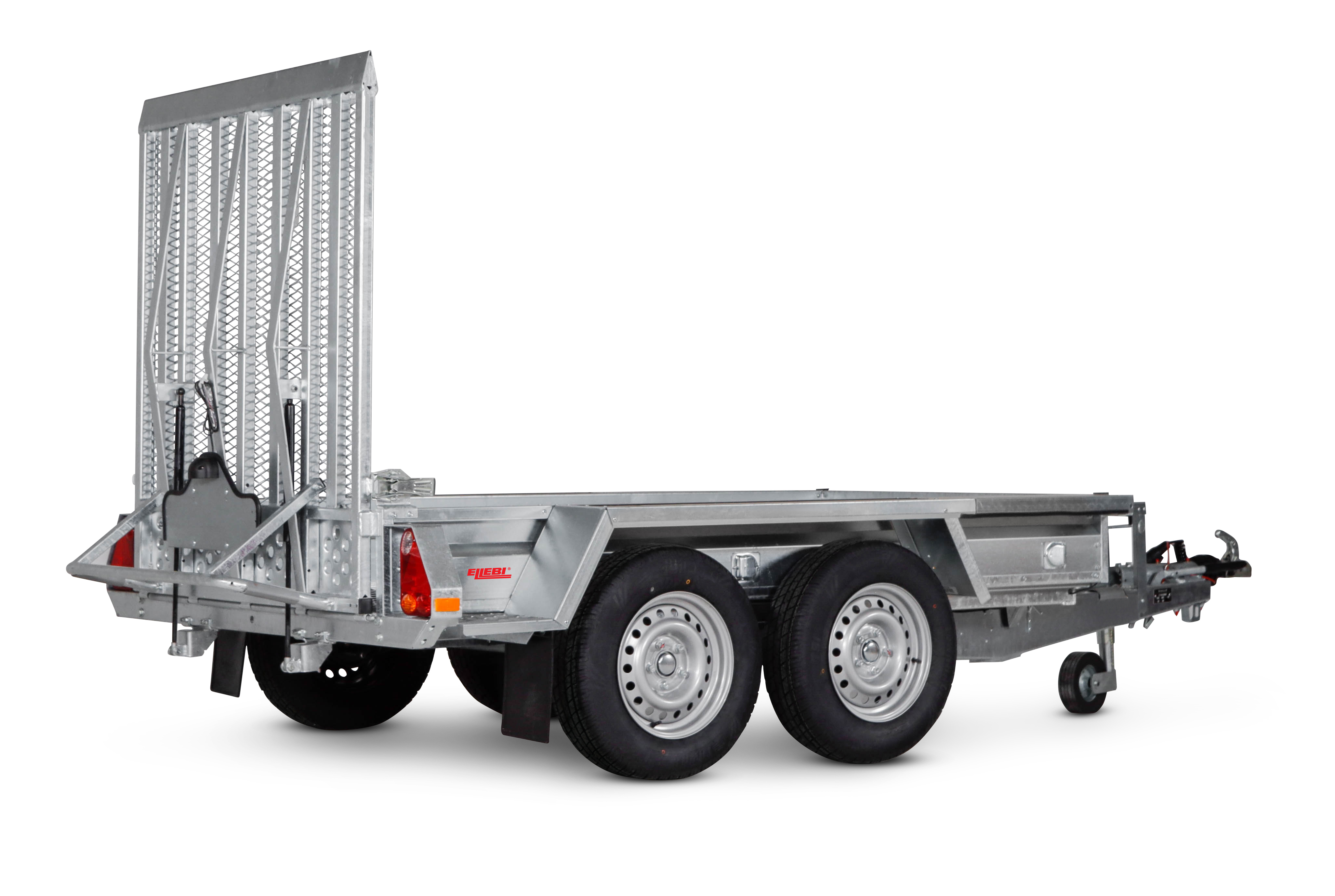

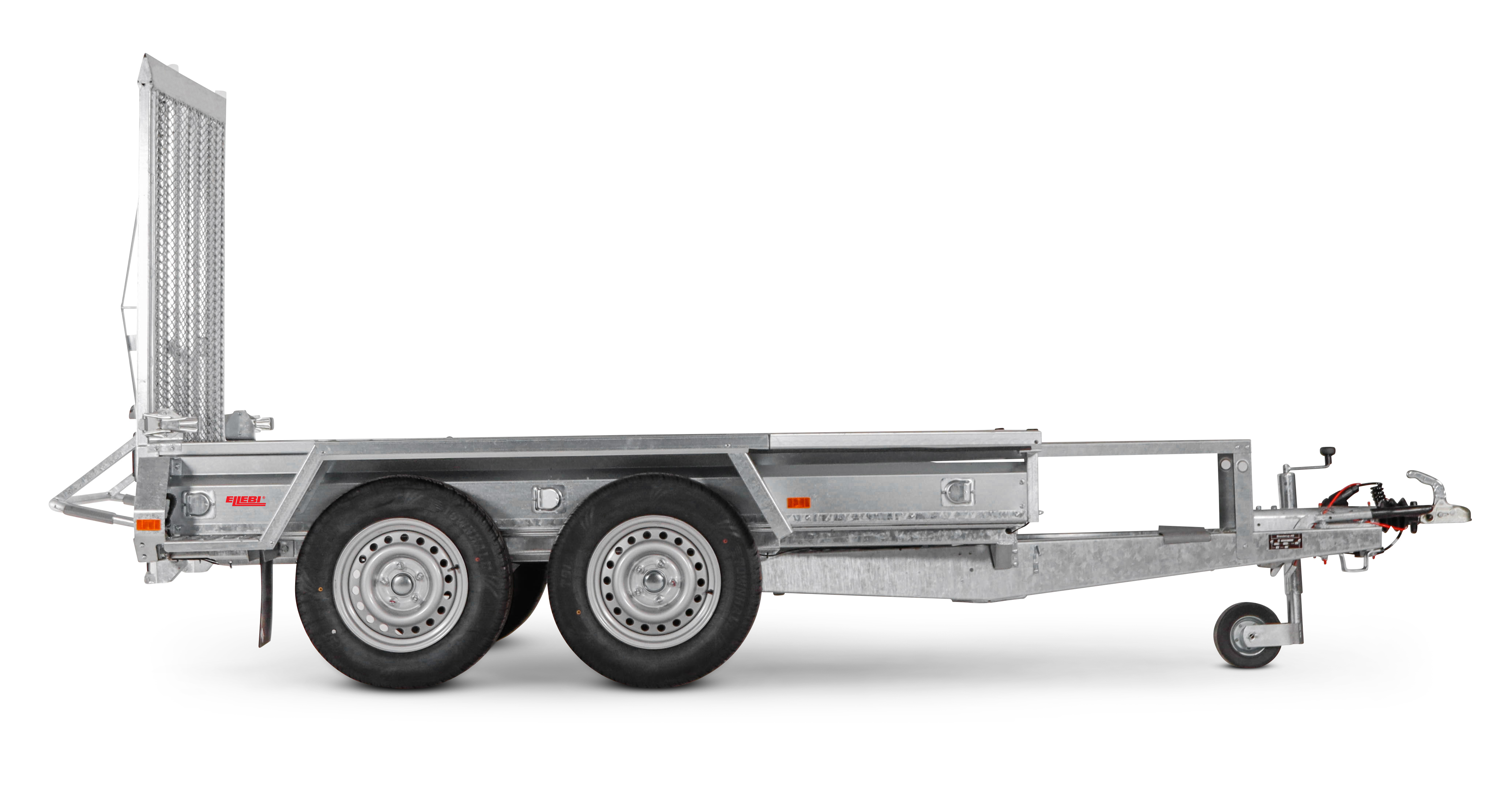

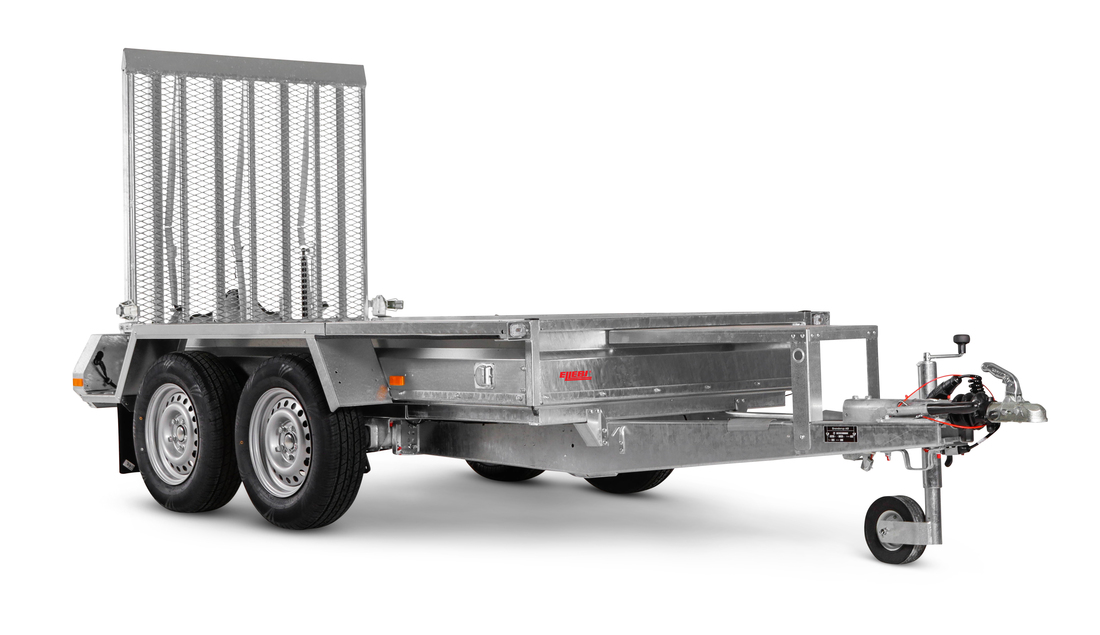

MT2610STB2600s

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Bucket support

Bucket support included as standard equipment

Heavy duty lashing eyes

Internal integrated lashing eyes, inserted in the steel frame

Spare wheel

Spare wheel included as standard equipment

Heavy duty lashing eyes

Internal integrated lashing eyes, inserted in the steel frame

Heavy duty steel floor

Perforated steel floor for long life and easy maintenace.

13-pol coil cable

A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.

Specifications Accessories Features and benefits

Specifications

MT2610STB2600s
Article number 313845
Gross weight (kg) ? 2600
Load (kg) ? 2070
Unladen weight (kg) 530
Int dimensions (cm) ? 261x126x27
Ext dimensions (cm) ? 445x181x191
Loading height (mm) 500
Type of sidepanel Steel
Foldable back panel Yes
Foldable front panel No
Foldable side panels No
Tip No
Tip-protection No
Loading angle (°) 20

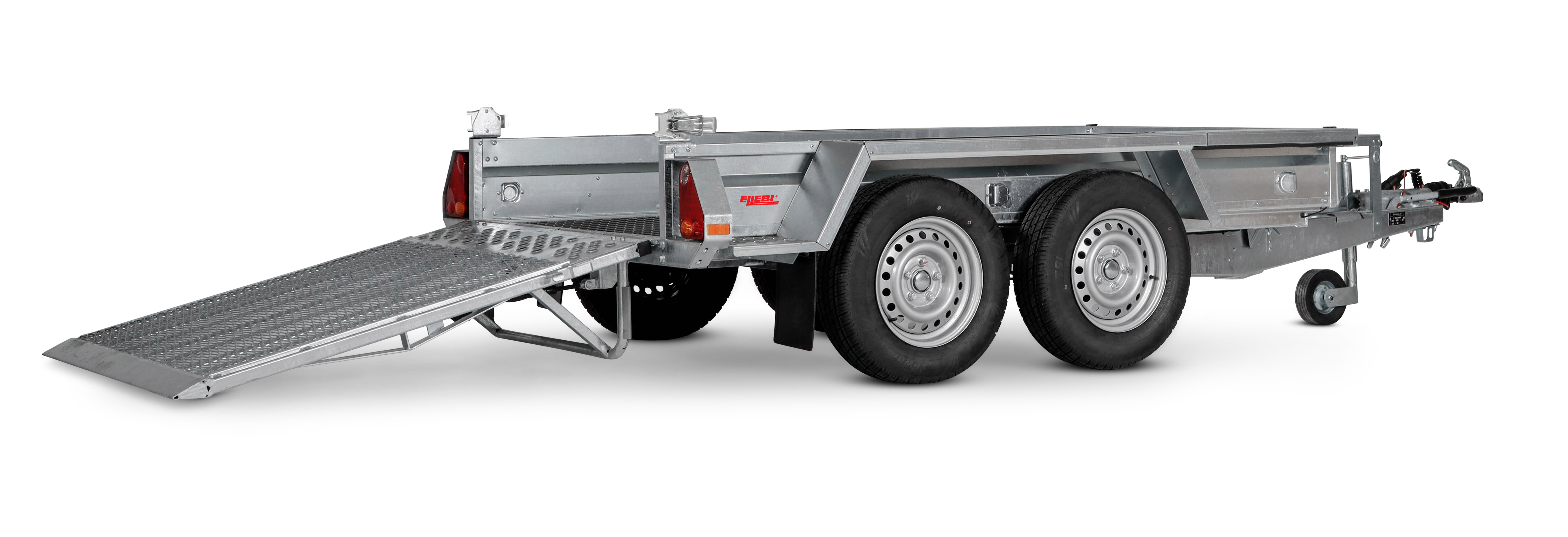

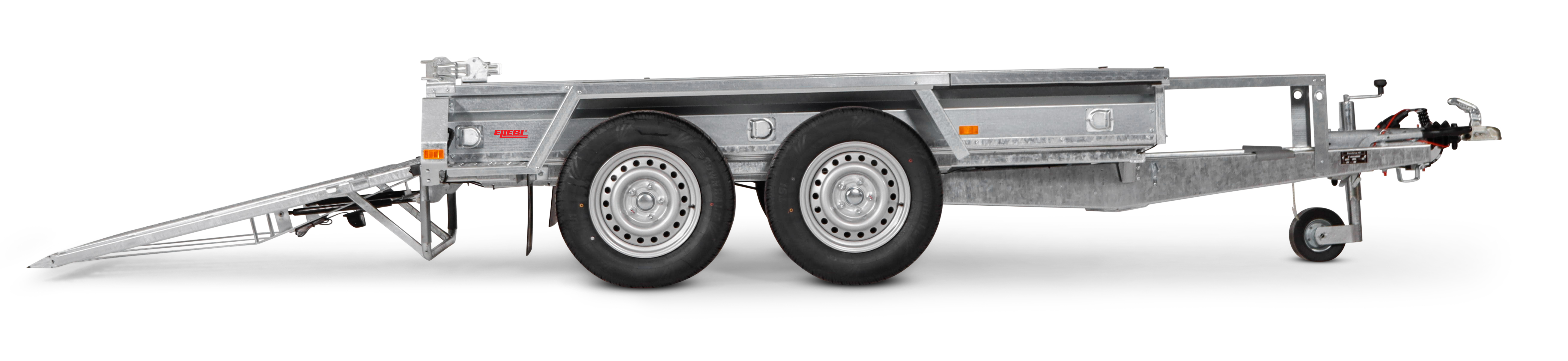

Ramp 1 x (1,25x1,43m)
Winch No
Brakes Yes
Number of axels 2
Tyre dimension 195/70R14
No of wheelbolts 5
Rim type Steel
Mudguards Standable
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 4
Premounted cover buttons No
Coupling Steel sheet

Useful with

  • Alu X10 195/70R14 (mounted)

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg, mounted on trailer
    Art nr316170M

  • Transparts trailer lock

    Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
    Art nr312519

  • Toolbox kit

    515x220x277mm for serie MT
    Art nr313866

  • Alu X10 195/70R14

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg
    Art nr316170

  • Shock absorber kit

    4 pieces. Up to 2000kg for single axle and 3500kg for boogi axles
    Art nr116088
