Spare wheel holder
Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.

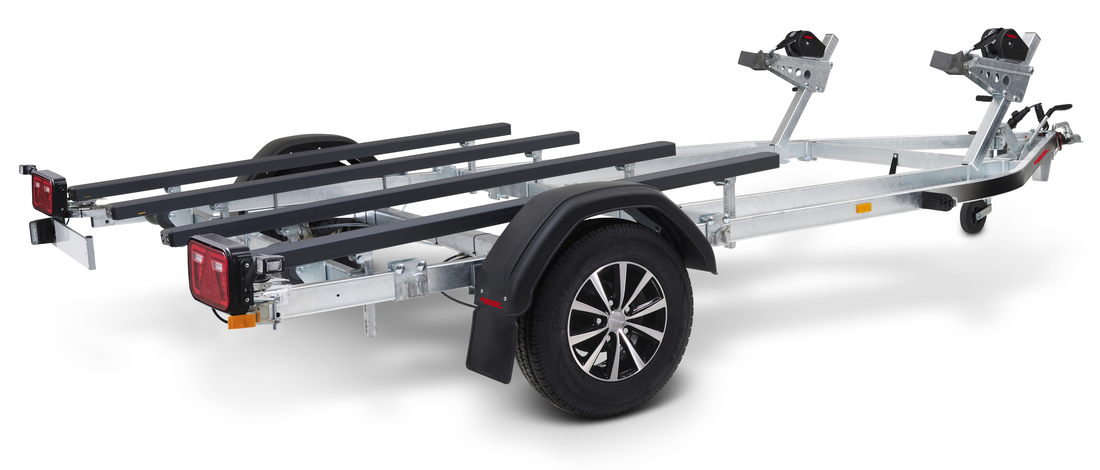

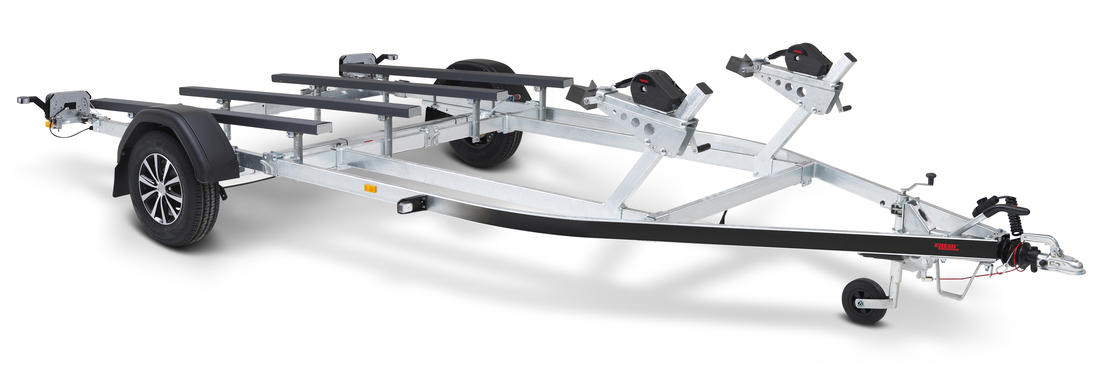

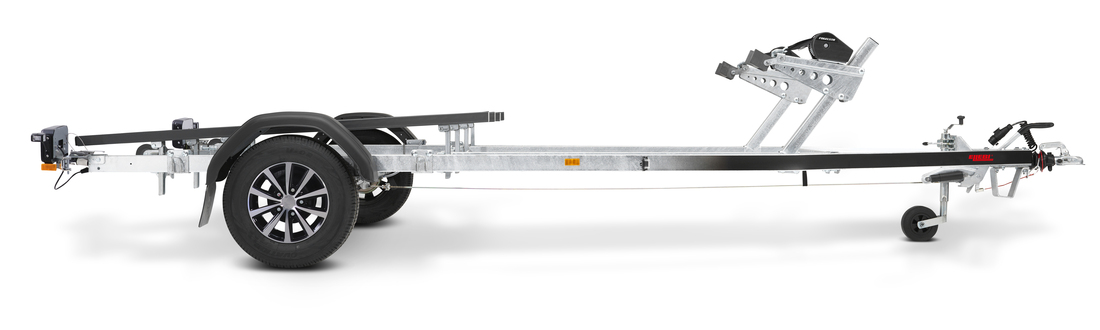

PWC21200BRA
Features and benefits
Unique rails
Unique rails with high sliding possiblities multi adjustable rails for easy adaption to the hull on your boat or jetski
Flexible lashing eyes
Keel roller
Adjustable height
V-shaped chassi
A V-shaped chassi gives you better driving capabilities and better stability when driving your trailer.
Fully protected premium winch
Premium winch with cover to protect the belt from weather exposure and also reducing the risk of chrusching damages.
Specifications
| PWC21200BRA | |
| Article number | 317269 |
| Gross weight (kg) ? | 1200 |
| Load (kg) ? | 890 |
| Unladen weight (kg) | 310 |
| Ext dimensions (cm) ? | 543x255 |
| Max boat lenght (m) | 3.8 |
| Max boat lenght (ft) | 13 |
| Loading system | Rails |
| Keel rolls | 2 |
| Adjustable Axle | Yes |
| Winch | Manual |
| Light panel model | Seperated LED |
| Brakes | Yes |
| Number of axels | 1 |
| Tyre dimension | 175R13C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| External hooks | 6 |
| Fully covered mudguards | No |
| Mudguards | Non standable |
| Jockey wheel | Yes |
Useful with
Alu X10 175R13C
Wheel on 10 spoke black/silver aluminium rim, 5-hole, 175R13C, 730kgArt nr 316173
Winch DL1402
With black cover & strap 7500mm for maximum tensile weight 635kg
Spare parts
Wheel
175 R13C8 5-holes, 730kgArt nr 104278
