Wheel alu rim
155/R13", 4 holes, 500kg, with black aluminium rim
| Art nr | 108847 |
161000B CX

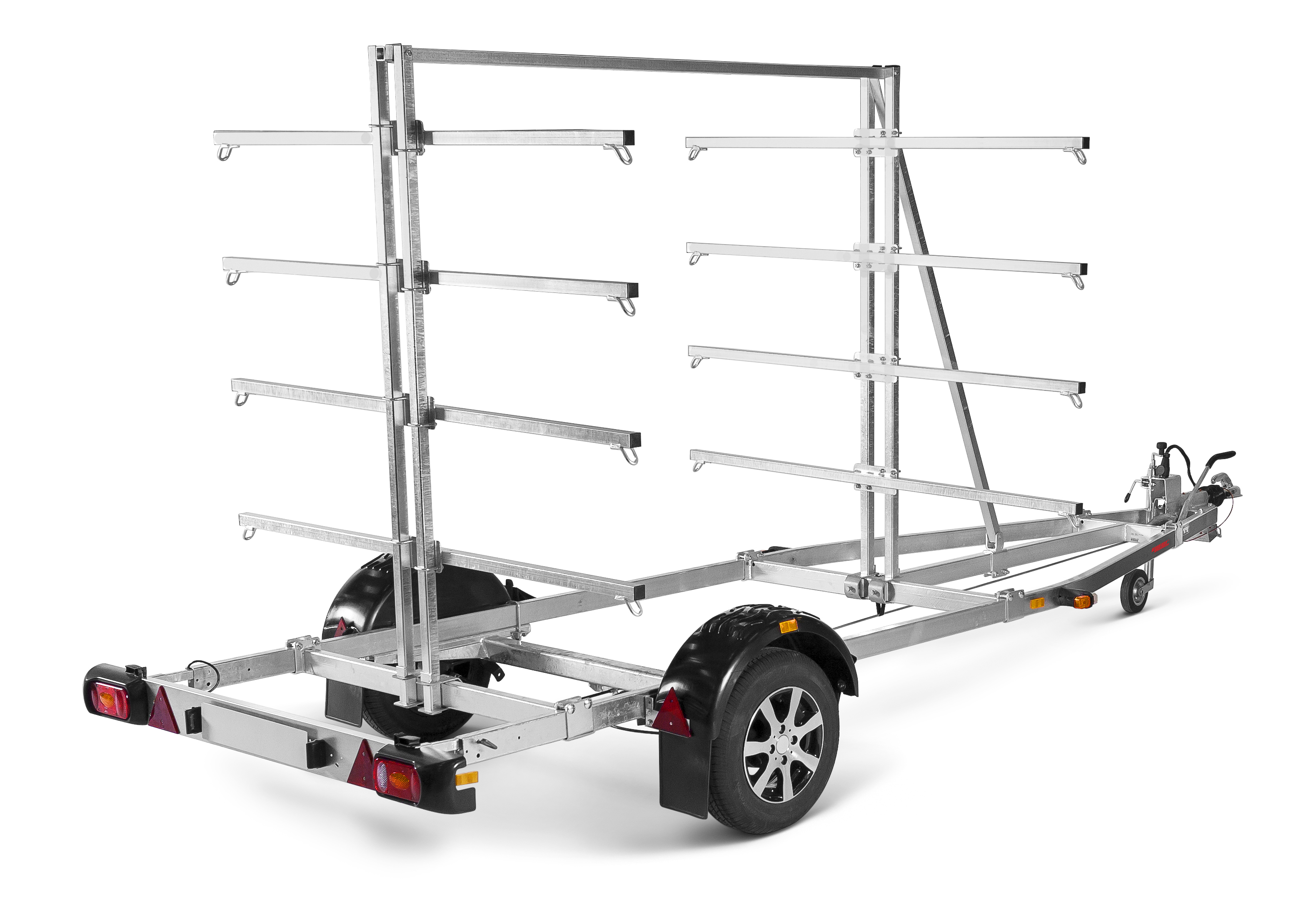

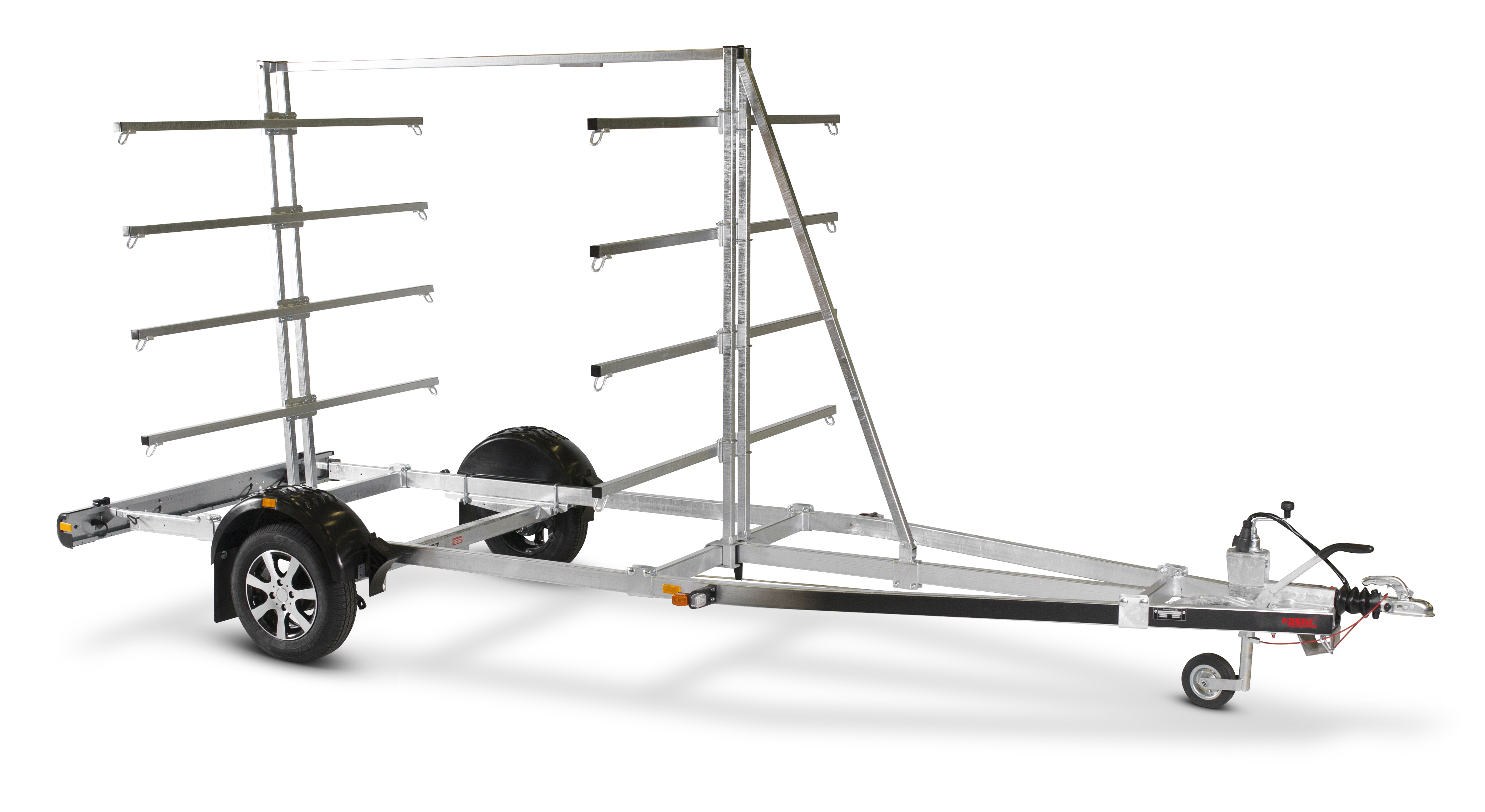

With a canoe/kayak trailer, you are able to transport up to 16 kayaks or 8 canoes. The stand is easy adjustable after the size of the kayak or canoe. The V-shaped drawbar enables you to travel safely to your adventures. The total height of the boat trailer when the stand for canoes is mounted are 240 cm. The stand itself has following dimensions, hight 200cm, length 199cm, width 191 cm, loading length 344cm and loading width per side 85 cm. Images are for illustrative purposes only and may show optional equipment.
Features and benefits
Cables protected
Closed V-shape drawbar for protection of cables
Stainless steel brake wires
With a trailer with brakes, safety is higher and the braking distance is shorter.
Quick-release light ramp
Easy removable light ramp with quick connect.
Waterproof wheel bearings
Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.
Canoe/Kayak loading system
Room for up to 8 canoes or 16 kayaks
Galvanized chassis
Extends the life time for your trailer.
Adjustable axles
By changing the wheelbase you can share the weight in an optimal way.
Specifications
| 161000B CX | |
| Article number | 311948 |
| Gross weight (kg) ? | 1000 |
| Load (kg) ? | 760 |
| Unladen weight (kg) | 240 |
| Ext dimensions (cm) ? | 544x191 |
| Max boat lenght (m) | 4.8 |
| Max boat lenght (ft) | 16 |
| Loading system | Conoe/Kajak |
| Adjustable Axle | Yes |
| Light panel model | Ramp |
| Brakes | Yes |
| Number of axels | 1 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Fully covered mudguards | Yes |
| Mudguards | Standable |
| Jockey wheel | Yes |
