160750UB CX

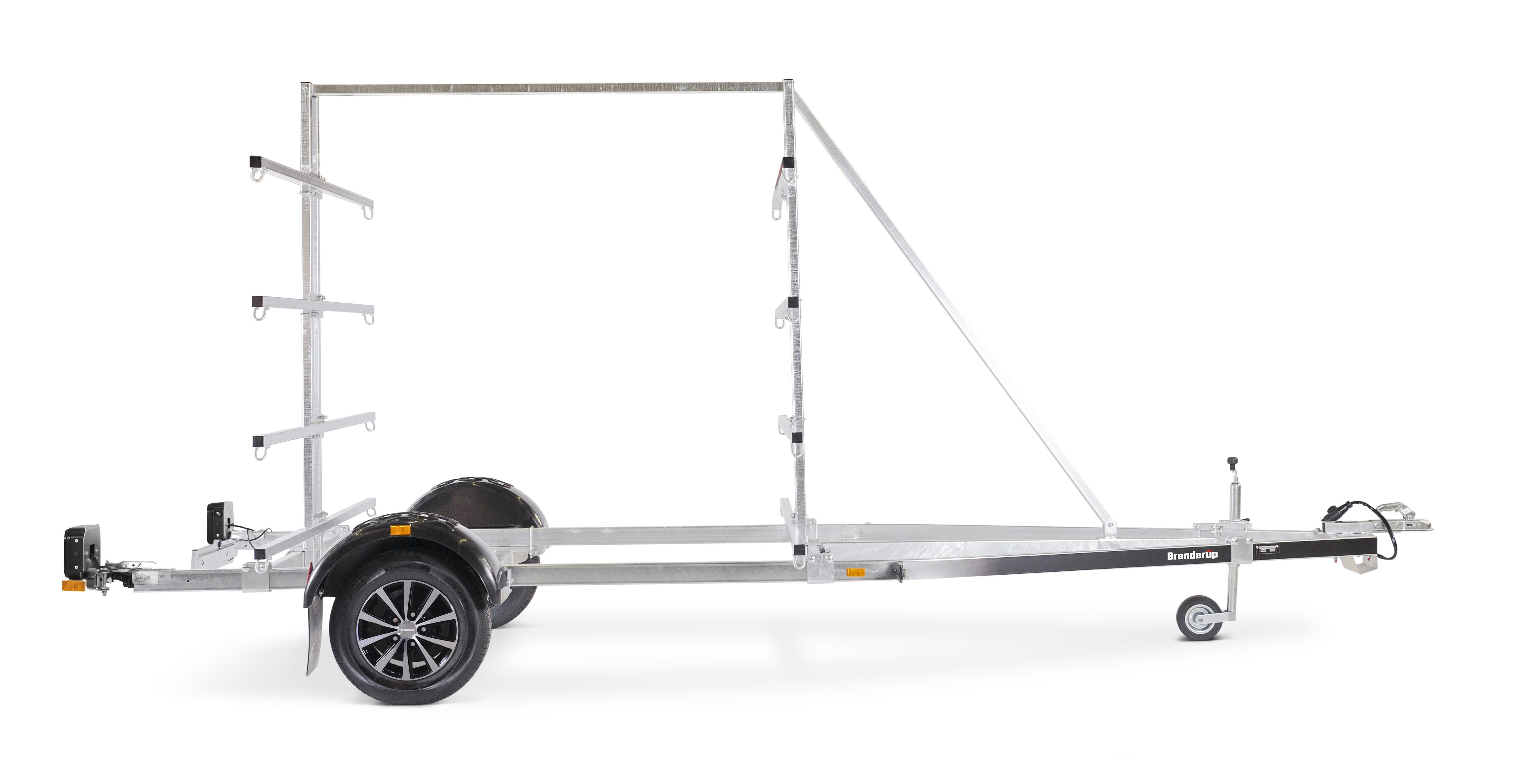

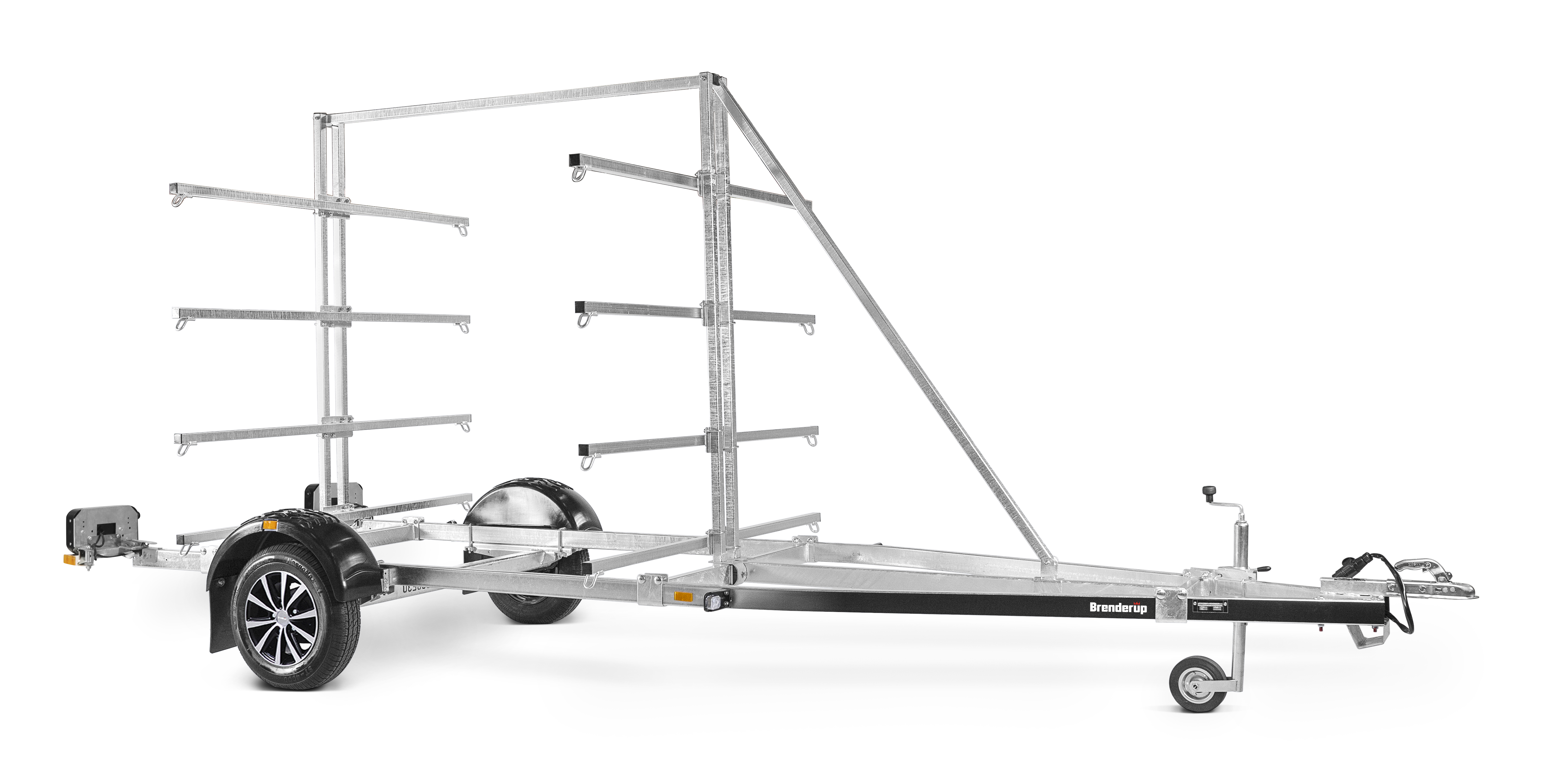

With a canoe/kayak trailer, you are able to transport up to 16 kayaks or 8 canoes. The stand is easy adjustable after the size of the kayak or canoe. The V-shaped drawbar enables you to travel safely to your adventures. The total height of the boat trailer when the stand for canoes is mounted are 240 cm. The stand itself has following dimensions, hight 200cm, length 199cm, width 191 cm, loading length 344cm and loading width per side 85 cm. Images are for illustrative purposes only and may show optional equipment.
Features and benefits
Waterproof wheel bearings
Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.
Standable fully protected mudguards
Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.

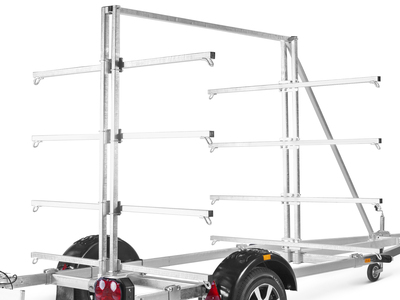

Canoe/Kayak loading system
Room for up to 8 canoes or 16 kayaks
Galvanized chassis
Extends the life time for your trailer.
Adjustable axles
By changing the wheelbase you can share the weight in an optimal way.
Specifications
| 160750UB CX | |
| Article number | 317340 |
| Gross weight (kg) ? | 750 |
| Load (kg) ? | 540 |
| Unladen weight (kg) | 210 |
| Ext dimensions (cm) ? | 537x191x240 |
| Max boat lenght (m) | 4.8 |
| Max boat lenght (ft) | 16 |
| Adjustable Axle | Yes |
| Light panel model | Seperated LED |
| Brakes | No |
| Number of axels | 1 |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Plug connection type ? | Spiral |
| Adaptercable | 13 |
| Fully covered mudguards | Yes |
| Mudguards | Standable |
| Jockey wheel | Yes |
