160650UB CX

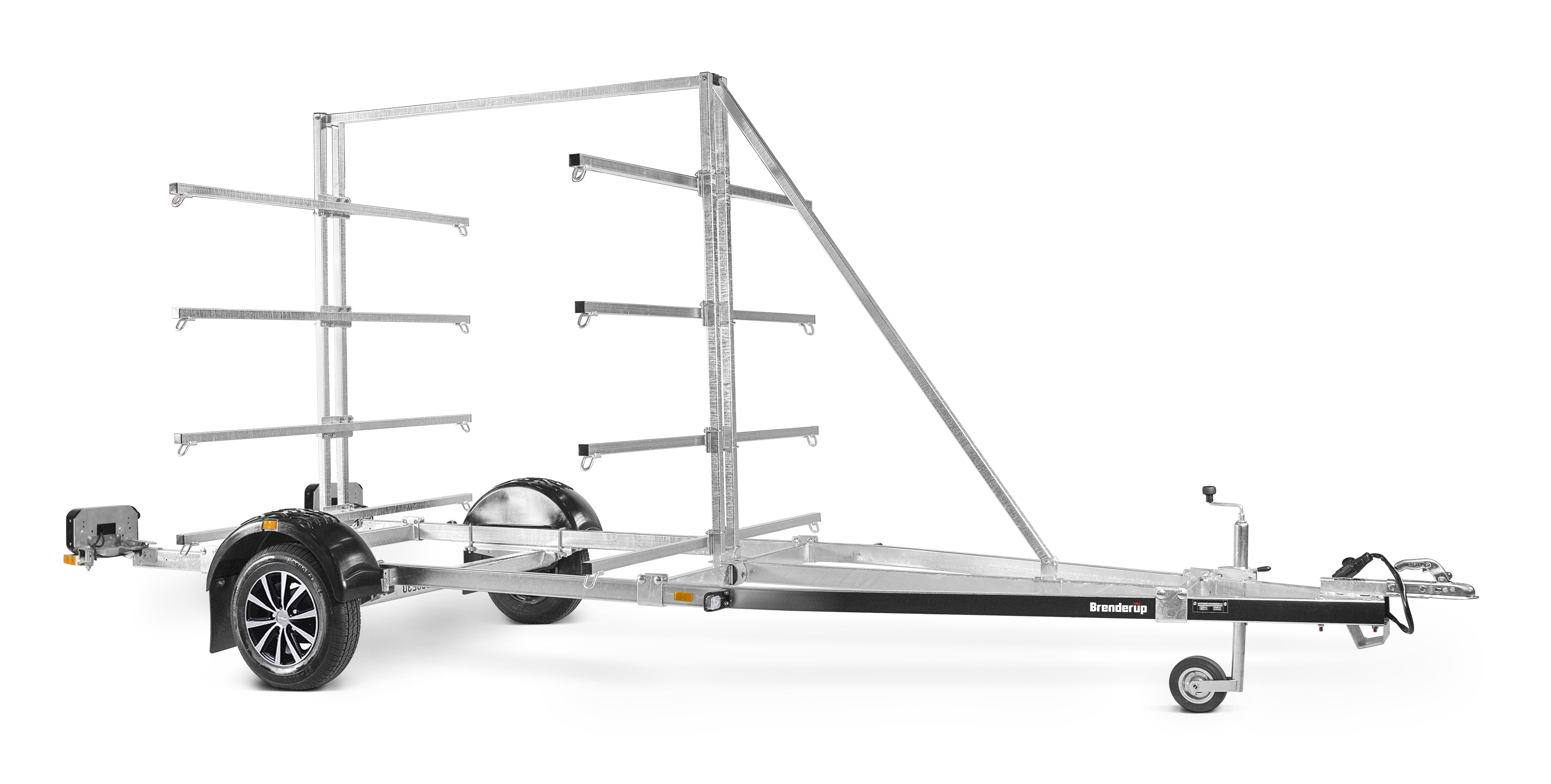

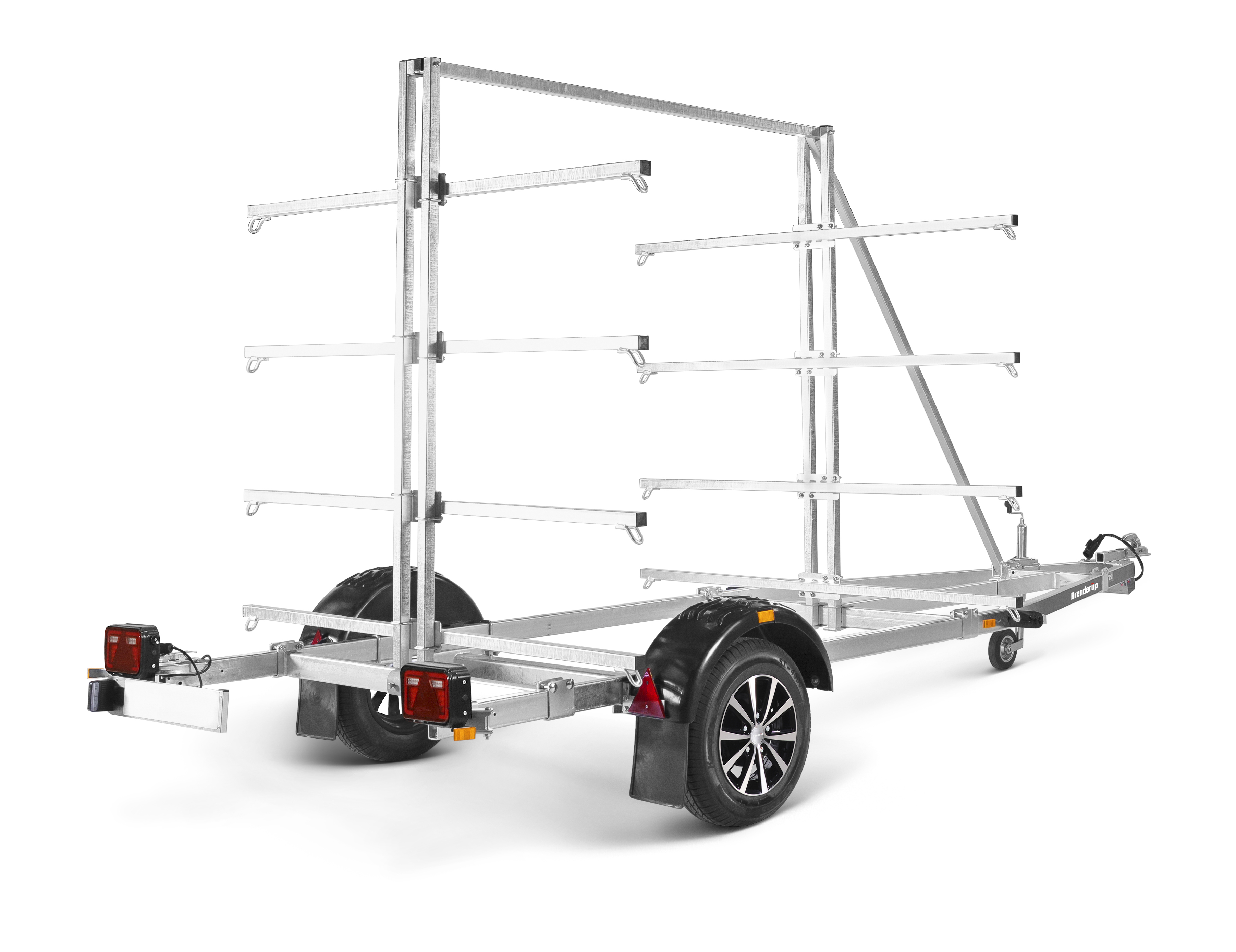

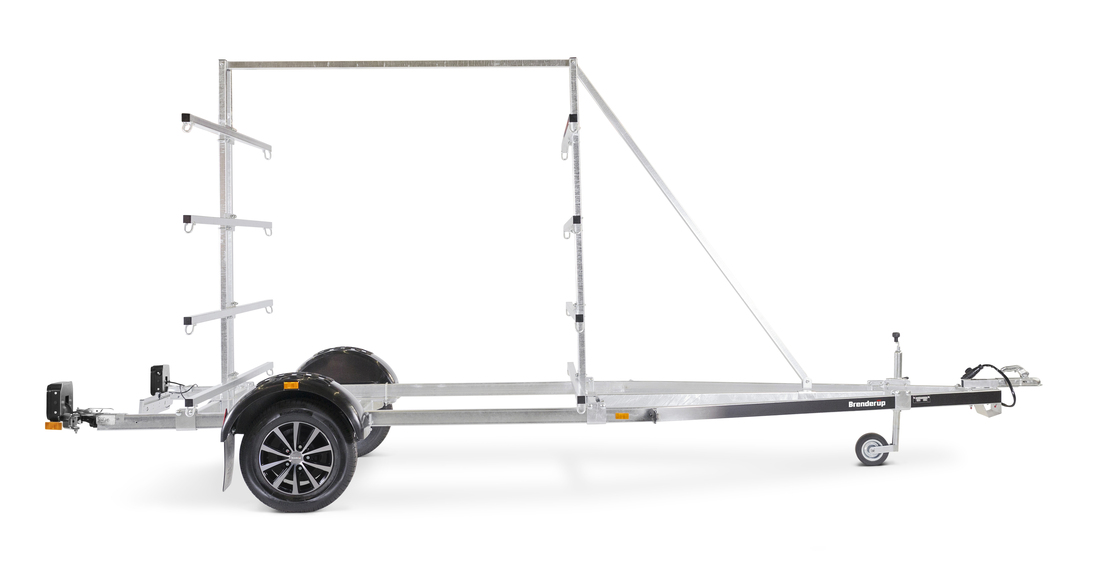

With a canoe/kayak trailer, you are able to transport up to 16 kayaks or 8 canoes. The stand is easy adjustable after the size of the kayak or canoe. The V-shaped drawbar enables you to travel safely to your adventures. The total height of the boat trailer when the stand for canoes is mounted are 240 cm. The stand itself has following dimensions, hight 200cm, length 199cm, width 191 cm, loading length 344cm and loading width per side 85 cm. Images are for illustrative purposes only and may show optional equipment.

Features and benefits

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Standable fully protected mudguards

Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.

Canoe/Kayak loading system

Room for up to 8 canoes or 16 kayaks

Galvanized chassis

Extends the life time for your trailer.

Adjustable axles

By changing the wheelbase you can share the weight in an optimal way.

Specifications Accessories Features and benefits

Specifications

160650UB CX
Article number 317341
Gross weight (kg) ? 650
Load (kg) ? 445
Unladen weight (kg) 205
Ext dimensions (cm) ? 537x191x240
Max boat lenght (m) 4.8
Max boat lenght (ft) 16
Adjustable Axle Yes
Light panel model Seperated LED
Brakes No
Number of axels 1
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Spiral
Adaptercable 13
Fully covered mudguards Yes
Mudguards Standable
Jockey wheel Yes

Useful with

  • Wheel alu rim

    155/R13", 4 holes, 500kg, with black aluminium rim
    Art nr108847

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069
