TT5325ATB3500HC
- Electric hydraulic tilt
- Welded and hot-dip galvanized chassis with full steel platform
- ightweight honeycomb floor
Features and benefits

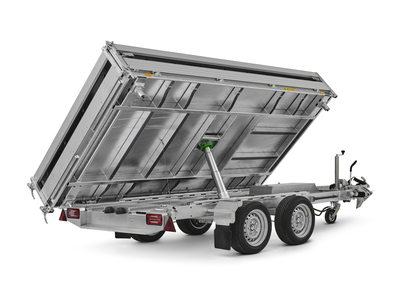

Robust chassis
Welded hot dipped galvanized full frame steel chassis as standard

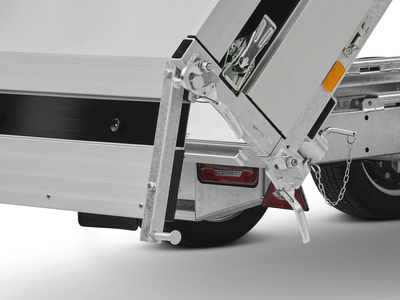

Back panel as spreader
Back panel kan be used as a spreader
Integrated ramp storage
Smart integrated ramp storage that makes it easy to use ramps when loading vehicles and machines. The ramp is stored easily accessible behind the light bar for quick and easy handling.
Prepared for wireless-and Bluetooth remote
The trailer is prepared for wireless remote and Bluetooth (an app on your phone) to control the electric tipping.
Honeycomb floor
Equipped with a durable and robust lightweight honeycomb floor for optimal load capacity. The edges are covered with protective plates for extra durability and to prevent wear during loading and unloading.
Refined side tipping angle
Refined side tipping angle to 42 degrees, resulting in faster and smoother unloading of material.
Optimized tipping angle
Optimized tipping angle to 50 degrees, resulting in faster and smoother unloading of material.
Tempo 100
Tempo 100 available as upgrade. Speed regulation approved when equiped with original accessory shockabsorbers.
Recessed gate lock
Gate locks integrated and protected within the side panel for a sleeker, more streamlined design.
External lashing point
External lashing points located in the bed make it easy to attach straps and secure the load. Smartly positioned for quick access and stable transport.
Electric hydraulic tip
Electric hydraulic tip in 3 directions with a four step hydraulic cylinder as standard with manual emergency pump.
Stop wedges
Stop wedges are included as standard equipment, when storing your trailer for a long period of time the stop wedges permits you block the trailer from moving without using the trailers brakes
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled
Quick release corner posts
Allows toolless easy and quick change of accessories as sideboards, netframes, or extension sides.
Battery included
80Ah battery included as standard.
Equipped with LED lights
Dynamic LED lighting with IP6K9K classicfication adapted for tough conditions.
Automatic jockey wheel
Automatic jockey wheel as standard
Heavy-duty cast-iron lashing eyes
8 heavy-duty pivoting cast-iron lashing eyes are integrated into the platform for easy and secure lashing of the load. Each lashing eye has an approved load capacity of 800 kg, ensuring stable transport without rattling due to the rubber sealing.
Low loading height
With a loading height of only 690 mm on compact 13-inch wheels, loading and unloading is both easier and safer.
Specifications
| TT5325ATB3500HC | |
| Article number | 317628 |
| Gross weight (kg) ? | 3500 |
| Load (kg) ? | 2700 |
| Unladen weight (kg) | 800 |
| Int dimensions (cm) ? | 325x180x35 |
| Ext dimensions (cm) ? | 479 |
| Loading height (mm) | 690 |
| Type of sidepanel | Aluminum |
| Foldable back panel | Yes |
| Foldable front panel | Yes |
| Foldable side panels | Yes |
| Tip | Yes |
| Type of tip | Hydraul-electric |
| Tip-protection | Yes |
| Tilt angle backwards | 50 |
| Tilt angle side | 42 |
| Brakes | Yes |
| Number of axels | 2 |
| Tyre dimension | 195/50R13C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Coupling | Steel sheet |
| Jockey wheel | Yes |
| Floor Material | Composit |
| Internal lashing eyes | 8 |
| External hooks | 10 |
| Battery included | Yes |
