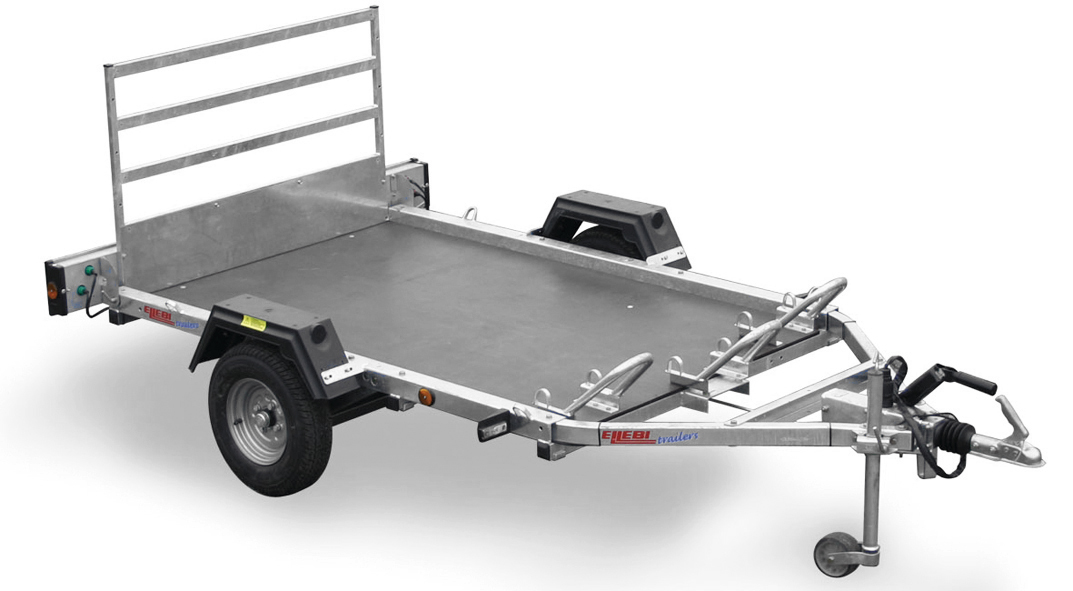

RIM.LB-W 500M

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Flexible options for securing your load

Easy attachment for MC

Ramp for MC

Easy removable ramp

Cables protected

Closed V-shape drawbar for protection of cables

Foldable light ramp

Foldable light ramp for easy loading and unloading of your MC

Specifications Accessories Features and benefits

Specifications

RIM.LB-W 500M
Article number 311286
EAN 5702623112867
Gross weight (kg) ? 600
Load (kg) ? 435
Unladen weight (kg) 165
Int dimensions (cm) ? 200x140x0
Ext dimensions (cm) ? 330x180x120
Loading height (mm) 350
Loading angle (°) 25
Ramp 1 x (1,24x0,8m)
Winch No
Brakes No
Number of axels 1
Tyre dimension 5.00-10C
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Coupling Steel sheet
Plug connection type ? Straight
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 4

Useful with

  • Lashing eye

    Short model 40x40mm with mounting kit, for boat, MC trailer
    Art nr116794

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
