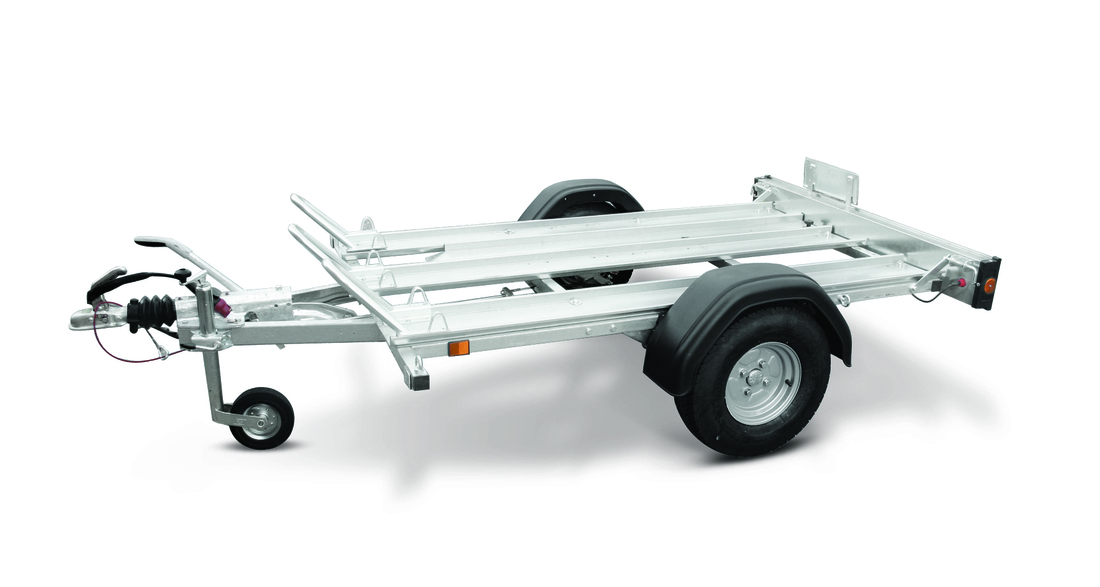

RIM.LB-M 400 SF

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Flexible options for securing your load

Easy attachment for MC

Ramp for MC

Easy removable ramp

Cables protected

Closed V-shape drawbar for protection of cables

Foldable light ramp

Foldable light ramp for easy loading and unloading of your MC

Specifications Accessories Features and benefits

Specifications

RIM.LB-M 400 SF
Article number 311284
EAN 5702623112843
Gross weight (kg) ? 600
Load (kg) ? 315
Unladen weight (kg) 135
Int dimensions (cm) ? 207x113x0
Ext dimensions (cm) ? 29x153x75
Loading height (mm) 705
Loading angle (°) 18
Ramp 1x(1,70x0,2m)
Winch No
Brakes No
Number of axels 1
Tyre dimension 5.00-10C
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Coupling Steel sheet
Plug connection type ? Straight
Adaptercable 7
Jockey wheel Yes
Internal lashing eyes 4
External hooks 4

Useful with

  • Lashing eye

    Short model 40x40mm with mounting kit, for boat, MC trailer
    Art nr116794
  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828
  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
