Transparts trailer lock
Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
| Art nr | 312519 |

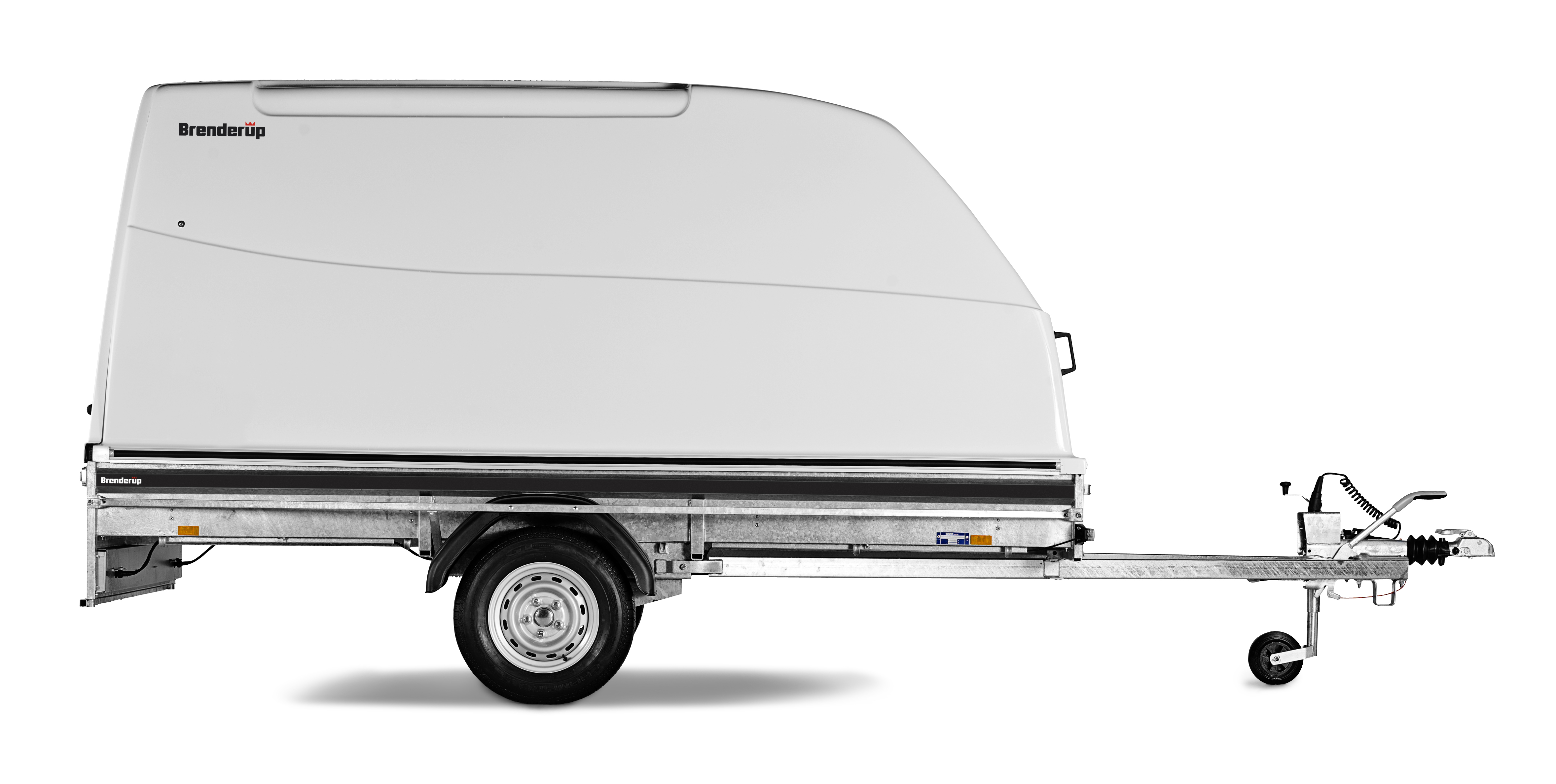

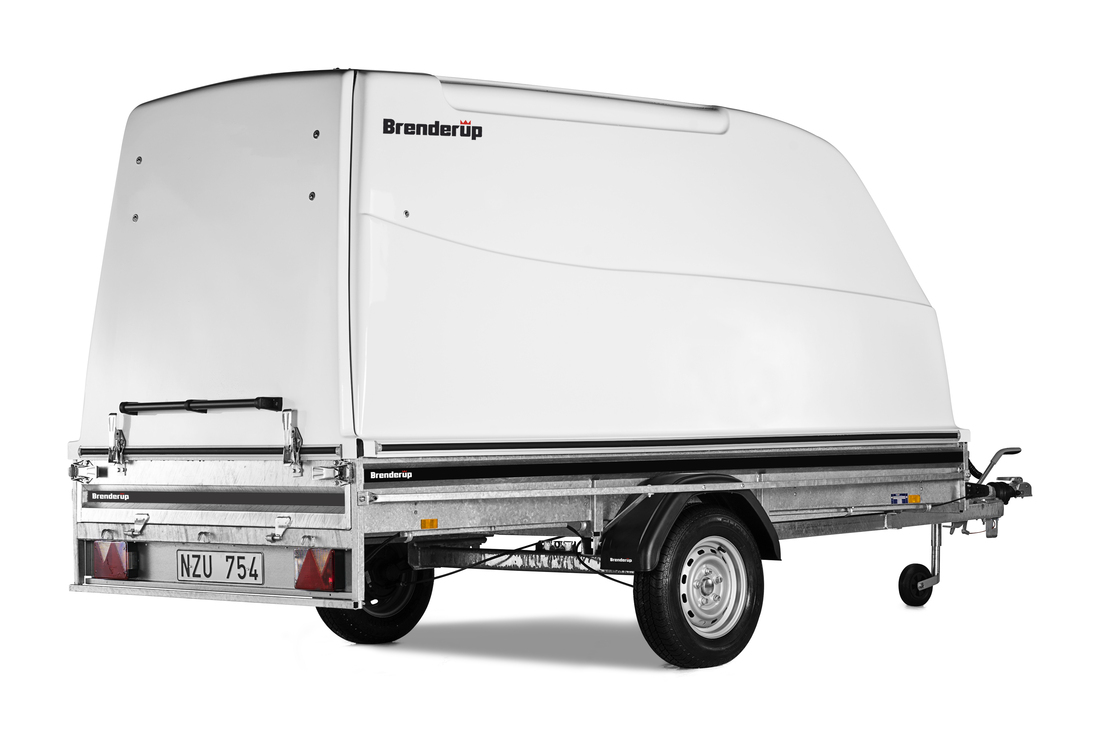

CV1000
Features and benefits
13-pol removable coil cable
Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car
Heavy duty lashing eyes
Internal integrated lashing eyes, inserted in the steel frame

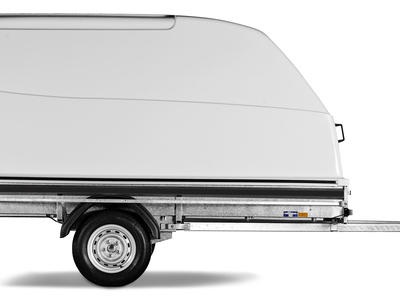

For profiling
Prepared for profiling on the side of the trailer

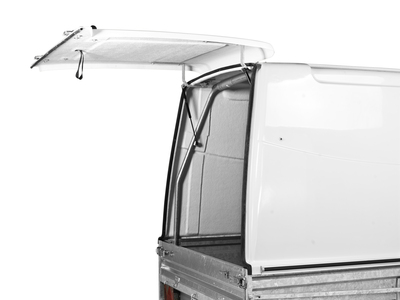

Big latch
Big latch foldes upwards as weather protection when loading goods
Cables protected
Closed V-shape drawbar for protection of cables
Specifications
| CV1000 | |
| Article number | 106836 |
| Gross weight (kg) ? | 1000 |
| Load (kg) ? | 550 |
| Unladen weight (kg) | 450 |
| Int dimensions (cm) ? | 325x152x150 |
| Ext dimensions (cm) ? | 498x198x215 |
| Loading height (mm) | 560 |
| Type of sidepanel | Steel |
| Tip | Yes |
| Type of tip | Manual/Screw/Gasspring |
| Tip-protection | No |
| Brakes | Yes |
| Number of axels | 1 |
| Tyre dimension | 155R13 |
| Rim type | Steel |
| Mudguards | Non standable |
| Coupling | Casted |
| Plug connection type ? | Removeable Spiral |
| Adaptercable | 13 |
| Jockey wheel | Yes |
| Internal lashing eyes | 8 |
Useful with
Alu X10 155/80R13
Wheel on 10 spoke black/silver aluminium rim, 5-hole, 155/80R13, 500kgArt nr 316172
