Expired

7260BD1000

Features and benefits

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

13-pol cable

The trailer is delivered with a modern 13-pol connector.

Internal light

Internal light as standard equipment

Two handles in the front

Two handles in the front for easier handling of the trailer

Specifications Accessories Features and benefits

Specifications

7260BD1000
Article number 313814
Gross weight (kg) ? 1000
Load (kg) ? 588
Unladen weight (kg) 412
Int dimensions (cm) ? 260x130x150
Ext dimensions (cm) ? 405x179x214
Loading height (mm) 620
Type of sidepanel Plywood
Loading type Door
Brakes Yes
Number of axels 1
Coupling Steel sheet
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 6
Fasterning rails No

Accessories

  • CD260BD1000

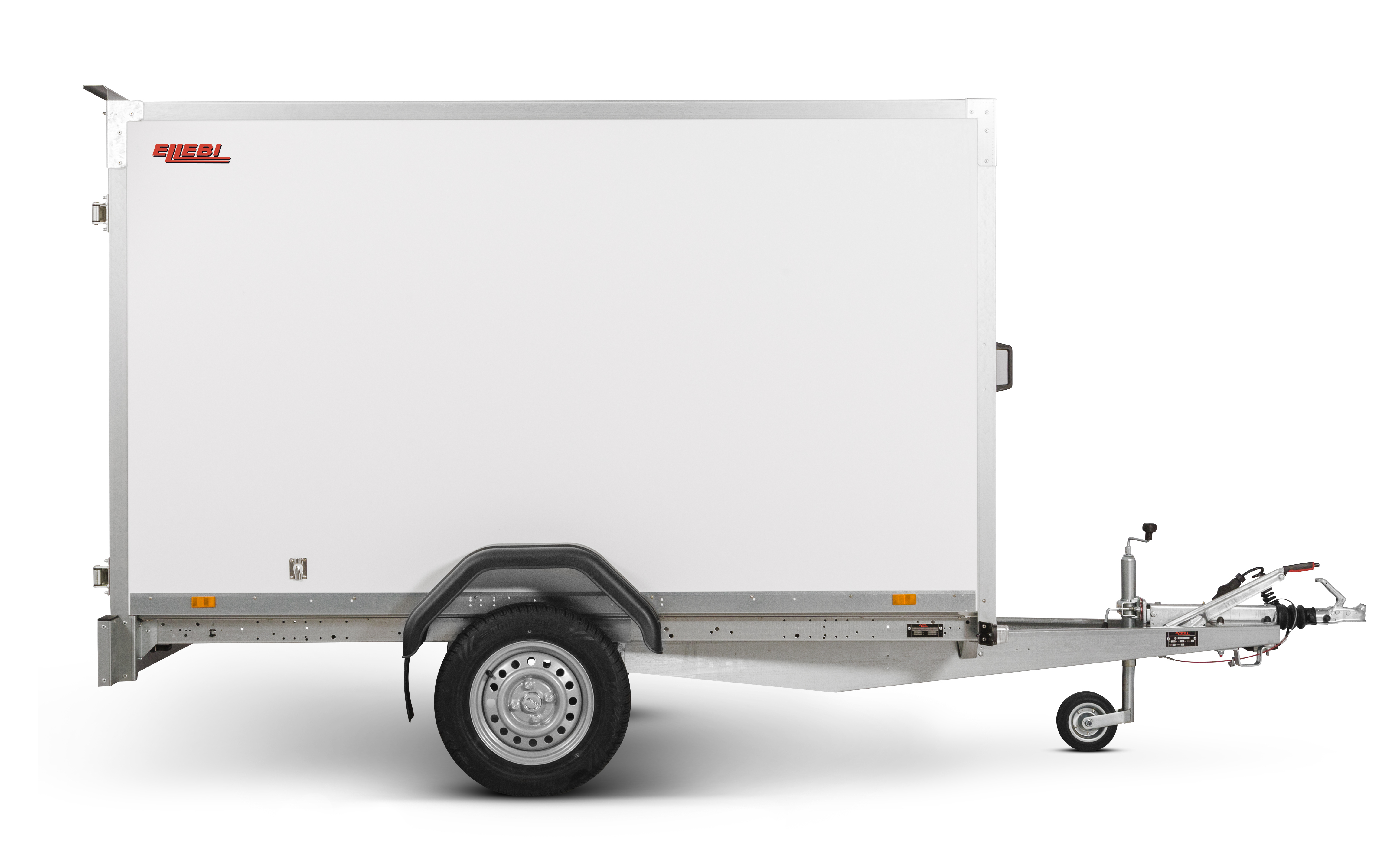

    The CargoDynamic™serietrailers are designed for professional users and electric cars who want a lightweight trailer able to cover and protect their goods. The trailer offers a high load capacity. The design of the trailer give the possibility of full profiling on all sides of the trailer, fully utilizing the trailers full advertising potential. Built with a modern low-weight, impact resistiance, non organic and waterproof honeycomb material. With a variety of sizes available equipped with doors or ramp, the CargoDynamic™is a highly flexible trailer. Images are for illustrative purposes only and may show optional equipment.
    Art nr315185

Useful with

  • Shock absorber kit

    2 pieces. Up to 1500kg for single axle and 3000kg for boogi axles
    Art nr115493

  • Side door (mount.)

    Kit to make door on side. The door are made of the material that is removed from the side. Size 600x1600mm for 7000, CD with height 1850mm. Mounted on trailer
    Art nr304895M

  • Side door

    Kit to make door on side. The door are made of the material that is removed from the side. Size 550x1100mm for 7000, CD with height 1500mm.
    Art nr113493

  • Brake lamp

    High mounted kit on S-7000
    Art nr309275

  • Side door (mount.)

    Kit to make door on side. The door are made of the material that is removed from the side. Size 550x1100mm for 7000, CD with height 1500mm. Mounted on trailer
    Art nr113493M

  • Propstand kit 7000

    Fits series 7000. You also need to order longer door holders (115434) - applies only if you buy support legs for cabinets with doors on S-7000
    Art nr101571
