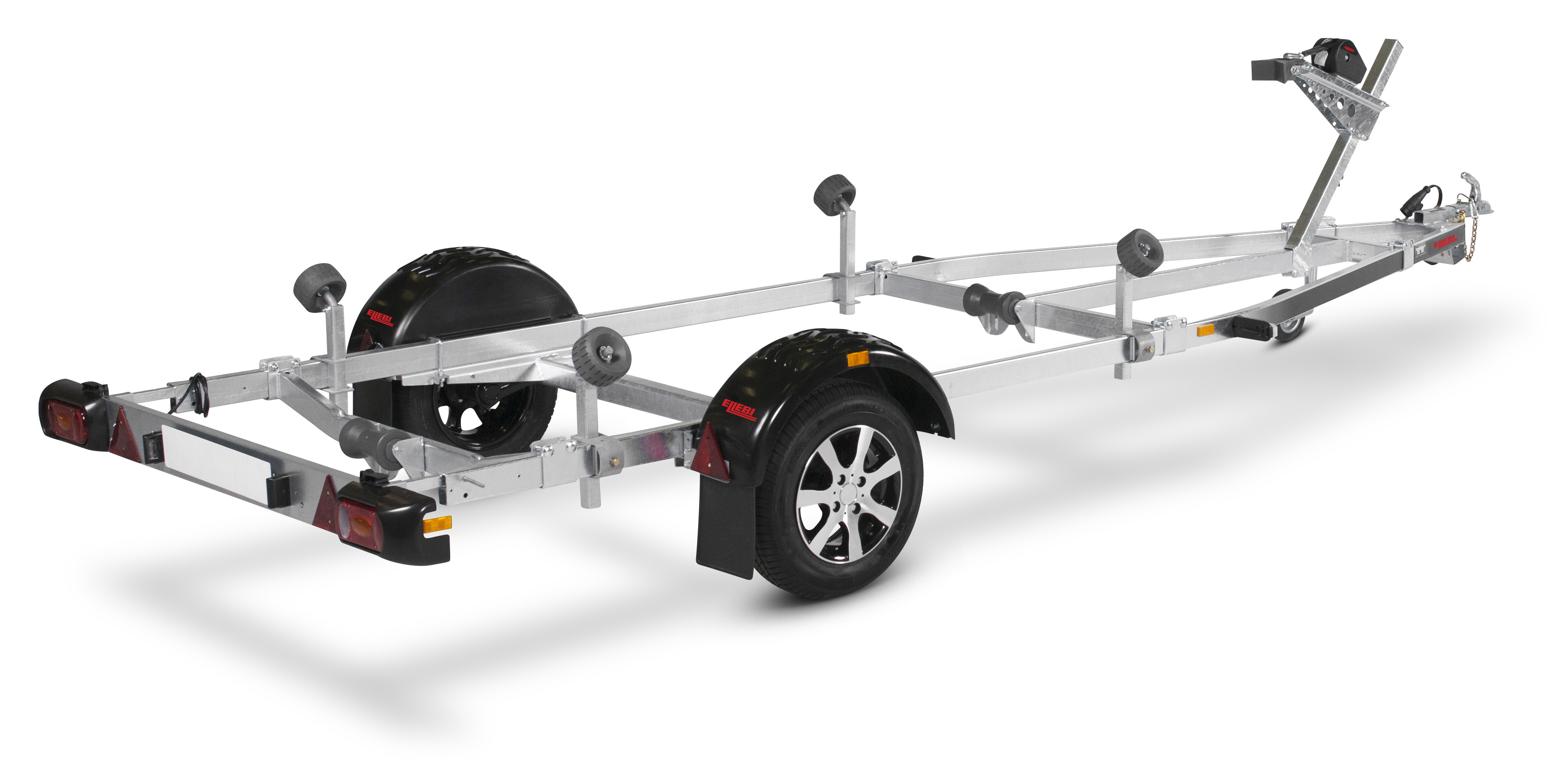

CH160750UBX

Features and benefits

Cables protected

Closed V-shape drawbar for protection of cables

Keel roller cradle

Height adjustable in high quality

Quick-release light ramp

Easy removable light ramp with quick connect.

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Adjustable winch tower

Specifications Accessories Features and benefits

Specifications

CH160750UBX
Article number 312099
Gross weight (kg) ? 750
Load (kg) ? 540
Unladen weight (kg) 210
Ext dimensions (cm) ? 535x191
Loading height (mm) 500
Tip-protection No
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Mudguards Standable
Fully covered mudguards No
Adaptercable 13
Plug connection type ? Straight
Coupling Steel sheet
Max boat lenght (m) 4.8
Max boat lenght (ft) 16
Keel rolls 4
Side rolls 4
Winch No
Lights included Yes
Light panel model Ramp
EAN 5702623120992

Useful with

  • Rope hook

    Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
    Art nr103418

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Lashing eye

    60x40mm for Jetski, with bolt & nut
    Art nr309681

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Square tube clamp

    80x40mm, for bar 40x40mm. U-clamp for mounting side support rolls, boat support plates etc.
    Art nr103400

  • Rope hook

    Long model with bolts, 80x40mm for frame mounting
    Art nr103419

  • Brake wash kit

    Equipment to make it easier to rinse saltwater from the brake drum using a regular garden hose and fresh water. For brake drum 200x50.
    Art nr105181

  • Canoe and kayak set

    Complete for boat trailer 16". The stand has following dimensions, hight 200cm, length 199cm, width 191 cm, loading length 344cm and loading width per side 85 cm.
    Art nr104132

  • Crossbar

    Bended with mounting kit for boat trailers 16/18/20"
    Art nr102410

  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Crossbar

    Straight with mounting kit for boat trailers 16/18/20"
    Art nr102406

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • X-line keel roller kit

    Complete with grey X-line keel roller, width:196mm hole:17 Ø110/70, with clamp.
    Art nr306287

  • Winch DL1402

    With black cover & strap 7500mm for maximum tensile weight 635kg
    Art nr306143

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022

  • Battery box

    Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
    Art nr304613
