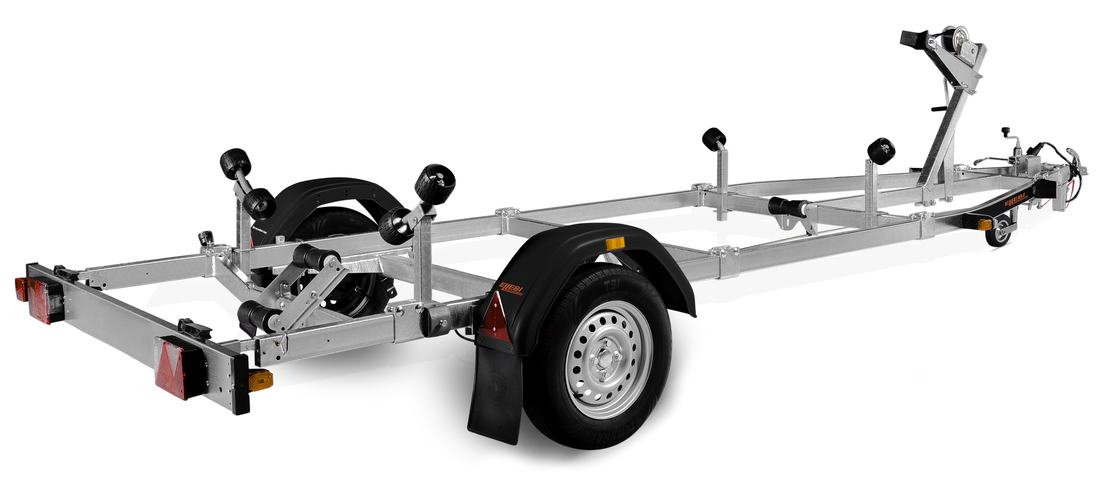

New

160750UBL

Features and benefits

Keel roller cradle

Height adjustable in high quality

Quick-release light ramp

Easy removable light ramp with quick connect.

Multi-adjustable high quality premium rollers

Possible to adjust in height and width.

Adjustable winch tower

Specifications Accessories Features and benefits

Specifications

160750UBL
Article number 313531
Gross weight (kg) ? 750
Load (kg) ? 540
Unladen weight (kg) 210
Ext dimensions (cm) ? 535x191
Loading height (mm) 500
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Fully covered mudguards No
Adaptercable 13
Plug connection type ? Straight
Coupling Steel sheet
Max boat lenght (m) 4.8
Max boat lenght (ft) 16
Loading system Rollers
Keel rolls 3
Side rolls 4
Winch Manual
Lights included Yes
Light panel model Ramp
EAN 5702623135316

Useful with

  • Rope hook

    Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
    Art nr103418

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Lashing eye

    60x40mm for Jetski, with bolt & nut
    Art nr309681

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Rope hook

    Long model with bolts, 80x40mm for frame mounting
    Art nr103419

  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022
