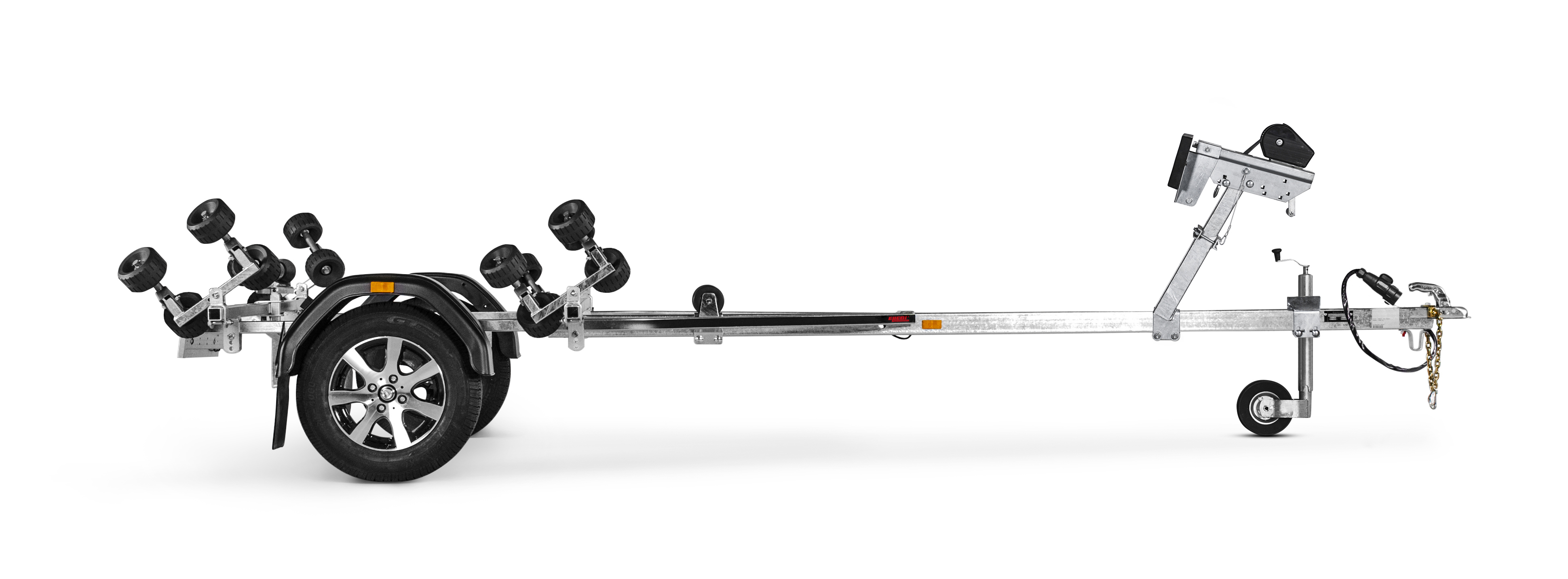

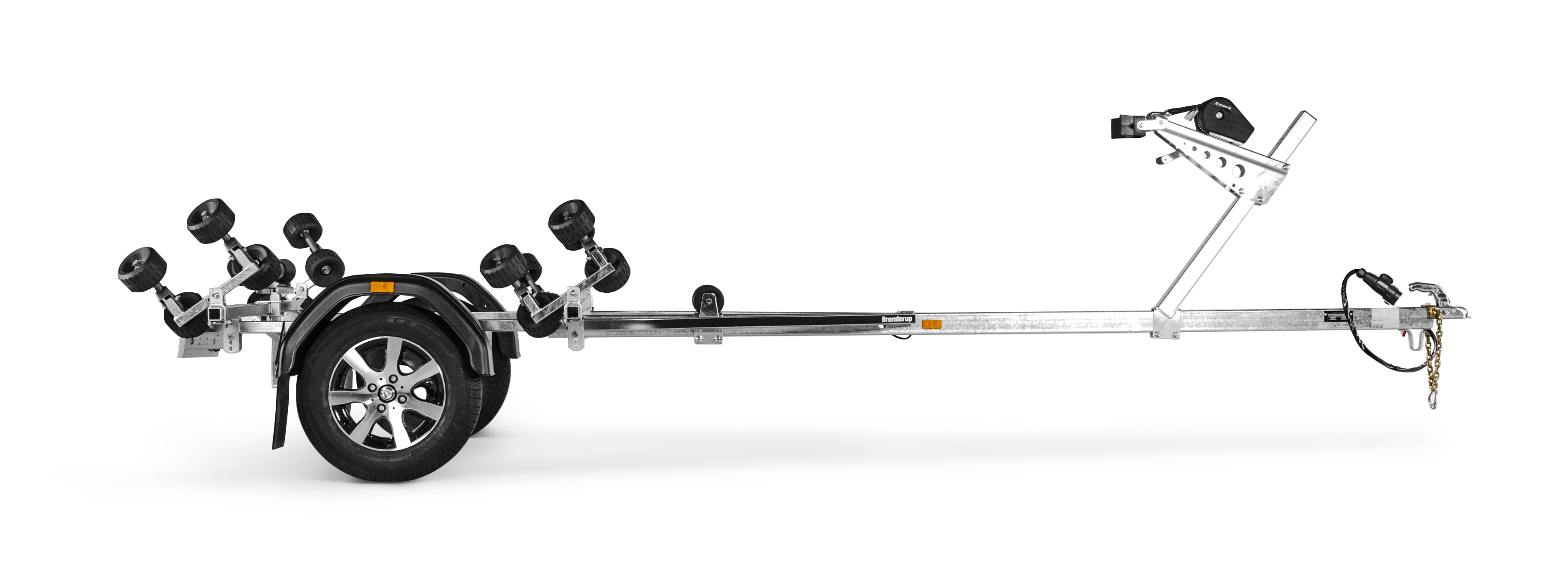

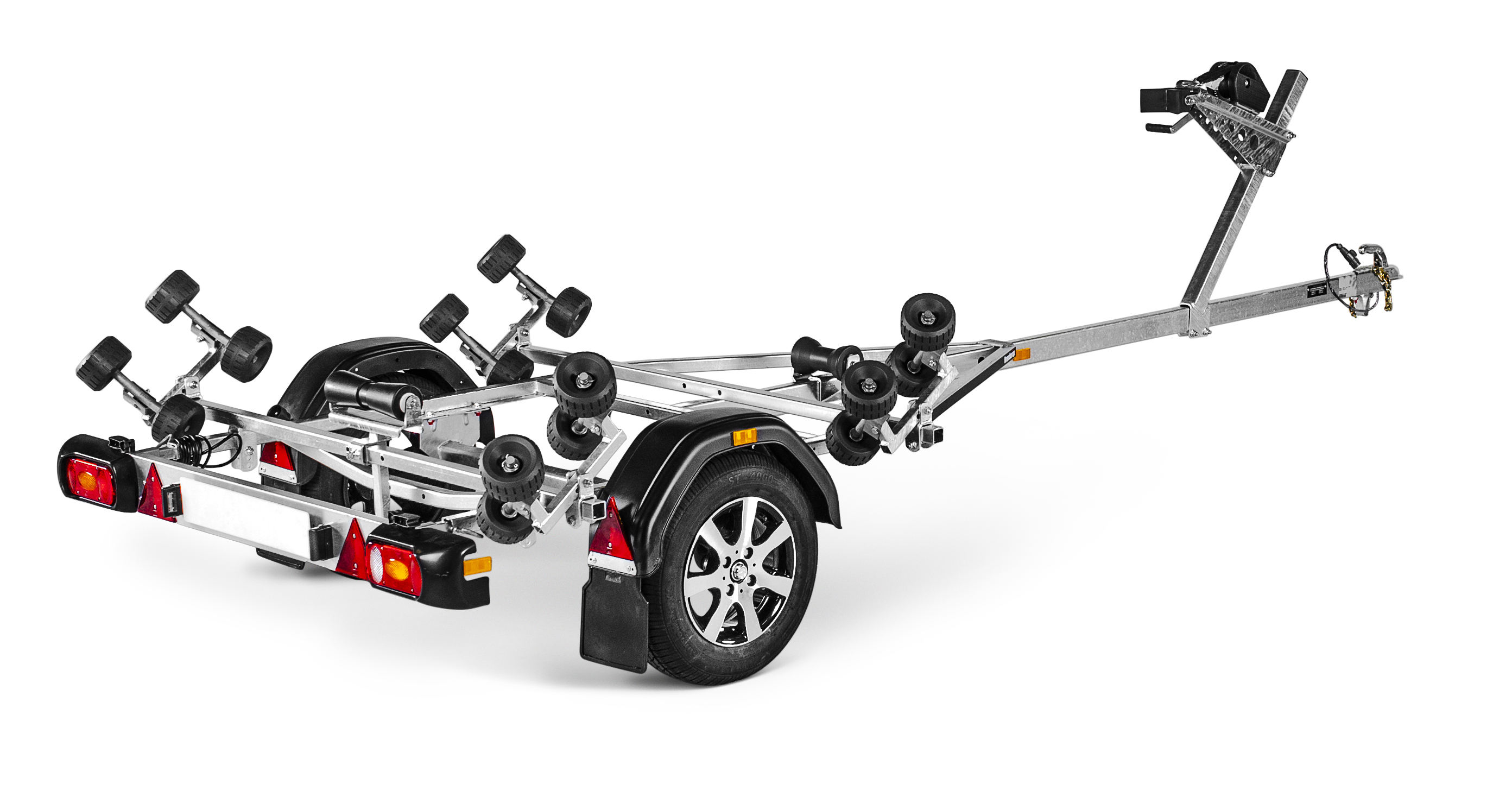

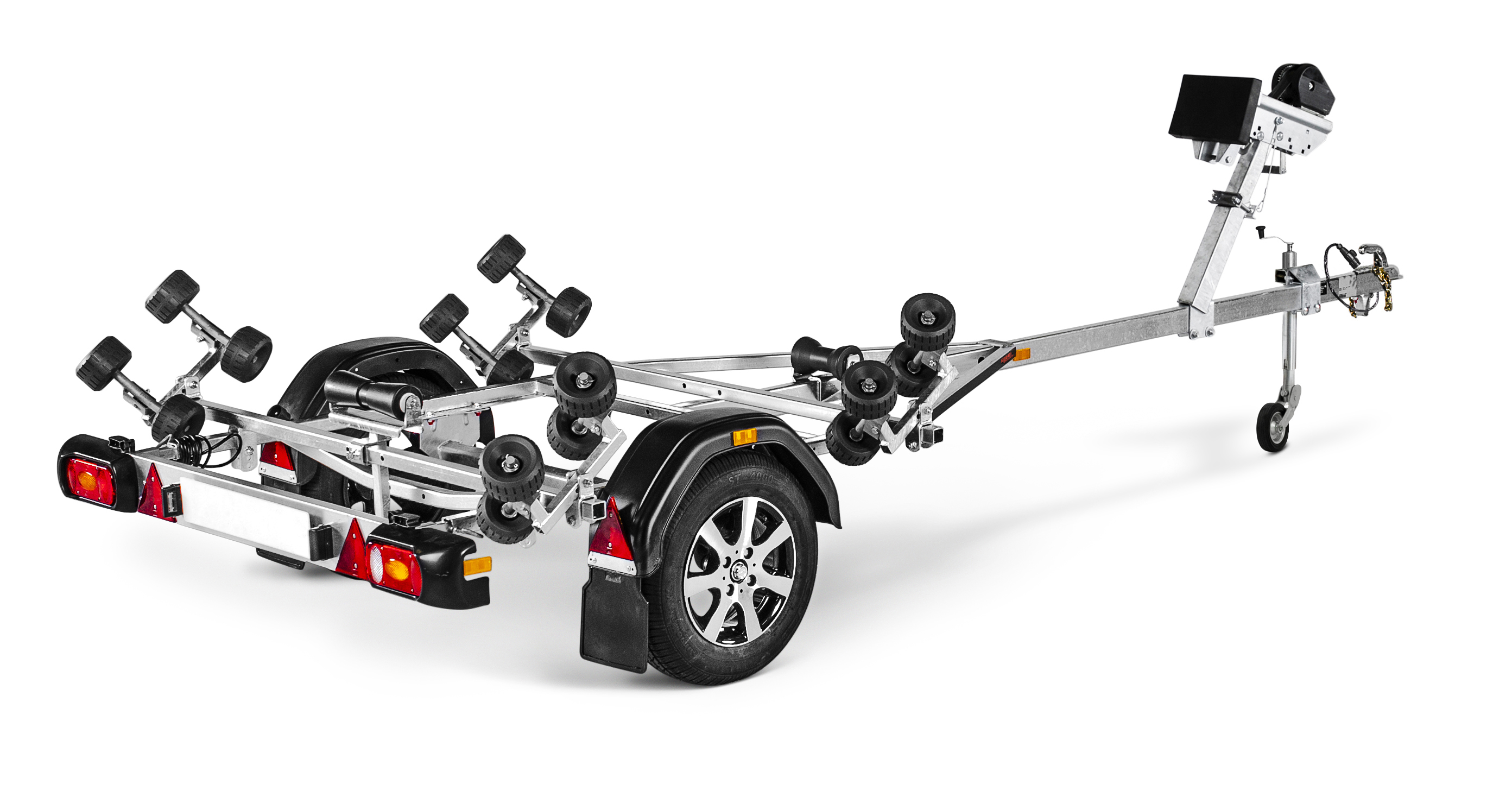

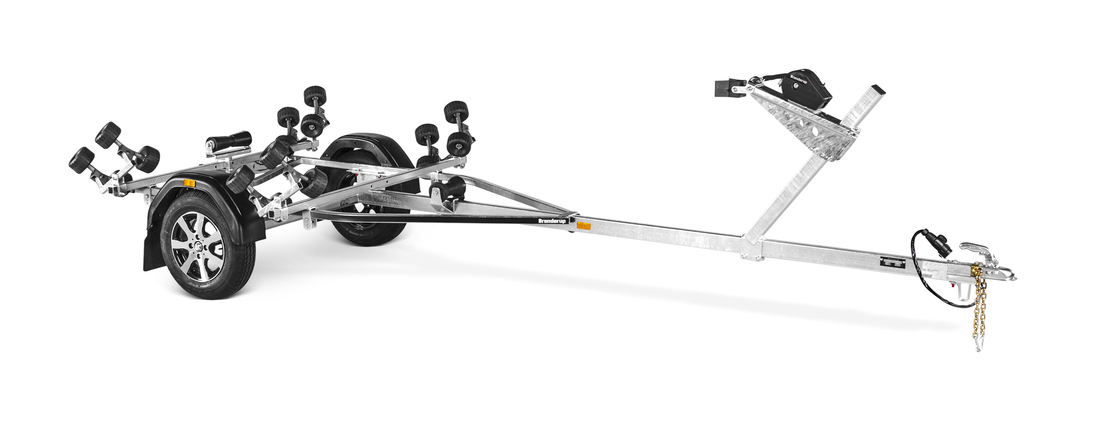

150600UB RBX

Features and benefits

Unique rollers

Keel roller cradle

Height adjustable in high quality

Quick-release light ramp

Easy removable light ramp with quick connect.

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Keel roller

Adjustable height

Standable fully protected mudguards

Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.

Separate fixed lamps

For smooth and easy loading and unloading

Flat nose bow guard

The flat nose bow support on the winch tower give an increased contact surface for even better transport stability of your rubber boat.

Safety wire on winch tower

Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.

Galvanized chassis

Extends the life time for your trailer.

Adjustable axles

By changing the wheelbase you can share the weight in an optimal way.

Specifications Accessories Features and benefits

Specifications

150600UB RBX
Article number 312332
Gross weight (kg) ? 600
Load (kg) ? 475
Unladen weight (kg) 125
Ext dimensions (cm) ? 472x158
Loading height (mm) 500
Tip-protection No
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 135/80R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Fully covered mudguards No
Adaptercable 13
Plug connection type ? Straight
Coupling Steel sheet
Max boat lenght (m) 4.5
Max boat lenght (ft) 15
Loading system Rollers
Keel rolls 2
Side rolls 16
Winch Manual
Lights included Yes
Light panel model Ramp
EAN 5702623123320

Useful with

  • Rope hook

    Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
    Art nr103418

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Rope hook

    Long model with bolts, 80x40mm for frame mounting
    Art nr103419

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Winch DL1402

    With black cover & strap 7500mm for maximum tensile weight 635kg
    Art nr306143

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069
