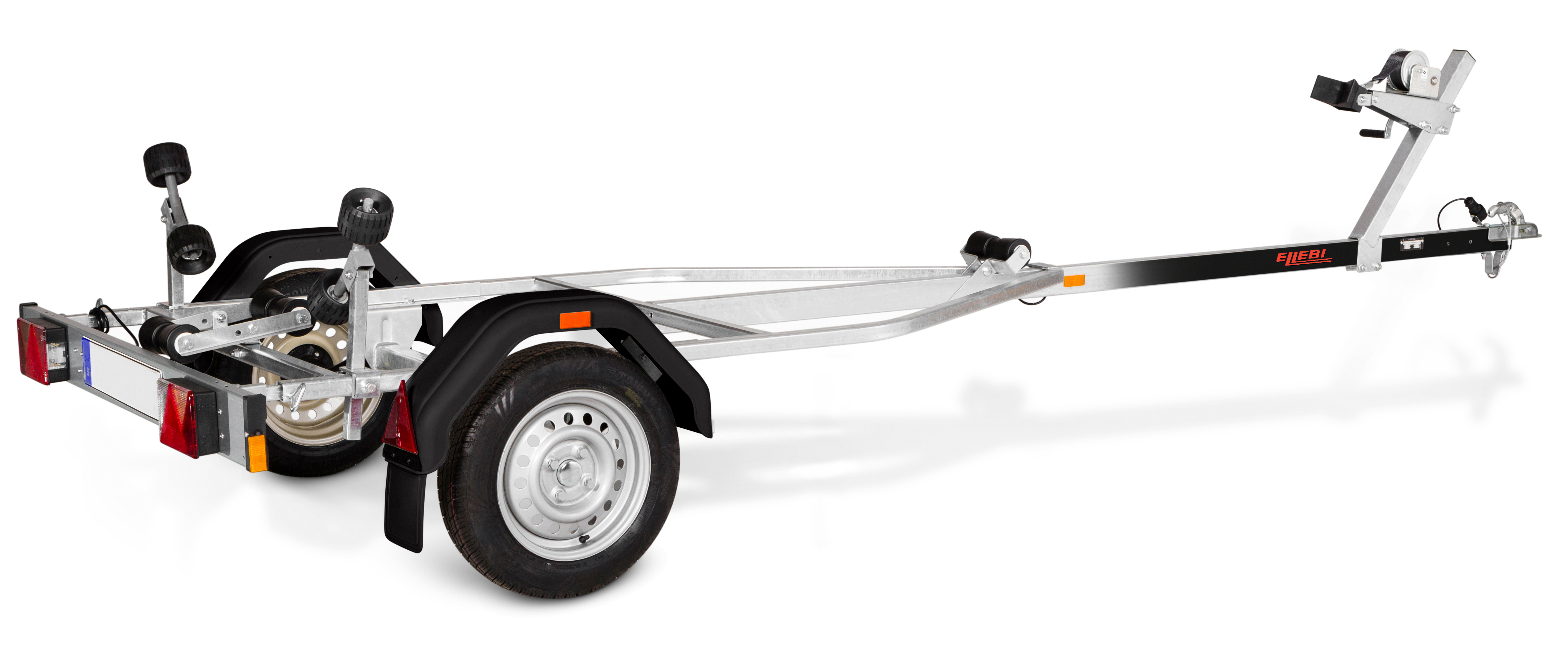

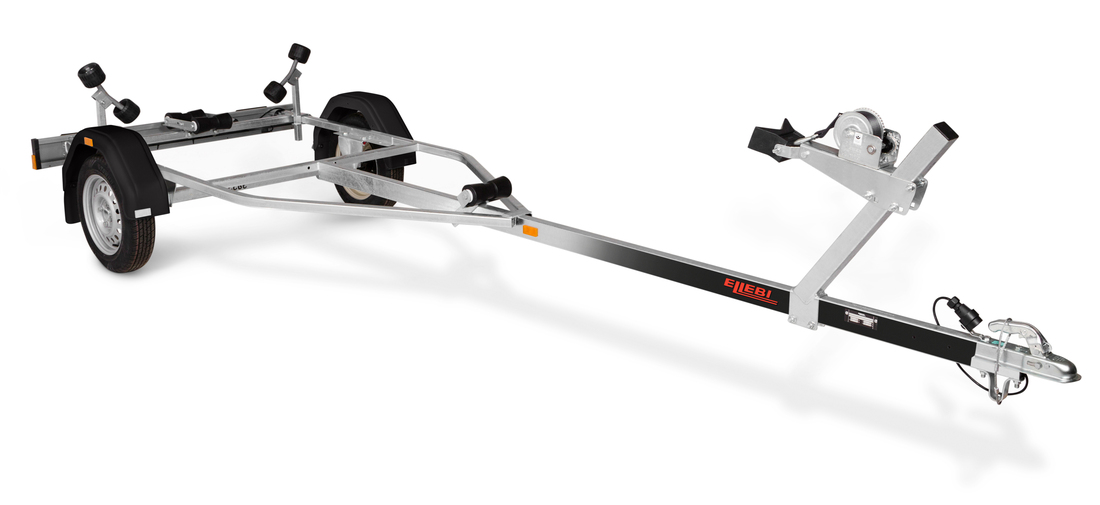

150600UB

Features and benefits

Cables protected

Closed V-shape drawbar for protection of cables

Keel roller cradle

Height adjustable in high quality

Quick-release light ramp

Easy removable light ramp with quick connect.

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Adjustable winch tower

Galvanized chassis

Extends the life time for your trailer.

Adjustable axles

By changing the wheelbase you can share the weight in an optimal way.

Specifications Accessories Features and benefits

Specifications

150600UB
Article number 312097
Gross weight (kg) ? 600
Load (kg) ? 470
Unladen weight (kg) 130
Ext dimensions (cm) ? 455x153
Loading height (mm) 500
Tip-protection No
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 135/80R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Fully covered mudguards No
Adaptercable 13
Plug connection type ? Straight
Coupling Steel sheet
Max boat lenght (m) 4.5
Max boat lenght (ft) 15
Loading system Rollers
Keel rolls 3
Side rolls 4
Winch Manual
Lights included Yes
Light panel model Ramp
EAN 5702623120978

Useful with

  • Rope hook

    Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
    Art nr103418

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Lashing eye

    60x40mm for Jetski, with bolt & nut
    Art nr309681

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Square tube clamp

    80x40mm, for bar 40x40mm. U-clamp for mounting side support rolls, boat support plates etc.
    Art nr103400

  • Rope hook

    Long model with bolts, 80x40mm for frame mounting
    Art nr103419

  • Square tube clamp

    40x40mm, for bar 30x30mm. U-clamp for mounting side support rolls, boat support plates etc.
    Art nr100028

  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Winch DL600 A

    With strap 4600mm, maximum tensile weight 272kg. Mounting Kit 308812
    Art nr308476

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022

  • Battery box

    Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
    Art nr304613

Spare parts
